Seite 1

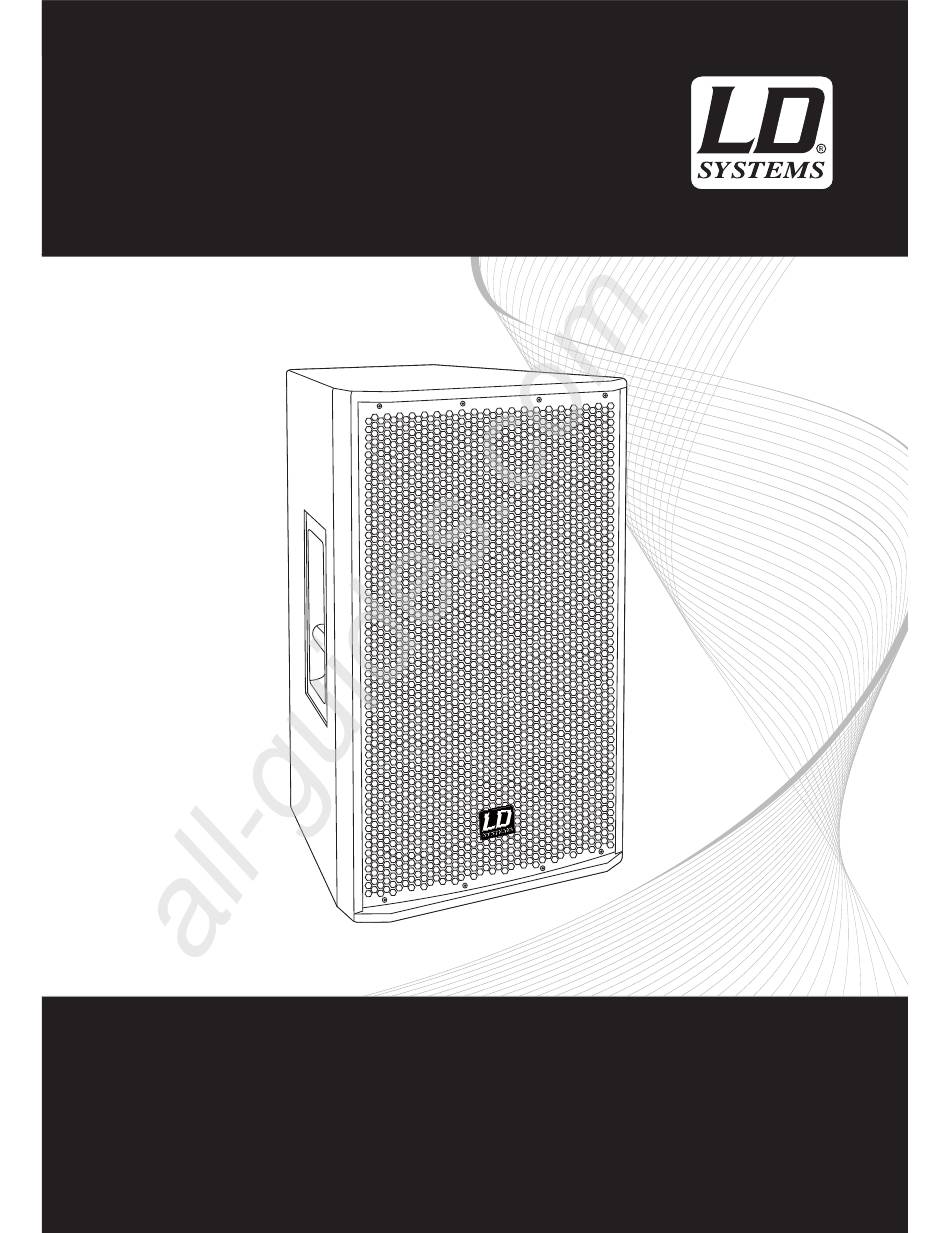

All manuals and user guides at all-guides.com USER´S MANUAL BEDIENUNGSANLEITUNG MANUEL D`UTILISATION MANUAL DE USUARIO INSTRUKCJA OBSŁUGI MANUALE D‘ USO LD STINGER SEriES LDEB15HP...
Seite 2
All manuals and user guides at all-guides.com Thank you for choosing LD-Systems! We have designed this product to operate reliably over many years. Therefore LD-Systems guarantees for high quality products with its name and many years of experience as a producer. Please, take a few moments to read these instructions carefully, as we want you to enjoy your new LD-Systems products quickly and to the fullest.
Seite 3
All manuals and user guides at all-guides.com LD STINGER SEriES LDEB15HP...
All manuals and user guides at all-guides.com PREVENTIVE MEASURES: 1. Please read this information carefully. 2. Keep all information and instructions in a safe place. 3. Please follow the instructions. 4. Please observe all warnings. 5. Use the device only in the intended manner. 6.
Seite 5

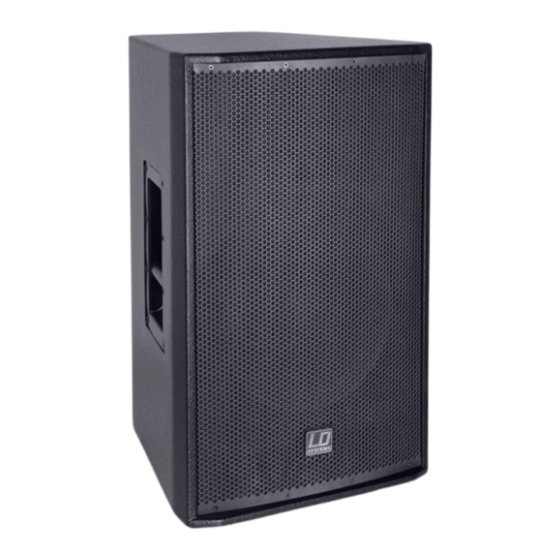

Caution should be taken to avoid prolonged exposure SPL in excess of 90 dB. INTRoducTIoN The LDEB15HP is a 2-way, high power Fullrange speakersystem which, thanks to its characteristics, is a combi- nation of Biamping mode as well as Fullrange mode. Both modes can be used separate.
Seite 6
All manuals and user guides at all-guides.com Back paNEl / controL ELEmEntS:...
All manuals and user guides at all-guides.com Back paNEl / controL ELEmEntS: INpuT Both 4-pole Speakon sockets are parallel wired and can be used for both operating modes, Fullrange and Biamping mode. If one socket is used as Input, the other socket can be used as Link Output. For Fullrange mode (operating mode switch in position FULLRANGE) only pin 1+ and 1- of the SPEAKON sockets are used.
Seite 8
All manuals and user guides at all-guides.com cRoSSoVEr: woofer tweeter NL-4 OUT NL-4 IN...
Seite 9
All manuals and user guides at all-guides.com BIaMpING: FULLRANGE MODE TWEETER CROSSOVER WOOFER BIAMPING MODE TWEETER WOOFER...
Seite 10
All manuals and user guides at all-guides.com SpEcIFIcaTIoNS: ld STINGER 15Hp Model LDEB15HP Type Bass Reflex Woofer Faital PRO 15FX560 Compression Driver Faital Pro HF200 Dispersion 60° x 40° Power Capacity [Cont./Peak] 800 W / 1600 W Frequency Range 50 Hz - 19 kHz...
MaNuFacTuRER´S DEcLArAtionS: LIMITED WaRRaNTy This Limited Warranty applies to the Adam Hall, LD Systems,LD Premium, Defender, Palmer, Cameo and Eminence branded products. The statutory warranty rights towards the seller are not affected by this guarantee. In fact, it justifies, additional independent warranty claims towards Adam Hall.
All manuals and user guides at all-guides.com MaNuFacTuRER´S DEcLArAtionS: LIMITATION OF lIaBIlITy If your Adam Hall branded hardware product fails to work as warranted above, your sole and exclusive remedy shall be repair or replacement. Adam Halls’ maximum liability under this limited warranty is expressly limited to the lesser of the price you have paid for the product or the cost of repair or replacement of any hardware components that malfunction in conditions of normal use.
All manuals and user guides at all-guides.com MaNuFacTuRER´S DEcLArAtionS: WEEE-DECLARATION Your LD-Systems product was developed and manufactured with high quality materials and components wich can be recycled and/or reused. This symbol indicates that electrical and electronic equipment must be disposed of separately from normal waste at the end of its operational lifetime.
Seite 14
Betrieb zu gewährleisten. Dafür steht LD Systems mit seinem Namen und der langjährigen Erfahrung als Hersteller hochwertiger Audioprodukte. Bitte lesen Sie diese Bedienungsanleitung sorgfältig, damit Sie Ihr neues Produkt von LD Systems schnell optimal einsetzen können. Weitere Informationen zu Produkten von LD Systems erhalten Sie auf unserer Internet-Seite WWW.LD-SYSTEMS.COM...
Seite 15
All manuals and user guides at all-guides.com LD STINGER-SEriE LDEB15HP...
All manuals and user guides at all-guides.com SICHERHEITSHINWEISE: 1. Bitte lesen Sie diese Hinweise sorgfältig. 2. Bewahren Sie alle Hinweise und Anleitungen auf. 3. Bitte richten Sie sich nach den Anweisungen. 4. Bitte beachten Sie alle Warnhinweise. 5. Verwenden Sie das Gerät nur in der dafür vorgesehenen Art und Weise. 6.
Vermeiden Sie länger anhaltende Belastung durch hohe Lautstärken über 90 dB. EINFÜHRuNG Der LDEB15HP ist ein leistungsstarker 2-Wege-Fullrange-Lautsprecher, der neben dem Fullrange-Betrieb auch einen Biamping-Modus bietet (separat nutzbar). Diese Eigenschaften machen den LDEB15HP zu einem unverzichtbaren und flexiblen Werkzeug für jeden Künstler, Musiker, DJ oder Beschaller.
Seite 18
All manuals and user guides at all-guides.com RÜckSEITE / BEDiEnELEmEntE:...
Seite 19
All manuals and user guides at all-guides.com RÜckSEITE / BEDiEnELEmEntE: INpuT Beide 4-Pol-Speakon-Buchsen sind parallel verdrahtet und können sowohl im Fullrange- als auch im Biamping-Betrieb genutzt werden. Wird die eine Buchse als Eingang verwendet, dient die andere als Link-Ausgang (zum Durchschleifen des Signals).
All manuals and user guides at all-guides.com TEcHNIScHE daTEN: ld STINGER 15Hp Modell LDEB15HP Bassreflex Tieftöner Faital PRO 15FX560 Hochtöner (Kompressionstreiber): Faital Pro HF200 Abstrahlwinkel 60° x 40° Leistung [Cont./Peak]: 800 W / 1600 W Frequenzgang: 50 Hz - 19 kHz...
All manuals and user guides at all-guides.com HERSTELLERERKLÄRUNGEN: GaRaNTIEBESTIMMUNGEN Diese Garantie erstreckt sich auf die Marken Adam Hall, LD Systems, LD Premium, Defender, Palmer, Cameo und Eminence. Die gesetzlichen Gewährleistungsrechte gegenüber dem Verkäufer werden von dieser Garantie nicht berührt. Viel- mehr begründet diese Garantie zusätzliche selbständige Ansprüche gegenüber Adam Hall.
All manuals and user guides at all-guides.com HERSTELLERERKLÄRUNGEN: HaFTuNGSBESCHRÄNKUNG Wenn das unter der Marke Adam Hall vertriebene Produkt nicht entsprechend der obigen Garantie funktioniert, besteht Ihr alleiniger und ausschließlicher Anspruch aus dieser Garantie in der Reparatur oder dem Ersatz. Weitergehende Gewährleistungsansprüche bleiben hiervon unberührt. Die maximale Haftung von Adam Hall im Rahmen dieser Garantie ist ausdrückliche beschränkt auf den jeweils niedrigeren Betrag, der sich entweder aus dem Kaufpreis für das Produkt oder aus den Reparatur- bzw.
All manuals and user guides at all-guides.com HERSTELLERERKLÄRUNGEN: WEEE-DEKLARATION Ihr LD-Systems Produkt wurde unter der Verwendung hochwertiger Materialien und Komponenten die wiedever- wertet oder wieder verwendet werden können hergestellt. Dieses Symbol weist darauf hin, dass elektronische Geräte nicht im normalen Hausmüll entsorgt werden dürfen. Entsorgen Sie dieses Gerät bitte fachgerecht bei einer entsprechenden Stelle für Elektromüll und helfen Sie dabei unsere Umwelt zu schützen.
Seite 26
All manuals and user guides at all-guides.com Merci d'avoir choisi LD-Systems ! Nous avons conçu ce produit en vue d'une une fiabilité optimale pendant des années. La marque LD-Systems est synonyme de produits de haute qualité, grâce à des années d'expérience dans le domaine de la fabrication. Veuillez prendre quelques instants pour lire attentivement ces instructions - cela vous permettra d'utiliser plus rapidement et de façon optimale votre produit LD-Systems.
Seite 27
All manuals and user guides at all-guides.com LD STINGER SEriES LDEB15HP...
All manuals and user guides at all-guides.com MESURES PRÉVENTIVES: 1. Veuillez lire attentivement ces conseils. 2. Suivez tous ces conseils et ces indications. 3. Veuillez respecter les instructions. 4. Prière de faire attention à tous les avertissements. 5. N‘utilisez l‘appareil que pour des applications et de la façon appropriées. 6.
Seite 29
à 90 dB SPL. INTRoducTIoN La LDEB15HP est une enceinte 2 voies "full range" de grande puissance, qui, grâce à ses caractéristiques, s'utilise aussi bien en biamplification qu'en full range. Les deux modes peuvent être utilisés indifféremment.
Seite 30
All manuals and user guides at all-guides.com paNNEau aRRIèRE / éLémEntS DE contrôLE :...
All manuals and user guides at all-guides.com paNNEau aRRIèRE / éLémEntS DE contrôLE : (ENTRÉES) Les deux embases Speakon 4 points sont câblées en parallèle. Elles peuvent être utilisées dans les deux modes de fonctionnement, Full range et biamplification. Dès que l'une des embases est utilisée comme entrée, l'autre embase sert de renvoi (Link Output). En mode Fullrange (sélecteur de mode de fonctionnement en position FULLRANGE), seuls les points 1+ et 1- des embases SPEAKON sont utilisés.
Seite 32
All manuals and user guides at all-guides.com cRoSSoVEr : woofer tweeter NL-4 OUT NL-4 IN...
Seite 33
All manuals and user guides at all-guides.com BIaMplIFIcaTIoN : FULLRANGE MODE TWEETER CROSSOVER WOOFER BIAMPING MODE TWEETER WOOFER...
Seite 34
All manuals and user guides at all-guides.com caRacTÉRISTIQuES: ld STINGER 15Hp Référence modèle LDEB15HP Type : Bass Reflex Boomer : Faital PRO 15FX560 Moteur à compression : Faital Pro HF200 Angle de diffusion : 60° x 40° Puissance admissible (continue/crête): 800 W / 1600 W Bande passante : de 50 Hz à...
DU FABricAnt: GaRaNTIE LIMITÉE: Cette garantie limitée s’applique aux produits de la marque Adam Hall, LD Systems, LD Premium, Defender, Palmer, Cameo et Eminence. Les droits inhérents à la garantie légale vis-à-vis du revendeur ne sont pas affectés par cette garantie. En fait elle justifie d’une garantie supplémentaire indépendante auprès de la société...
Seite 36
All manuals and user guides at all-guides.com dEclaRaTIoNS DU FABricAnt: LIMITATION OF lIaBIlITy Si votre produit Adam Hall devait ne pas fonctionner correctement, votre seul et unique dédommagement sera la réparation du produit ou son remplacement. La responsabilité maximale imputable à Adam Hall dans le cadre de cette garantie limitée se limite au montant le plus bas.
Seite 37
All manuals and user guides at all-guides.com dEclaRaTIoNS DU FABricAnt: dEclaRaTIoN WEEE Votre produit LD-Systems a été développé et fabriqué avec des matériaux et des composants de haute qualité, qui peuvent être recyclés et/ou réutilisés. Ce symbole indique que les appareils électriques et électroniques, à la fin de leur durée de vie opérationnelle, doivent être gérés séparément des déchets ordinaires.
Seite 38
All manuals and user guides at all-guides.com ¡Gracias por elegir LD-Systems! Este producto se ha diseñado para ofrecer una fiabilidad y durabilidad óptima. Los productos de LD-Systems se caracterizan por su gran calidad, avalada por el prestigio de la marca y una dilatada experiencia como fabricante.
Seite 39
All manuals and user guides at all-guides.com SEriE ld StinGEr LDEB15HP...
All manuals and user guides at all-guides.com MEDIDAS DE SEGURIDAD: 1. Lea atentamente estas instrucciones. 2. Guarde estas instrucciones para futuras consultas. 3. Siga todas las instrucciones indicadas. 4. Asegúrese de cumplir todas las advertencias. 5. Utilice el equipo de manera apropiada y según la finalidad prevista. 6.
Seite 41
90 dB. INTRoduccIÓN El LDEB15HP es un potente altavoz full range de 2 vías, cuyas características permiten utilizarlo en modo biamplificado o full range. Ambos modos se pueden utilizar por separado. Estas características hacen del LDEB15HP un equipo indispensable y flexible para cualquier artista, músico, DJ o...
Seite 42
All manuals and user guides at all-guides.com paNEl poSTERIoR/controLES:...
Seite 43
All manuals and user guides at all-guides.com paNEl poSTERIoR/controLES: ENTRada Los dos conectores Speakon de 4 pines están cableados en paralelo y se pueden utilizar para ambos modos operativos, full range y biamplificado. Si se usa uno de los conectores como entrada, el otro se puede usar como salida en paralelo. En el modo full range (conmutador en posición FULLRANGE) solo se usan los pines 1+ y 1- de los conectores Speakon.
Seite 44
All manuals and user guides at all-guides.com cRoSSoVEr: woofer tweeter NL-4 OUT NL-4 IN...
Seite 45
All manuals and user guides at all-guides.com BIaMplIFIcado: FULLRANGE MODE TWEETER CROSSOVER WOOFER BIAMPING MODE TWEETER WOOFER...
Seite 46
All manuals and user guides at all-guides.com caRacTERÍSTIcaS TÉcNIcaS: ld STINGER 15Hp Modelo LDEB15HP Tipo Bass reflex Woofer Faital PRO 15FX560 Motor de agudos Faital Pro HF200 Dispersión 60° x 40° Potencia (continua/pico) 800 W/1600 W Banda de frecuencias 50 Hz a 19 kHz...
DEL FABricAntE: GARANTÍA lIMITada Esta garantía limitada se aplica a los productos de la marca Adam Hall, LD Systems, LD Premium, Defender, Palmer, Cameo y Eminence. No afecta a los derechos de garantía legal que asume el vendedor. De hecho, le concede al usuario derechos adicionales ante Adam Hall, independientes de la garantía legal.
All manuals and user guides at all-guides.com dEclaRacIÓN DEL FABricAntE: LIMITACIÓN DE RESpoNSaBIlIdad Si su producto Adam Hall no funciona de acuerdo con las garantías mencionadas arriba, tendrá derecho exclusi- vamente a la reparación o sustitución del mismo. La responsabilidad máxima de Adam Hall en virtud de los tér- minos de esta garantía está...
All manuals and user guides at all-guides.com dEclaRacIÓN DEL FABricAntE: dEclaRacIÓN SoBRE WEEE Este producto LD-Systems se ha desarrollado y fabricado con materiales y componentes de alta calidad que se pueden reciclar o reutilizar. Este símbolo indica que los equipos eléctricos y electrónicos deben separarse del resto de residuos comunes al final de su vida útil.
Seite 50
All manuals and user guides at all-guides.com Dziękujemy za wybór LD Systems! Zaprojektowaliśmy ten produkt tak, aby działał sprawnie przez wiele lat. LD Systems gwarantuje wysoką jakość produktów swoją marką i wieloma latami doświadczenia jako producent. Prosimy o dokładne zapoznanie się z niniejszą instrukcją, ponieważ chcemy, abyś szybko mógł cieszyć się...
Seite 51
All manuals and user guides at all-guides.com SEriA LD STINGER LDEB15HP...
All manuals and user guides at all-guides.com ŚRodkI oStroŻnoŚci: 1. Należy uważnie przeczytać niniejsze wskazówki dotyczące bezpieczeństwa. 2. Zachować wszystkie wskazówki i instrukcje na przyszłość. 3. Przestrzegać tych instrukcji. 4. Przestrzegać wszystkich wskazówek ostrzegawczych. 5. Używać urządzenia tylko w sposób zgodny z jego przeznaczeniem. 6.
Seite 53
90 dB. WSTęp LDEB15HP to dwudrożny, potężny system głośnikowy, który dzięki swojej charakterystyce zdolny jest do pracy w trybie pełnozakresowym lub w trybie bi-amping. Oba tryby pracy są dostępne niezależnie. Głośnik LDEB15HP jest niezbędnym narzędziem każdego artysty, muzyka, DJ-a lub specjalisty od nagłośnienia.
Seite 54
All manuals and user guides at all-guides.com paNEl TylNy/ELEmEnty StEroWAniA:...
Seite 55
All manuals and user guides at all-guides.com paNEl TylNy/ELEmEnty StEroWAniA: WEJŚcIa Oba czterobiegunowe gniazda Speakon są połączone równolegle i mogą być wykorzystywane w obu trybach pracy, pełnozakresowym i bi-amping. Jeśli jedno z gniazd jest wykorzystywane jako wejściowe, drugie może służyć jako gniazdo podłączenia dodatkowej kolumny.
Seite 56
All manuals and user guides at all-guides.com ZWRoTNIca: woofer tweeter NL-4 OUT NL-4 IN...
Seite 57
All manuals and user guides at all-guides.com BIaMpING: FULLRANGE MODE TWEETER CROSSOVER WOOFER BIAMPING MODE TWEETER WOOFER...
Seite 58
All manuals and user guides at all-guides.com SpEcyFIkacJE: ld STINGER 15Hp Nazwa modelu: LDEB15HP Bass Reflex Głośnik niskotonowy Faital PRO 15FX560 Przetwornik wysokotonowy Faital Pro HF200 Dyspersja: 60° x 40° Moc wyjściowa [Ciągła/Szczytowa]: 800 W/1600 W Zakres częstotliwości: 50 Hz – 19 kHz Ciśnienie akustyczne (SPL) 1 W/1 m: 101 dB...
All manuals and user guides at all-guides.com dEklaRacJE ProDUcEntA: OGRANICZONA GWaRaNcJa Ta Ograniczona Gwarancja dotyczy produktów marek Adam Hall, LD Systems, LD Premium, Defender, Palmer, Cameo oraz Eminence. Niniejsza gwarancja nie wpływa na prawa gwarancyjne wynikające z przepisów lokalnych. Jest to dodatkowa, niezależna gwarancja ze strony firmy Adam Hall.
All manuals and user guides at all-guides.com dEklaRacJE ProDUcEntA: OGRANICZENIE odpoWIEdZIalNoŚcI Jeśli Twój produkt Adam Hall nie działa prawidłowo, wskazanym i wyłącznym rozwiązaniem jest naprawa lub wymiana. Maksymalna odpowiedzialność firmy Adam Hall w związku z niniejszą gwarancją ogranicza się maksymalnie do kwoty równej cenie zakupu produktu lub kosztom naprawy lub wymiany komponentów sprzętowych, które uległy uszkodzeniu lub nie działają...
ProDUcEntA: dEklaRacJa-WEEE Twój produkt LD Systems został zaprojektowany i wykonany z wysokiej jakości materiałów i komponentów, które można poddać recyklingowi i/lub użyć ponownie. Ten symbol oznacza, że sprzęt elektryczny i elektroniczny należy składować osobno od normalnych odpadów po zakończeniu użytkowania.
Seite 62
All manuals and user guides at all-guides.com Grazie per aver scelto DL-Systems! Questo prodotto è stato progettato per garantire un funzionamento affidabile per molti anni. LD-Systems, grazie al suo nome e alla sua esperienza pluriennale come fabbricante, garantisce prodotti di alta qualità. Vi invitiamo a dedicare qualche istante a un'attenta lettura delle presenti istruzioni, per poter godere rapidamente e appieno dei vostri nuovi prodotti LD-Systems.
Seite 63
All manuals and user guides at all-guides.com SEriE ld StinGEr LDEB15HP...
Seite 64
All manuals and user guides at all-guides.com MISURE PREVENTIVE : 1. Leggere attentamente queste indicazioni. 2. Conservare tutte le indicazioni e le istruzioni. 3. Seguire le istruzioni. 4. Osservare tutte le avvertenze. 5. Utilizzare il dispositivo unicamente nelle modalità previste. 6.
Seite 65
SPL superiore a 90 dB. INTRoduZIoNE Il LDEB15HP è un potente altoparlante fullrange a due vie le cui caratteristiche ne consentono l'utilizzo sia in modalità biamping sia fullrange. Entrambe le modalità possono essere adottate separatamente.
Seite 66
All manuals and user guides at all-guides.com paNNEllo poSTERIoRE / ELEmEnti Di controLLo:...
Seite 67
All manuals and user guides at all-guides.com paNNEllo poSTERIoRE / ELEmEnti Di controLLo: INGRESSI I due connettori Speakon a 4 poli sono cablati in parallelo e possono essere utilizzati per entrambe le modalità di funzionamento, fullrange e biamping. Se un connettore viene utilizzato come ingresso, l'altro può essere utilizzato come uscita in parallelo. Per la modalità...
Seite 68
All manuals and user guides at all-guides.com cRoSSoVEr: woofer tweeter NL-4 OUT NL-4 IN...
Seite 69
All manuals and user guides at all-guides.com BIaMpING: FULLRANGE MODE TWEETER CROSSOVER WOOFER BIAMPING MODE TWEETER WOOFER...
Seite 70
All manuals and user guides at all-guides.com SpEcIFIcHE: ld STINGER 15Hp Modello LDEB15HP Tipo Bass reflex Woofer Faital PRO 15FX560 Driver per i toni alti Faital Pro HF200 Dispersione 60° x 40° Potenza [continua/picco] 800 W / 1600 W Gamma di frequenze...
ProDUttorE: GaRaNZIa DEL PRODUTTORE Le seguenti condizioni di garanzia si applicano ai prodotti dei marchi Adam Hall, LD Systems, LD Premium, Defender, Palmer, Cameo e Eminence. La presente dichiarazione di garanzia non influisce sui diritti di garanzia del produttore previsti dalla legge, ma estende ulteriormente tali diritti anche nei confronti della ditta Adam Hall.
All manuals and user guides at all-guides.com dIcHIaRaZIoNI dEl ProDUttorE: lIMITaZIoNEdI RESPONSABILITÀ Nel caso in cui, durante il periodo di garanzia, i prodotti hardware Adam Hall presentino difetti di materiale o di lavorazione (in base alla dichiarazione di garanzia precedente), il solo ed unico diritto del cliente previsto dalla presente garanzia è...
Seite 73
ProDUttorE: DICHIARAZIONE RaEE Il prodotto LD Systems acquistato è stato realizzato tramite l'utilizzo di materiali e componenti di qualità che pos- sono essere riciclati o riutilizzati. Questo simbolo indica che gli apparecchi elettronici non vanno smaltiti assieme ai normali rifiuti domestici indifferenziati. Si prega di smaltire questo apparecchio a norma di legge presso un punto di raccolta per rifiuti elettronici contribuendo così...
Seite 74
All manuals and user guides at all-guides.com WWW.LD-SYSTEMS.COM Adam Hall GmbH | Daimlerstrasse 9 | 61267 Neu-Anspach | Germany Tel. +49(0)6081/9419-0 | Fax +49(0)6081/9419-1000 web : www.adamhall.com | e-mail : mail@adamhall.com...
