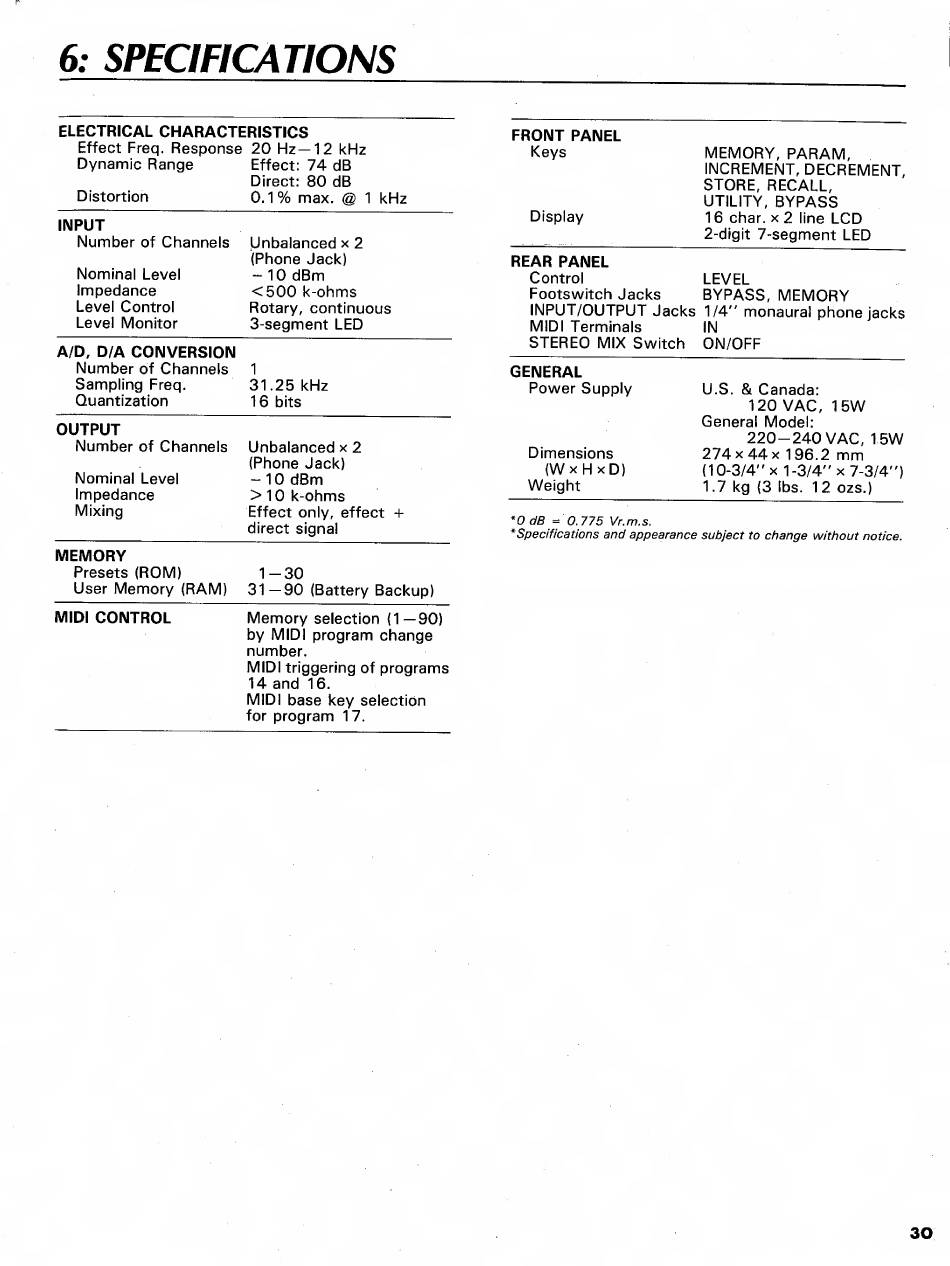

6 : SPECIFICATIONS
ELECTRICAL CHARACTERISTICS
Effect Freq. Response 20 Hz —12 kHz
Dynamic Range Effect: 74 dB
Direct: 80 dB
Distortion 0.1% max. @ 1 kHz
INPUT
Number of Channels
Unbalanced x 2
(Phone Jack)
Nominal Level
-10 dBm
Impedance
<500 k-ohms
Level Control
Rotary, continuous
Level Monitor
3-segment LED
A/D, D/A CONVERSION
Number of Channels 1
Sampling Freq.
31.25 kHz
Quantization
16 bits
OUTPUT
Number of Channels
Unbalanced x 2
(Phone Jack)
Nominal Level
-10 dBm
Impedance
> 10 k-ohms
Mixing
Effect only, effect -i-
direct signal
MEMORY
Presets (ROM)
1-30
User Memory (RAM)
31—90 (Battery Backup)
FRONT PANEL
Keys
Display
MEMORY, PARAM,
INCREMENT, DECREMENT,
STORE, RECALL,
UTILITY, BYPASS
16 char, x 2 line LCD
2-digit 7-segment LED
REAR PANEL
Control
LEVEL
Footswitch Jacks
BYPASS, MEMORY
INPUT/OUTPUT Jacks 1/4" monaural phone lacks
MIDI Terminals IN
STEREO MIX Switch
ON/OFF
GENERAL
Power Supply
U.S. & Canada:
Dimensions
120 VAC, 15W
General Model:
220-240 VAC, 15W
274x 44x 196.2 mm
(WxHxD)
(10-3/4" X 1-3/4" X 7-3/4")
Weight
1.7 kg (3 lbs. 12 ozs.)
*0 dB = 0.775 Vr.m.s.
* Specifications and appearance subject to change without notice.
MIDI CONTROL
Memory selection (1—90)
by MIDI program change
number.
MIDI triggering of programs
14 and 16.
MIDI base key selection
for program 17.
