Installing the Appliance

Island

WARNING
The ceiling must be flat, horizontal and be able to bear the load.
The wall plugs must have a secure grip. The enclosed screws
and wall plugs are suitable for solid brickwork or solid concrete.
Suitable fasteners must be used for other structures (e.g.
plasterboard, porous concrete, porous bricks).

Drilling the Ceiling / Wooden Shelf

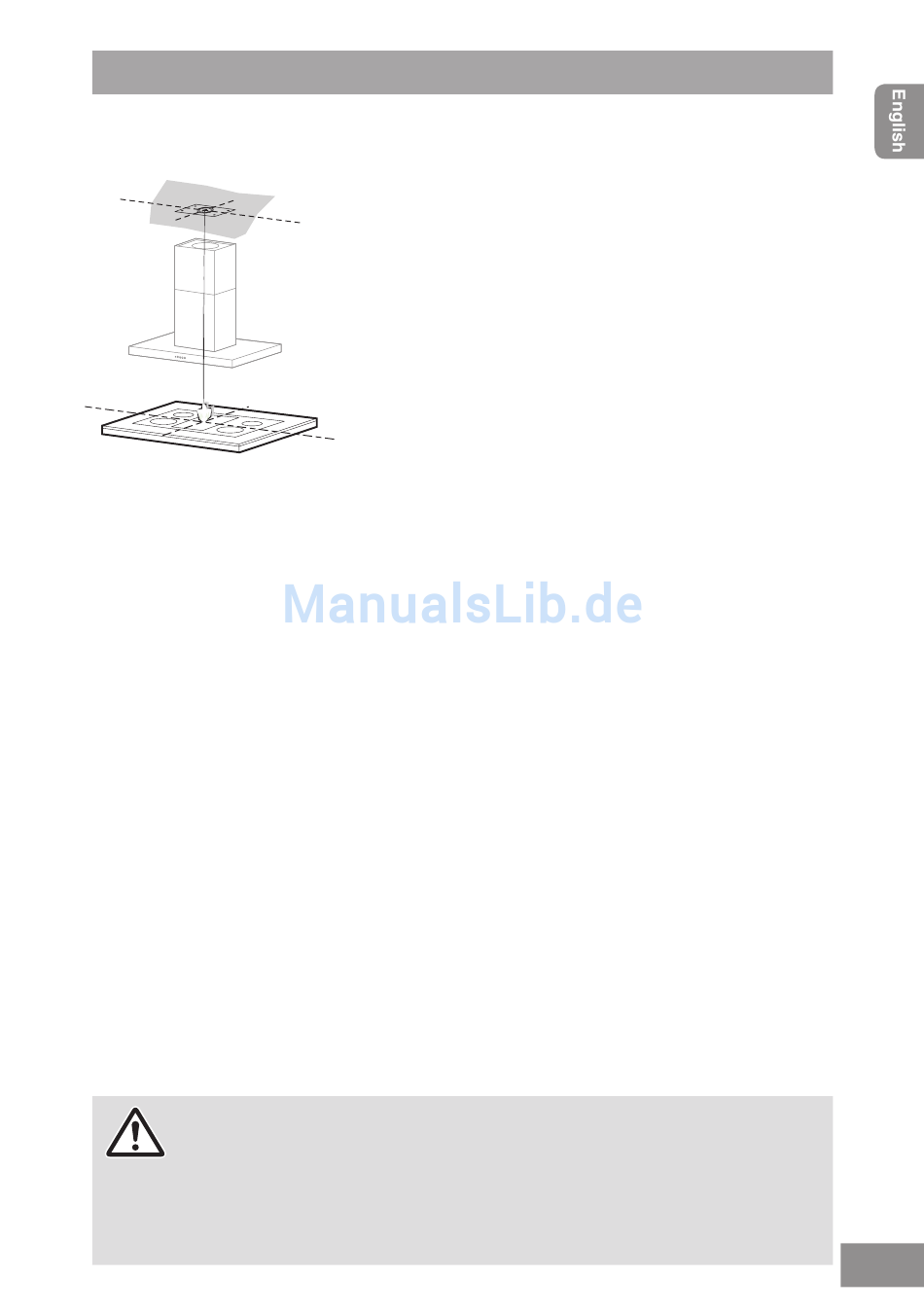

■ Use a plumb line to mark the centre of the hob on
the ceiling/wooden shelf.
■ Place the drilling template (Ref. 21) provided on the
ceiling/wooden shelf, making sure that the template
is in the correct position by lining up the axes of the
template with those of the hob.
■ Mark the centres of the holes in the template.
■ Drill the holes at the points marked:
- For concrete ceilings, drill for plugs appropriate
to the screw size.
- For hollow brick ceilings with wall thickness of
20 mm: drill ø 10 mm and immediately insert the
wall plugs (Ref. 11) supplied.
- For wooden beam ceilings, drill according to the
wood screws used.
- For wooden shelf, drill ø 7 mm.
- For the power supply cable feed, drill ø 10 mm.
- For the air outlet of ducted mode, drill according
to the diameter of the external air exhaust duct
connection.
■ Insert 2 screws diagonally from each other with a
4-5 mm gap from the ceiling/wooden shelf. Insert the
remaining 2 screws ensuring the gap is maintained.
- For concrete ceilings, use the appropriate plugs
for the screw size (not provided). For cavity ceiling
with inner space, with wall thickness of approx.
20 mm, use the screws (Ref. 12h), supplied.
- For wooden beam ceilings, use 4 wood screws
(not provided).
- For wooden shelf, use the 4 screws (Ref. 12g)
with the washers (Ref. 22) and the nuts (Ref. 23),
provided.
