CAUTION!
To protect the device from potential damage caused by over-voltage, it's recommended to wire a diode
into the circuit. Connect the anode of the diode to the negative cable of the lock, and the cathode of
the diode to the positive cable of the lock.
Door lock
Diode
Choose one
≤DC 30 V
to connect
PWR
GND
4
OPERATION
Table A3 - MyBell 2-Wire 1-button Station - LED status information
Color Status
Always on
Blue
Flashing
Red Flashing
Purple Always on
Red/Blue Flashing
Note
For more LED settings, go to MyBell 2-Wire 1-button Station web interface:
Device -> LED Setting
5
DEVICE TESTING
Verify the device status after installation:
1. Network: press and hold the Call button to obtain the IP address. Network is working properly if the device announces IP address. If no IP
address is obtained, the device announces IP 0.0.0.0.
2. Wi-Fi: If you use a Wi-Fi conection, you can log into your device on the monitor screen using the monitor IP and port number :9011, for ex-
ample: 192.168.10:9001.
3. Intercom: press the Call button to make a call. The call configuration is correct if the call is successful.
4. Access Control: use pre-configured RF card to unlock door.
4
PLC-1
Power
not polarized
input
PLC-11
not polarized
X
NO
Relay
COM
output
NC
DC+

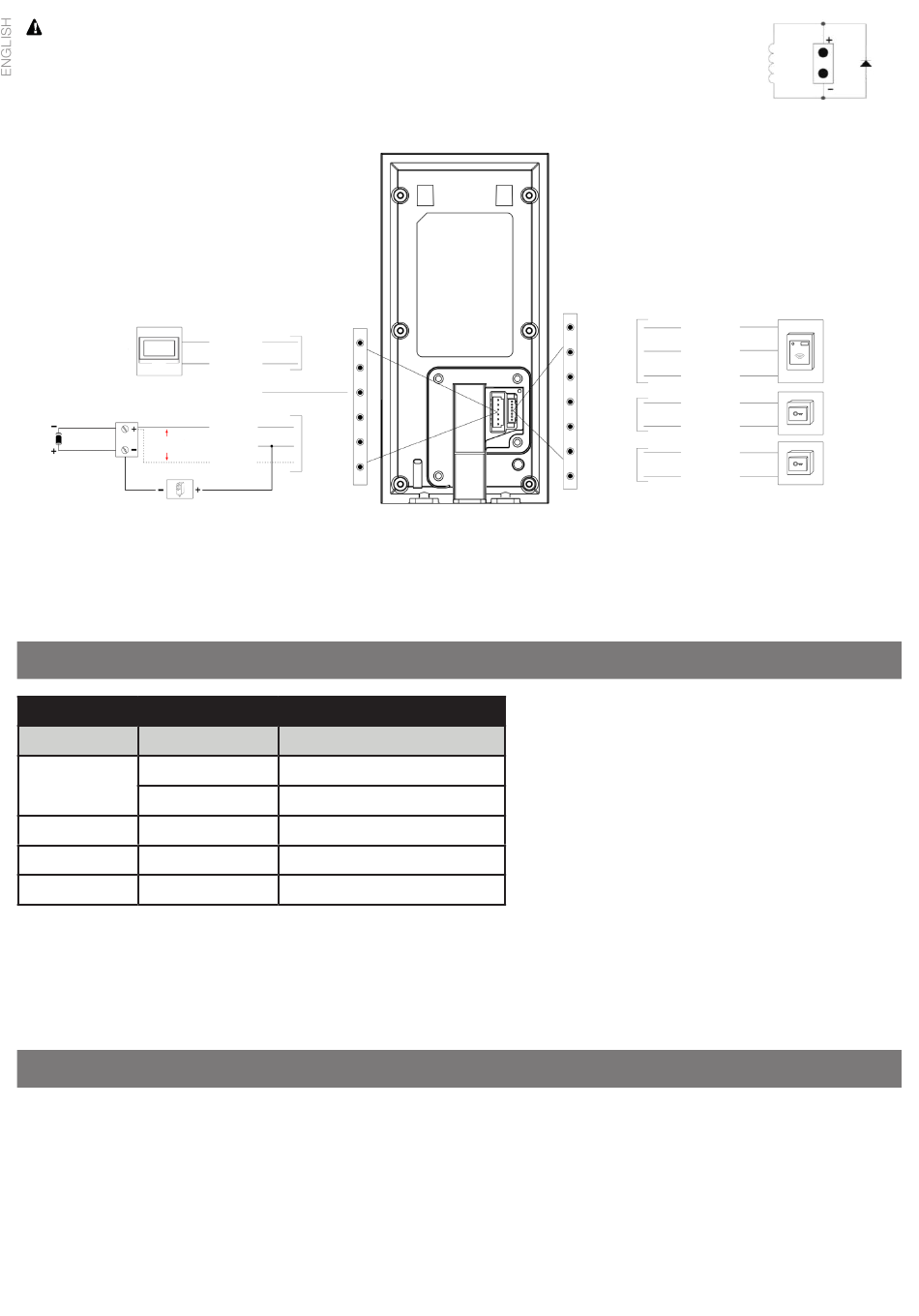

Figure 2: MyBell 2-Wire 1-button Station wiring
Description
Normal status
Calling / Receiving a call
Offline
Talking on a call
Emergency alarm
Lock
GND
Wiegand
WG-D1
output
WG-D0
GND
Input B
IN 2
GND
Input A
IN 1
Diode
Terminals
Wiegand
card reader
Exit button
Exit button
