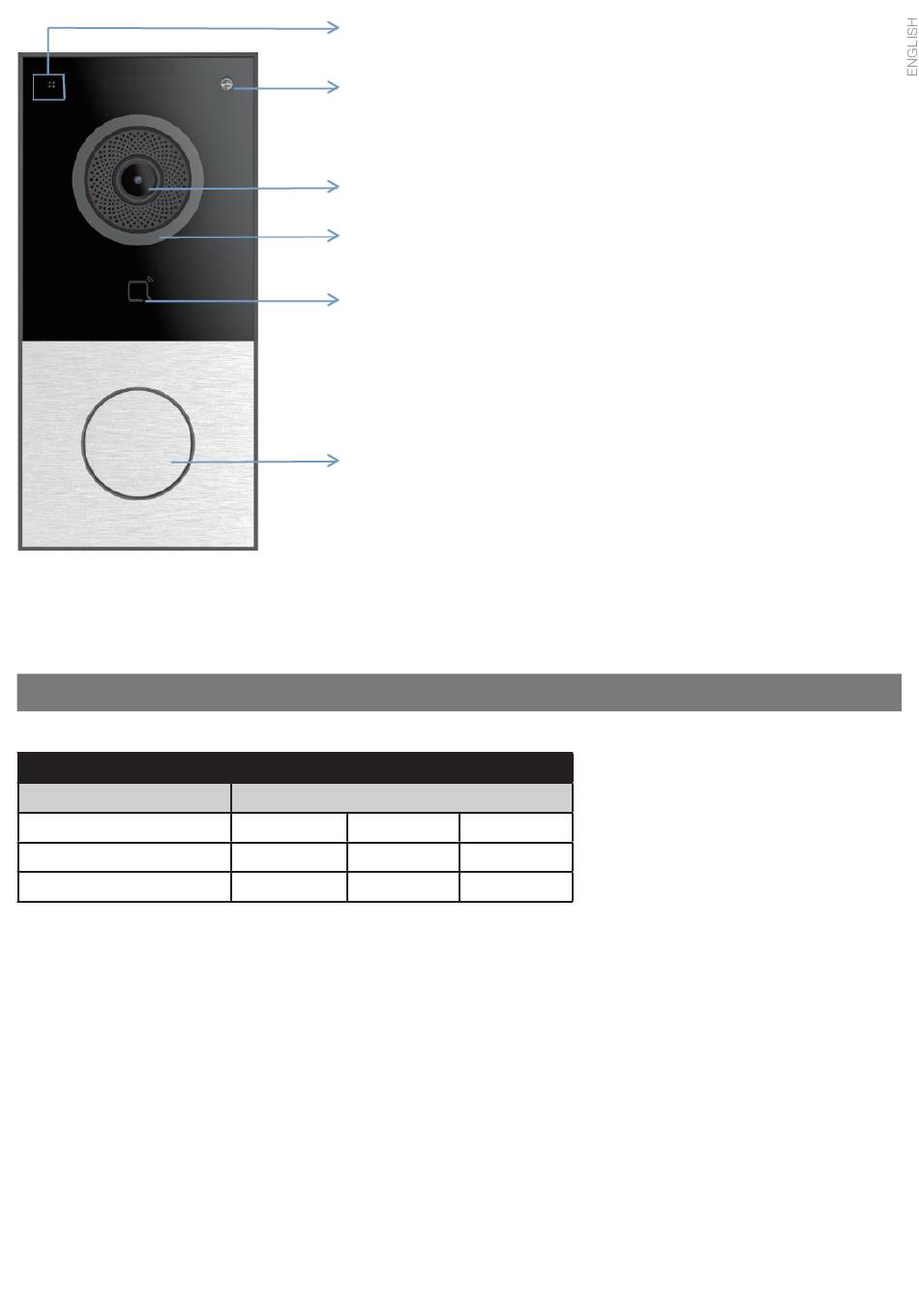

Figure 1: MyBell 2-Wire 1-button Station - front view
3
INSTALLATION
Please follow the American wire gauge (AWG) sizes and properties table below to install device:
Table A2 - MyBell 2-Wire 1-button Station - AWG
Property
AWG
Resistance (ohm/km)
Wire Length (m)
To instal the device:
1. Place the wall-mounting template against the wall and align it with the wire.
2. Use a hand drill with a 6 mm bit to make four 25-millimeter deep screw holes.
Note
Apply accurate diameters and depths of screw holes to ensure that the device doesn't loosen up. If the screw holes are too large, use glue
to secure the screws.
3. Insert four plastic wall anchors into the holes.
4. Fix the wall-mounting bracket to the wall by tightening the four ST4x20 crosshead screws to the plastic wall anchors.
5. Connect the wires to the corresponding interface.
6. Tighten the wiring cover with four M3x4 crosshead screws.
7. Insert the sealing pad into the wire opening, pushing it upward to ensure a tight seal of the opening.
8. Hang the slot onto the back upper part of the main unit into the corresponding hooks of the wall box, then gently lower the main unit into
the wall box.
9. Use the torx wrench to secure the device with two M3x6 torx screws at the bottom.
Microphone
Photosensitive sensor
Camera
White light LED
Card reader
Call button
Value
20 22
33.9 48.5
≤50 ≤40
24
79.6
≤20
3
