3. CONSTRUCTION, ASSEMBLY AND INSTALLATION
3.1. Receiver construction
The receiver consists of a splash-proof surface-mounted housing with a screw-in GSM antenna and a main
board. The main board (Fig. 1) has an executive system implemented on two relays and screw connections for
connecting the supply voltage, controlled devices and sensor outputs and control buttons. The board contains
memory on a base. Placing the module on the base makes it easier to transfer the memory to another receiver,
for example in the event of a device failure.
POWER
RTC
AUT
CON
ERR
antenna
antenna
433MHz
868MHz
screw terminal descriptions

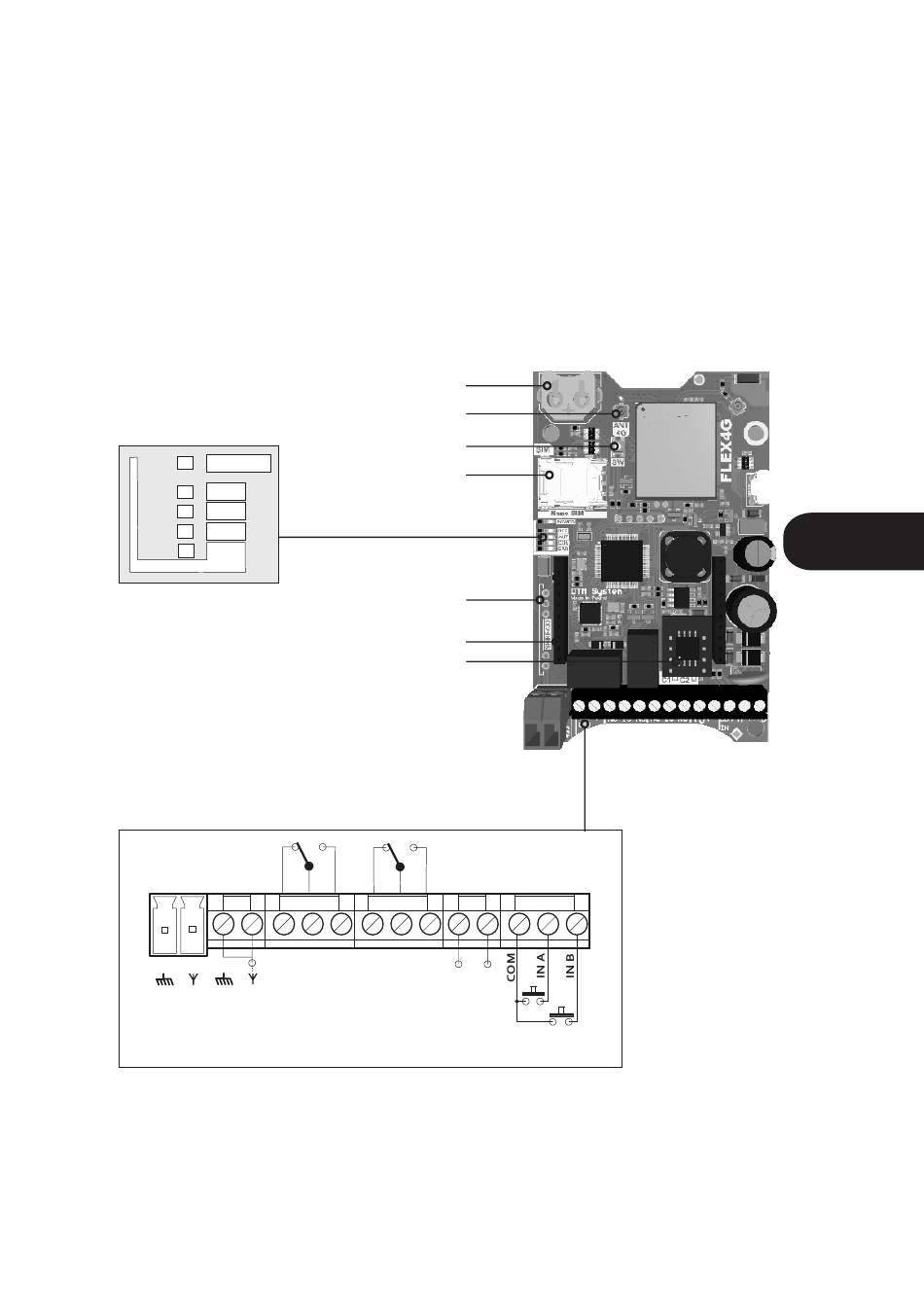

Fig.1 View of the receiver with connectors description.
RTC clock battery
4G antenna socket
SW button
SIM card connector
information diodes
connector for optional
433MHz radio module
additional modules connector
memory module
NC C NO
NC C NO
output
output
Power Supply
OUT1
OUT2
+ ~ -
12...24V
AC/DC
inputs NO/NC
EN
