INSTALLATION

Electrical connection

• The electrical connections must comply with local
regulations.
• The data relevant to the voltage and power absorption
are indicated on the rating plate.
• The earthing of this appliance is compulsory by law.
The manufacturer cannot be held responsible for injury
to persons or animals or damage to property arising
from failure to comply with these requirements.
• When the cooking hob is installed, provide a multi-pole
circuit breaker with a contact breaking distance of at
least 3 mm.
• After installation, the electric parts must not be
accessible.
• For electrical connection, use an H05RR-F cable
(see table in product description sheet).
• The power cable must be long enough for connecting
the appliance, once fitted in its housing, to the power
supply
• The electrical components must not be accessible to
the user after installation.
ELECTRICAL COOKING HOBS WITH
SIDE CONTROLS

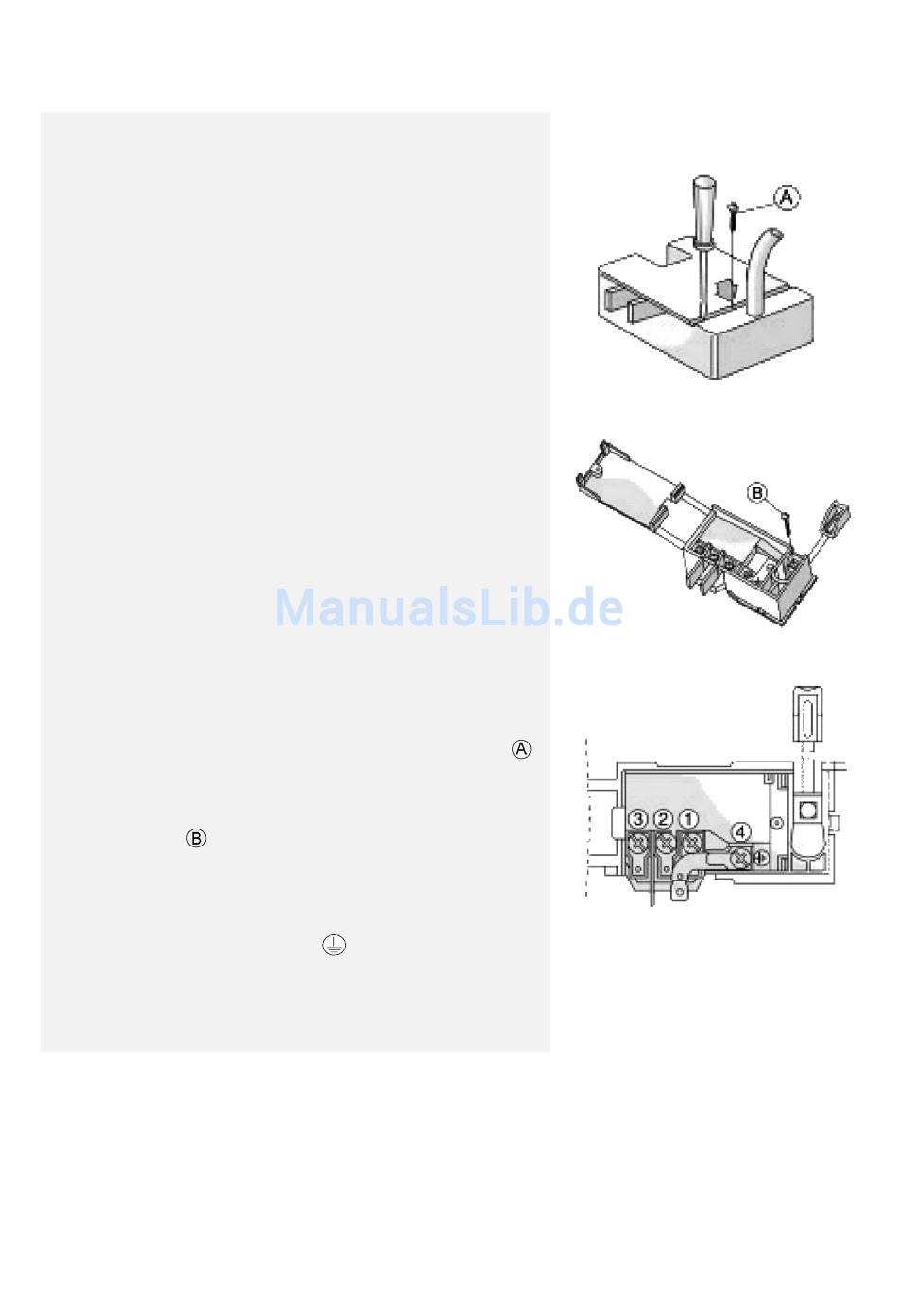

Connection to terminal board
1. Open the cover of the terminal board and loosen screw
by means of a tool, as shown in the figure.
2. Unsheathe the cable for about 70 mm.
3. Peel off the internal cables for about 10 mm loosen cable
clamp screw , and insert the cable in the cable clamp.
• The terminal board has 4 terminals:
1-2 interconnected (line)
3 (neutral)
4 (earth): marked with symbol
4. Connect the cable to the terminal board, following the
indications of the connection diagram punched on the
bottom of the cooking hob. Fasten the cable clamp and close
the cover.
.
