User manual / Bedienungsanleitung

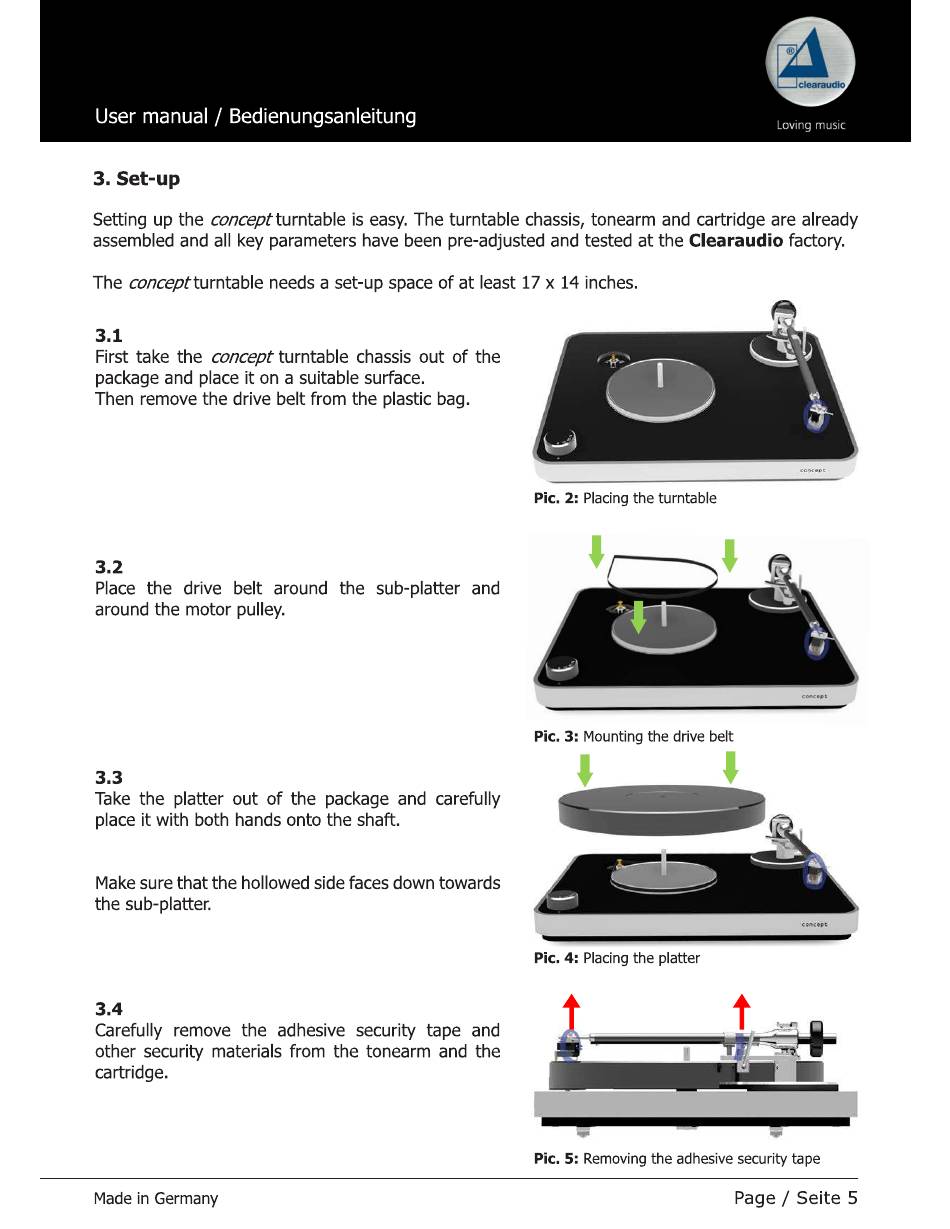

3. Set-up
Setting up the concept turntable is easy. The turntable chassis, tonearm and cartridge are already
assembled and all key parameters have been pre-adjusted and tested at the Clearaudio
The conceptturntable needs a set-up space of at least 17 x 14 inches.
3.1
First take the concept turntable
package and place it on a suitable surface.
Then remove the drive belt from the plastic bag.
3.2
Place the drive belt around the sub-platter
around the motor pulley.
3.3
Take the platter out of the package and carefully
place it with both hands onto the shaft.
Make sure that the hollowed
the sub-platter.
3.4
Carefully remove the adhesive security
other security materials from the tonearm and the
cartridge.
Made in Germany
chassis out of the
and
side faces down towards
tape and
Pic. 2: Placing the turntable
Pic. 3: Mounting the drive belt
Pic. 4: Placing the platter
. 5: Removing the adhesive security tape
Plc
clearaudio
Loving music
factory.
Page / Seite 5
