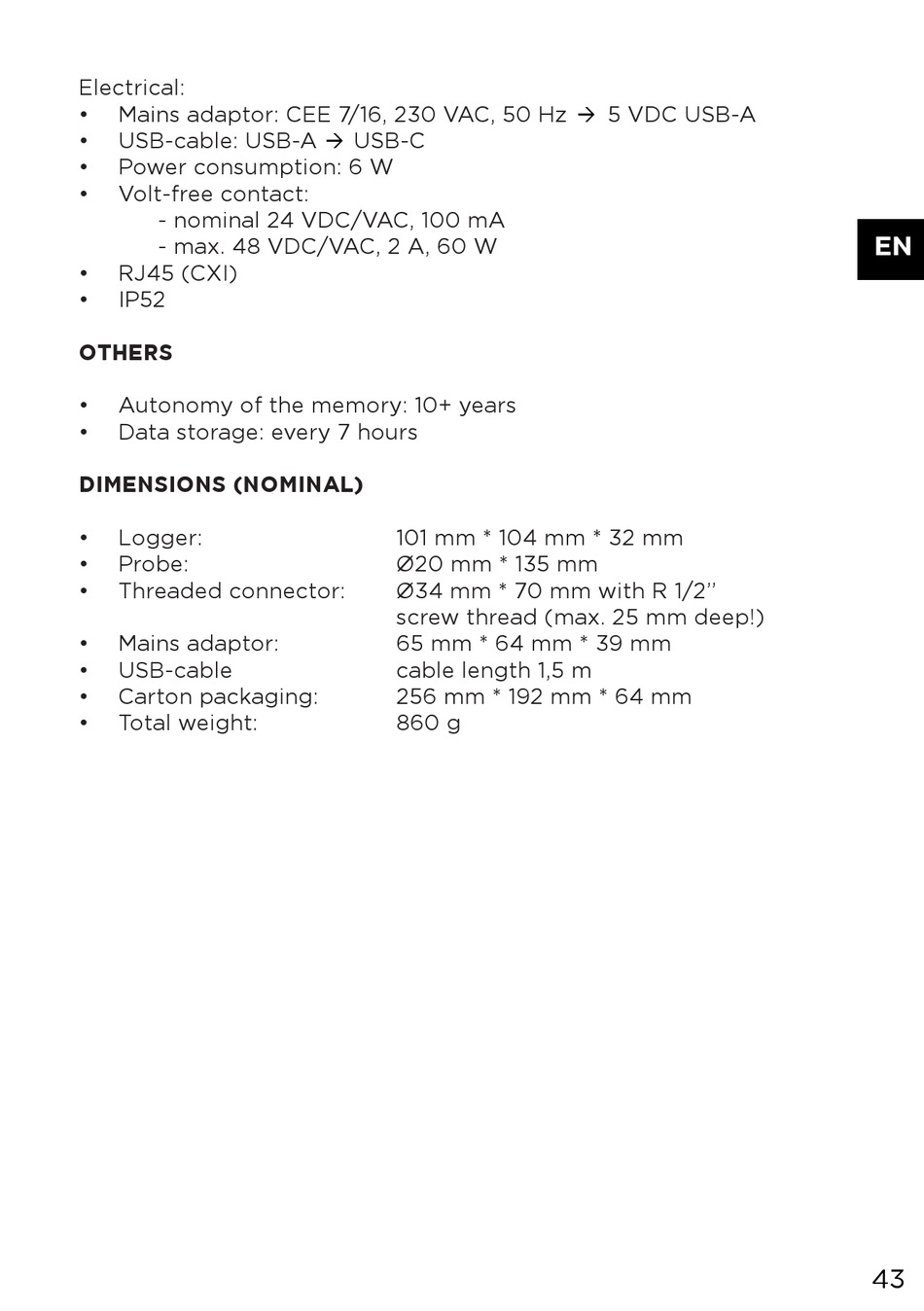

Electrical:
• Mains adaptor: CEE 7/16, 230 VAC, 50 Hz
• USB-cable: USB-A
• Power consumption: 6 W
• Volt-free contact:
- nominal 24 VDC/VAC, 100 mA
- max. 48 VDC/VAC, 2 A, 60 W
• RJ45 (CXI)
• IP52
OTHERS
• Autonomy of the memory: 10+ years
• Data storage: every 7 hours
DIMENSIONS (NOMINAL)
• Logger:
• Probe:
• Threaded connector:
• Mains adaptor:
• USB-cable
• Carton packaging:
• Total weight:
USB-C

101 mm * 104 mm * 32 mm
Ø20 mm * 135 mm
Ø34 mm * 70 mm with R 1/2"
screw thread (max. 25 mm deep!)
65 mm * 64 mm * 39 mm
cable length 1,5 m
256 mm * 192 mm * 64 mm
860 g
5 VDC USB-A

