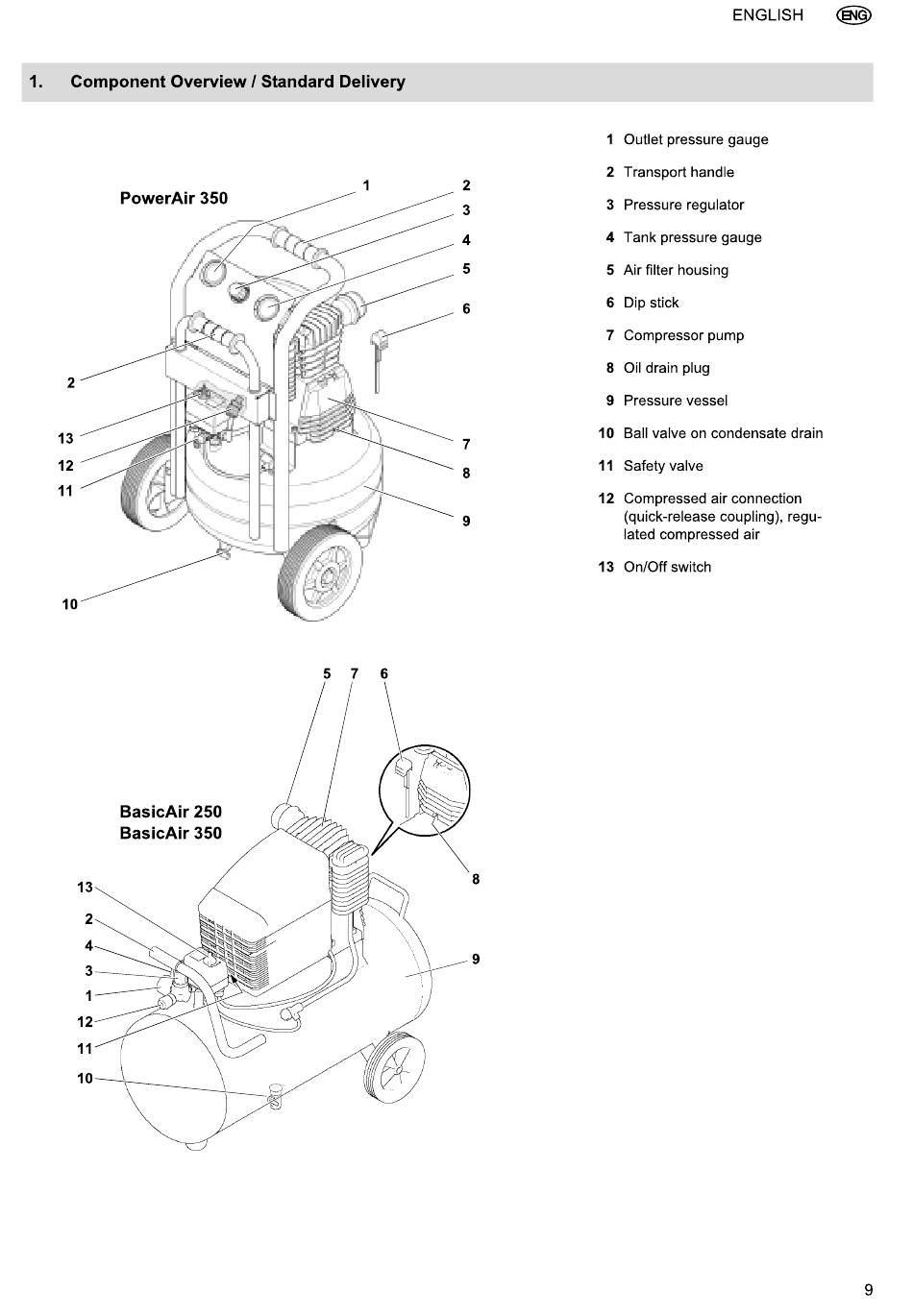

1. Component Overview I Standard
PowerAir 350
2
13
12
11
10
BasicAir 250
BasicAir 350
13
2
4
3
12
11
10
Delivery
1 2
3
4
5
6
7
8
9
6
5 7
8
9
ENGLISH
1 Outlet pressure gauge
2 Transport handle
3 Pressure regulator
4 Tank pressure gauge
Air filter housing
5
6 Dip stick
7 Compressor pump
Oil drain plug
8
9 Pressure vessel
10 Ball valve on condensate
II Safety valve
Compressed air connection
12
(quick-release coupling), regu-
lated compressed air
13 On/Off switch
drain
