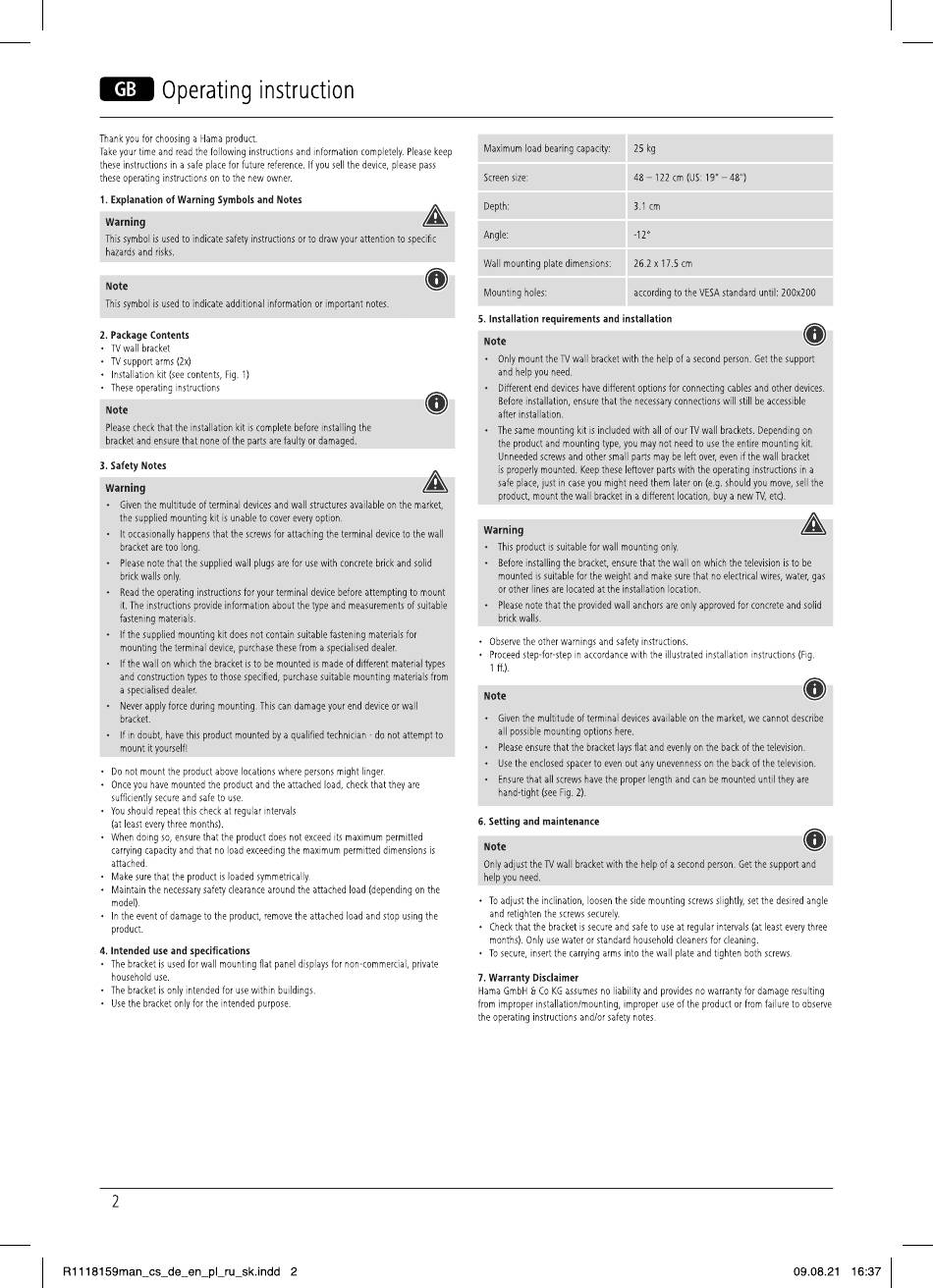

Operating instruction
Thankyou for choosinga Hamaproduct
akeyour time and readthe fol owing instructionsandinformationcompletely Pleasekeep
these instructions ina safe p ace forfuturereference I f you sel thedevice, please pass
theseoperatinginstructionson to the newowner
1. Explanation OfWarningSymbols and Notes
Warning
Thissymbol i s usedto indicatesafetyinstructionsor to drawyour attention to specific
hazards and risks
Note
This symbol is used to indicate a dditional information o rimportant notes
2. PackageContents
• TV wall bracket
• TVsupportarms(2x)
• nstallationkit (seecontents,Fig 1)
hese operating i nstructions
Note
Pleasecheckthat the installationkit iscompletebeforeinstallingthe
bracket andensure t hatnoneofthe parts arefaultyordamaged
3 SafetyNotes
Warning
Given the multitudeof terminaldevices andwall structures availableon the market,
thesupplied mounting k it is unable t o cover every o ption
It occasionally happens t hattheStrews f orattaching t heterminal device to thewal
bracketaretoo long
• Pleasenotethat the suppliedwall plugsare for usewith concretebrick andsolid
brickwal s only
Read theoperating i nstructions foryourterminal device before attempting t o mount
it Theinstructions provide information a bout t hetypeandmeasurements
fasteningmaterials
f thesuppliedmountingkit doesnot containsuitablefasteningmaterials for
mounting t heterminal device, purchase these froma specialised dealer
Ifthewallonwhichthebracket is to bemounted i s made ofdifferent m aterial types
and constructiontypesto thosespecified,purchasesuitablemountingmaterials from
a specialiseddealer
Never apply forceduring mounting This candamage y ourenddevice orwal
bracket
• If indoubt,have thisproduct m ounted b ya qualified technician - donotattempt to
mountit yoursef!
• Do not mountthe productabove locationswherepersonsmightlingen
• Onceyou havemountedthe productandthe attached cad, checkthat theyare
sufficiently secure a ndsafe to use
• Youshoud repeatthis checkat regularintervals
(at leasteverythree months)
• When doingso,ensure t hattheproduct does notexceed itsmaximum permitted
carryingcapacityand that no load exceeding the maximumpermitteddimensionsis
attached
• Make sure thattheproduct is loaded symmetrically
• Maintain thenecessary safety c learance around theattached Oad (depending onthe
model)
• ntheevent O fdamage t o theproduct, remove t heattached Oad andstopusing the
product
4. Intendeduseand specifications
• Thebracket is used torwallmounting f iat panel displays f ornoncommercial, private
household use
• Thebracket is onlyintended f oruse withinbuidings
• Usethe bracketonlyfor the intendedpurpose
2
RI 1 18159man_cs_de_en_p
ru_sk indd
of suitable
-1
2
Maximumload bearingcapacity: 25 kg
Screen size: 48
Depth: 3.1 cm
Angle: -120
Wallmounting p late dimensions: 262x175cm
Mountingholes: accordingto the VESA standarduntil: 200x200
5. Installation requirements and installation
Note
Only mount t heTVwallbracket withthe help Ofa second person Get t hesupport
and helpyou need
Differentenddevices havedifferentoptionsfor connectingcablesandother devices
deforeinstallation,ensurethat the necessary c onnections will still beaccessible
after installation
Thesame mounting k it is included w ithall ofourTVwallbrackets D epending on
the productand mountingtype,you maynot needto usethe entiremountingkit.
unneeded s crews andothersrnall p artsrnay be eftover, e ven if thewallbracket
is properly m ounted Keep theseeftover p arts withthe operating i nstructions ina
safeplace,just in caseyou might needthem lateron (e.g.shouldyou move, s ellthe
product,mountthe wall bracketin a differentlocation,buy a newTV,etc)
Warning
This product issuitable forwallmounting O nly
Before installing thebracket, ensure t hatthewallon which thetelevision i sto be
mountedissuitablefor the weight and makesurethat no electrical w ires,water,gas
or other lines are located at the installation location
Please n otethattheprovided w allanchors a reonlyapproved forconcrete a ndsolid
brick walls
• Observe theotherwarnings a ndsafety instructions
• Proceed step-for-step in accordance withtheillustrated i nstallation i nstructions (Fig
Iff)
Note
Giventhe multitudeOfterminaldevicesavailableon the market,we Cannotdescribe
all possiblemountingoptions here
• Pleaseensurethat the bracketlaysflat andevenlyon the back of the television
Usethe enclosedspacerto evenout any unevenness o n the back of the television
Ensure that all screwshavethe properlength andcan be mounteduntilthey are
hand-tight (see Fig 2)
6. Setting and maintenance
Note
Onlyadjustthe TVwall bracketwith the help of a secondperson Getthe supportand
help youneed
o adjustthe inclination,loosenthe sidemountingscrewsslightly,setthe desiredangle
andretighten t hescrews s ecurely
• Checkthat the bracketissecureandsafeto useat regularintervals(at easteverythree
months) Onlyusewateror standardhouseholdcleanersfor cleaning
• TO secure, insert t hecarrying a rms intothewallplate andtightenbothscrews
7. Warranty Disclaimer
Harna GmbH 8 CoKGassumes noliability andprovides n owarranty f ordamage resulting
fromimproper installation/mounting, improper use ofthe product orfromfailure to observe
the operatinginstructionsand/orsafetynotes
