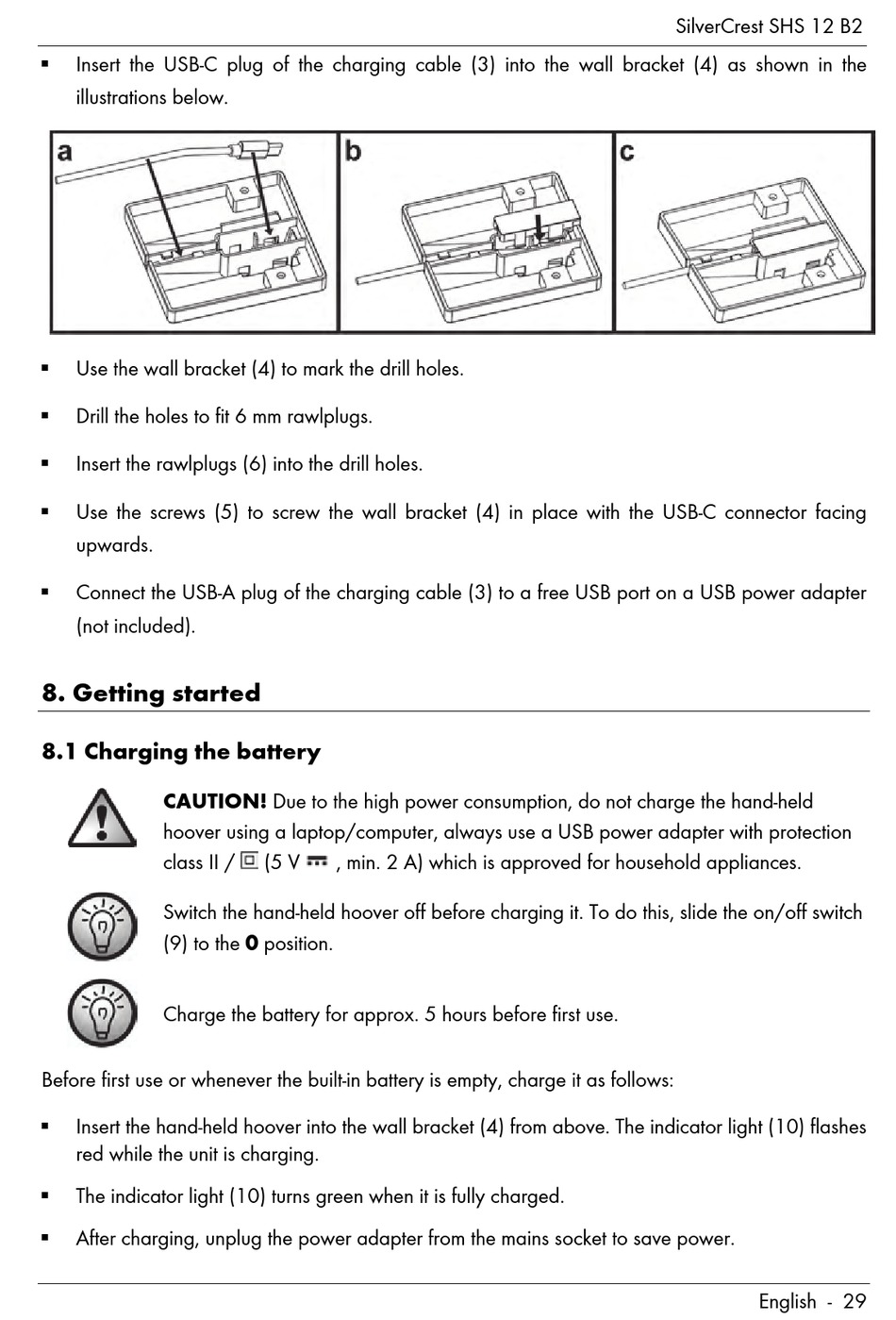

Silvercrest SHS 12 B2 Bedienungsanleitung Und Sicherheitshinweise Seite 31


Insert the USB-C plug of the charging cable (3) into the wall bracket (4) as shown in the
illustrations below.

Use the wall bracket (4) to mark the drill holes.

Drill the holes to fit 6 mm rawlplugs.

Insert the rawlplugs (6) into the drill holes.

Use the screws (5) to screw the wall bracket (4) in place with the USB-C connector facing
upwards.

Connect the USB-A plug of the charging cable (3) to a free USB port on a USB power adapter
(not included).
8. Getting started
8.1 Charging the battery
CAUTION! Due to the high power consumption, do not charge the hand-held
hoover using a laptop/computer, always use a USB power adapter with protection
class II /
Switch the hand-held hoover off before charging it. To do this, slide the on/off switch
(9) to the 0 position.
Charge the battery for approx. 5 hours before first use.
Before first use or whenever the built-in battery is empty, charge it as follows:

Insert the hand-held hoover into the wall bracket (4) from above. The indicator light (10) flashes
red while the unit is charging.

The indicator light (10) turns green when it is fully charged.

After charging, unplug the power adapter from the mains socket to save power.
(5 V , min. 2 A) which is approved for household appliances.
SilverCrest SHS 12 B2
English - 29
