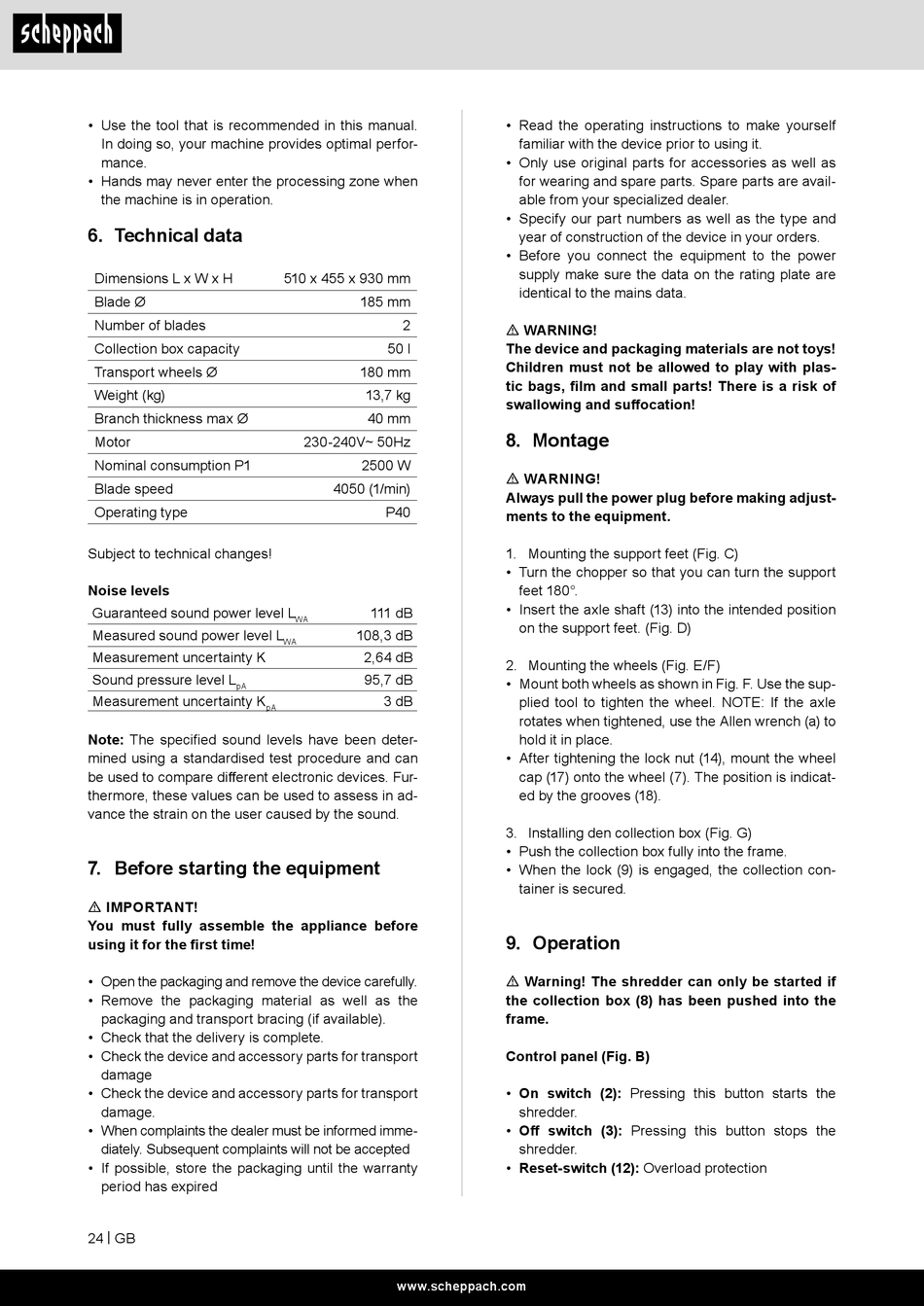

Scheppach GS59 Originalbetriebsanleitung Seite 24

• Use the tool that is recommended in this manual.
In doing so, your machine provides optimal perfor-
mance.
• Hands may never enter the processing zone when
the machine is in operation.
6. Technical data
Dimensions L x W x H
Blade Ø
Number of blades
Collection box capacity
Transport wheels Ø
Weight (kg)
Branch thickness max Ø
Motor
Nominal consumption P1
Blade speed
Operating type
Subject to technical changes!
Noise levels
Guaranteed sound power level L
Measured sound power level L
Measurement uncertainty K
Sound pressure level L
pA
Measurement uncertainty K
Note: The specified sound levels have been deter-
mined using a standardised test procedure and can
be used to compare different electronic devices. Fur-
thermore, these values can be used to assess in ad-
vance the strain on the user caused by the sound.
7. Before starting the equipment
m IMPORTANT!
You must fully assemble the appliance before
using it for the first time!
• Open the packaging and remove the device carefully.
• Remove the packaging material as well as the
packaging and transport bracing (if available).
• Check that the delivery is complete.
• Check the device and accessory parts for transport
damage
• Check the device and accessory parts for transport
damage.
• When complaints the dealer must be informed imme-
diately. Subsequent complaints will not be accepted
• If possible, store the packaging until the warranty
period has expired
24 | GB
510 x 455 x 930 mm
185 mm
2
50 l
180 mm
13,7 kg
40 mm
230-240V~ 50Hz
2500 W
4050 (1/min)
P40
111 dB
WA
108,3 dB
WA
2,64 dB
95,7 dB
3 dB
pA
www.scheppach.com
• Read the operating instructions to make yourself
familiar with the device prior to using it.
• Only use original parts for accessories as well as
for wearing and spare parts. Spare parts are avail-
able from your specialized dealer.
• Specify our part numbers as well as the type and
year of construction of the device in your orders.
• Before you connect the equipment to the power
supply make sure the data on the rating plate are
identical to the mains data.
m WARNING!
The device and packaging materials are not toys!
Children must not be allowed to play with plas-
tic bags, film and small parts! There is a risk of
swallowing and suffocation!
8. Montage
m WARNING!
Always pull the power plug before making adjust-
ments to the equipment.
1. Mounting the support feet (Fig. C)
• Turn the chopper so that you can turn the support
feet 180°.
• Insert the axle shaft (13) into the intended position
on the support feet. (Fig. D)
2. Mounting the wheels (Fig. E/F)
• Mount both wheels as shown in Fig. F. Use the sup-
plied tool to tighten the wheel. NOTE: If the axle
rotates when tightened, use the Allen wrench (a) to
hold it in place.
• After tightening the lock nut (14), mount the wheel
cap (17) onto the wheel (7). The position is indicat-
ed by the grooves (18).
3. Installing den collection box (Fig. G)
• Push the collection box fully into the frame.
• When the lock (9) is engaged, the collection con-
tainer is secured.
9. Operation
m Warning! The shredder can only be started if
the collection box (8) has been pushed into the
frame.
Control panel (Fig. B)
• On switch (2): Pressing this button starts the
shredder.
• Off switch (3): Pressing this button stops the
shredder.
• Reset-switch (12): Overload protection
