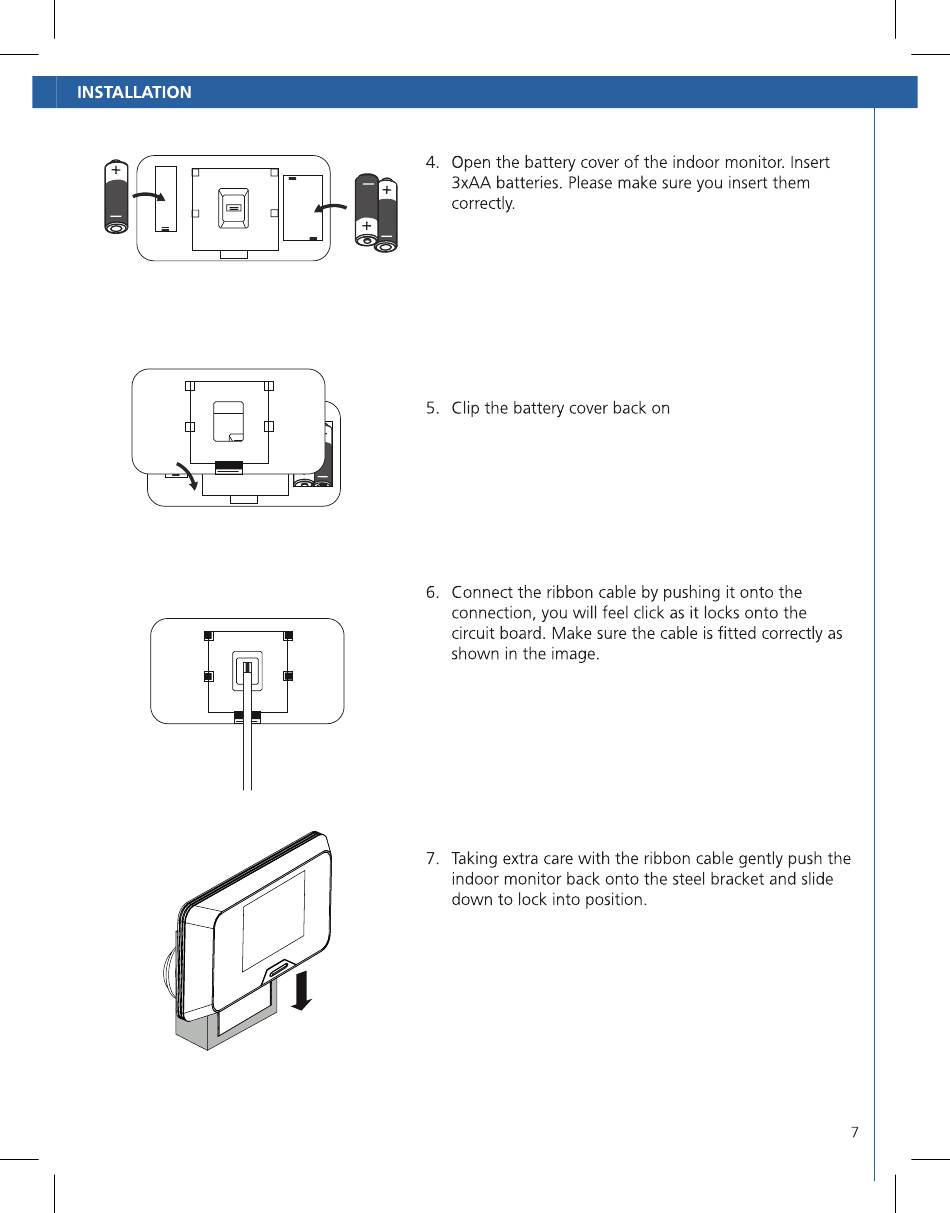

INSTALLATION
Open the battery cover of the indoor monitor. Insert
4.
3xAA batteries. Please make sure you insert them
correctly.
Clip the battery cover back on
5.
Connect the ribbon cable by pushing it onto the
6.
connection, you will feel click as it locks onto the
circuit board. Make sure the cable is fitted correctly as
shown in the image.
Taking extra care with the ribbon cable gently push the
7.
indoor monitor back
down to lock into position.
onto the steel bracket and slide
7
