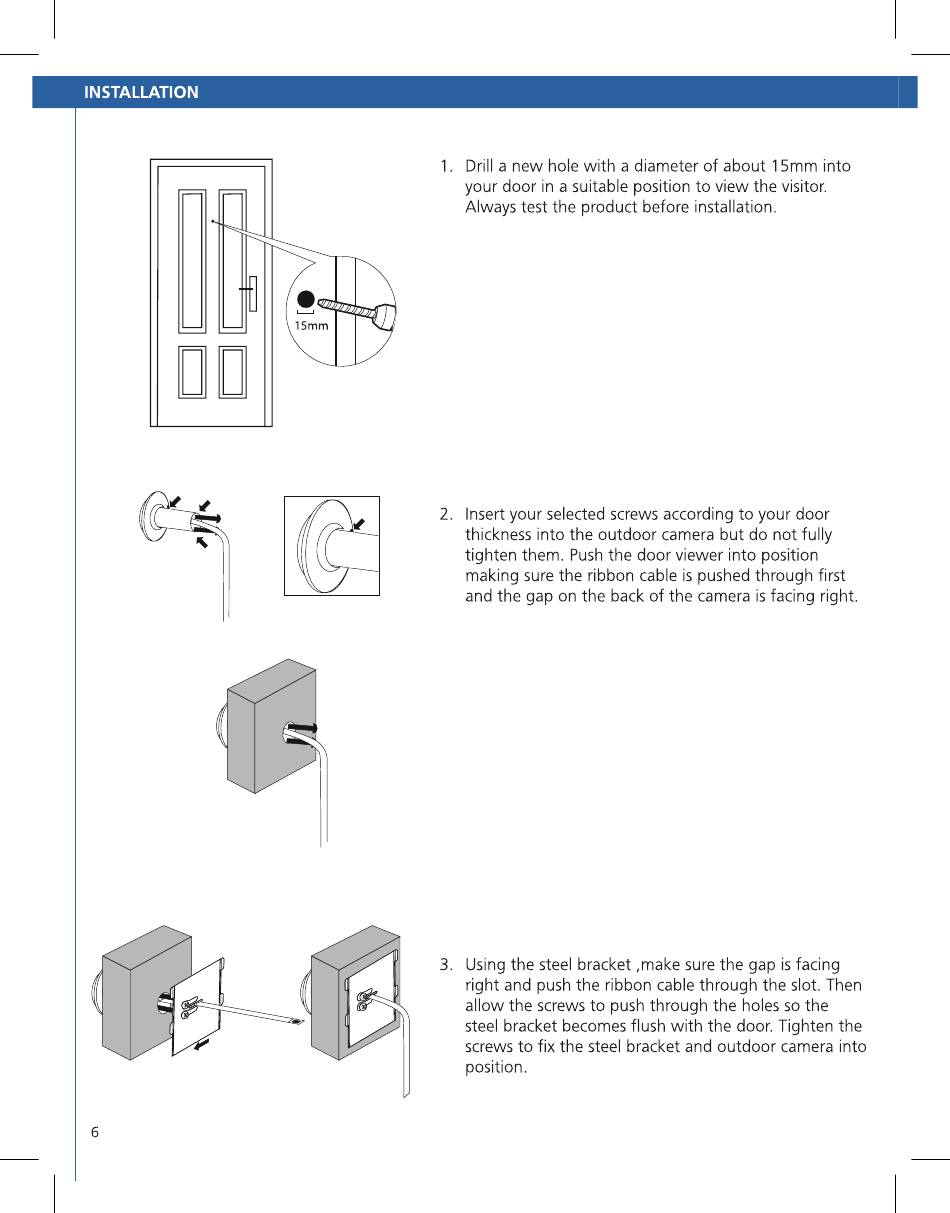

INSTALLATION
6
. Drill a new hole with a diameter
your door in a sultable position to 'v'lewthe visitor.
Always test the product before installation.
15mm
2. Insert your selected screws according to your door
thickness into the outdoor camera but do not ful y
tighten them. Pushthe door viewer into position
making sure the ribbon cable is pushed through first
and the gap on the back of the camera is facing right.
Using the steel bracket ,make sure the gap is facing
3.
right and push the ribbon cable through the slot. Then
allow the screws to push through the holes so the
steel bracket becomes flush with the door. Tighten the
screws
position.
to fix the steel bracket and outdoor
of about 15mm Into
camera into
