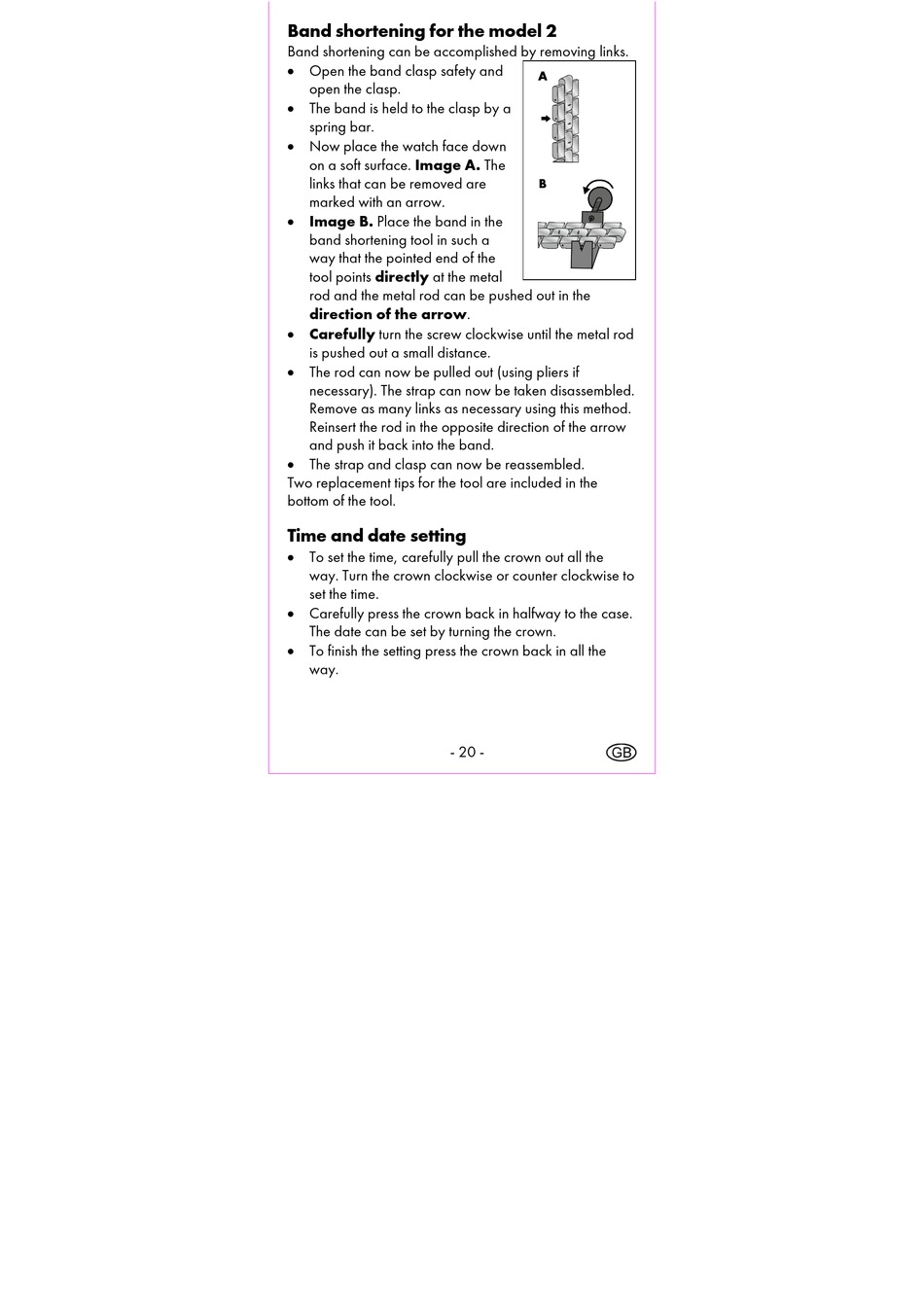

Band shortening for the model 2
Band shortening can be accomplished by removing links.
 Open the band clasp safety and
open the clasp.
 The band is held to the clasp by a
spring bar.
 Now place the watch face down
on a soft surface. Image A. The
links that can be removed are
marked with an arrow.
 Image B. Place the band in the
band shortening tool in such a
way that the pointed end of the
tool points directly at the metal
rod and the metal rod can be pushed out in the
direction of the arrow.
 Carefully turn the screw clockwise until the metal rod
is pushed out a small distance.
 The rod can now be pulled out (using pliers if
necessary). The strap can now be taken disassembled.
Remove as many links as necessary using this method.
Reinsert the rod in the opposite direction of the arrow
and push it back into the band.
 The strap and clasp can now be reassembled.
Two replacement tips for the tool are included in the
bottom of the tool.
Time and date setting
 To set the time, carefully pull the crown out all the
way. Turn the crown clockwise or counter clockwise to
set the time.
 Carefully press the crown back in halfway to the case.
The date can be set by turning the crown.
 To finish the setting press the crown back in all the
way.
