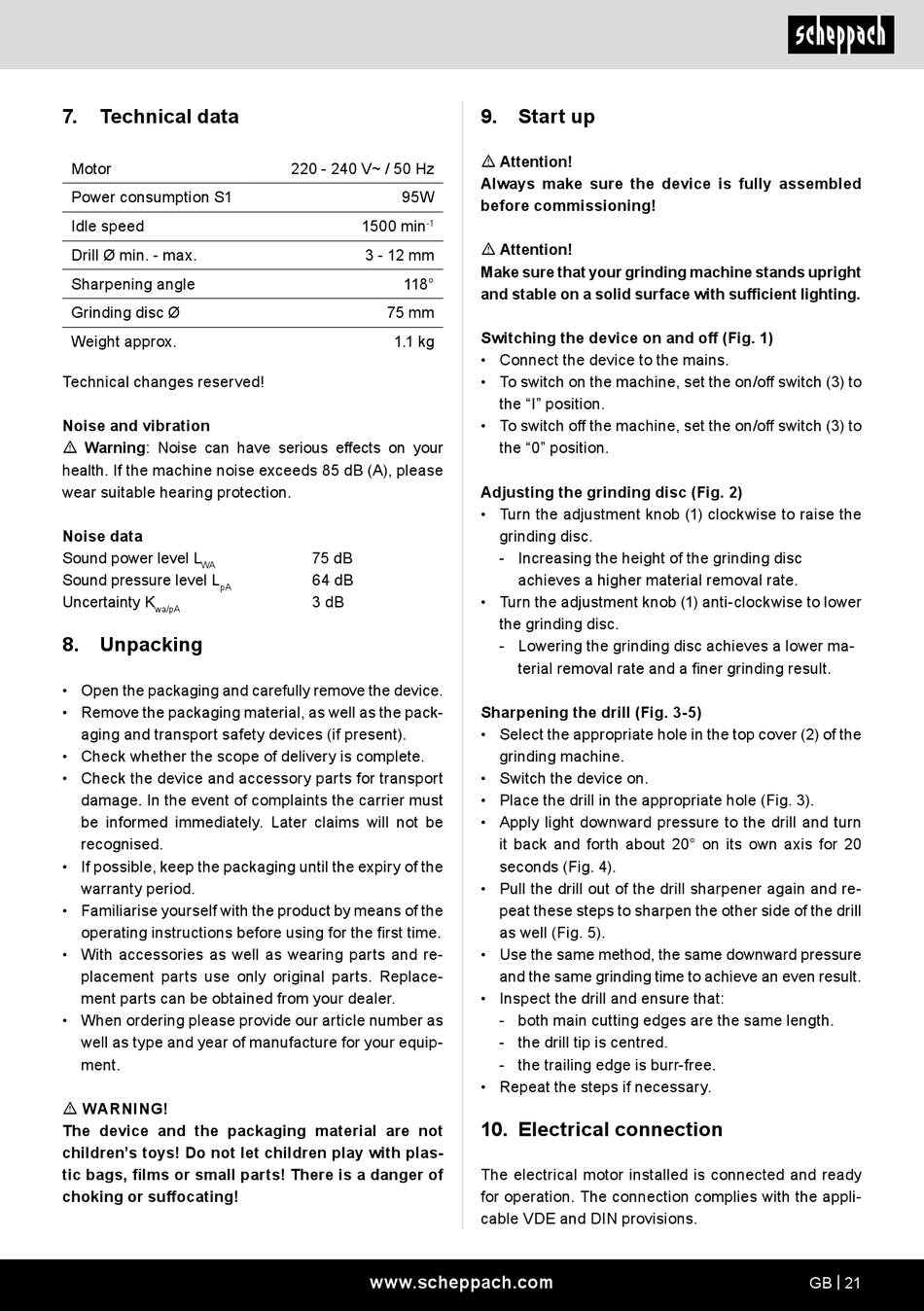

Scheppach DBS900 Originalbetriebsanleitung Seite 21

7. Technical data
Motor
Power consumption S1
Idle speed
Drill Ø min. - max.
Sharpening angle
Grinding disc Ø
Weight approx.
Technical changes reserved!
Noise and vibration
m Warning: Noise can have serious effects on your
health. If the machine noise exceeds 85 dB (A), please
wear suitable hearing protection.
Noise data
Sound power level L
WA
Sound pressure level L
pA
Uncertainty K
wa/pA
8. Unpacking
• Open the packaging and carefully remove the device.
• Remove the packaging material, as well as the pack-
aging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the device and accessory parts for transport
damage. In the event of complaints the carrier must
be informed immediately. Later claims will not be
recognised.
• If possible, keep the packaging until the expiry of the
warranty period.
• Familiarise yourself with the product by means of the
operating instructions before using for the first time.
• With accessories as well as wearing parts and re-
placement parts use only original parts. Replace-
ment parts can be obtained from your dealer.
• When ordering please provide our article number as
well as type and year of manufacture for your equip-
ment.
m WARNING!
The device and the packaging material are not
children's toys! Do not let children play with plas-
tic bags, films or small parts! There is a danger of
choking or suffocating!
220 - 240 V~ / 50 Hz
95W
1500 min
-1
3 - 12 mm
118°
75 mm
1.1 kg
75 dB
64 dB
3 dB
www.scheppach.com
9. Start up
m Attention!
Always make sure the device is fully assembled
before commissioning!
m Attention!
Make sure that your grinding machine stands upright
and stable on a solid surface with sufficient lighting.
Switching the device on and off (Fig. 1)
• Connect the device to the mains.
• To switch on the machine, set the on/off switch (3) to
the "I" position.
• To switch off the machine, set the on/off switch (3) to
the "0" position.
Adjusting the grinding disc (Fig. 2)
• Turn the adjustment knob (1) clockwise to raise the
grinding disc.
- Increasing the height of the grinding disc
achieves a higher material removal rate.
• Turn the adjustment knob (1) anti-clockwise to lower
the grinding disc.
- Lowering the grinding disc achieves a lower ma-
terial removal rate and a finer grinding result.
Sharpening the drill (Fig. 3-5)
• Select the appropriate hole in the top cover (2) of the
grinding machine.
• Switch the device on.
• Place the drill in the appropriate hole (Fig. 3).
• Apply light downward pressure to the drill and turn
it back and forth about 20° on its own axis for 20
seconds (Fig. 4).
• Pull the drill out of the drill sharpener again and re-
peat these steps to sharpen the other side of the drill
as well (Fig. 5).
• Use the same method, the same downward pressure
and the same grinding time to achieve an even result.
• Inspect the drill and ensure that:
- both main cutting edges are the same length.
- the drill tip is centred.
- the trailing edge is burr-free.
• Repeat the steps if necessary.
10. Electrical connection
The electrical motor installed is connected and ready
for operation. The connection complies with the appli-
cable VDE and DIN provisions.
