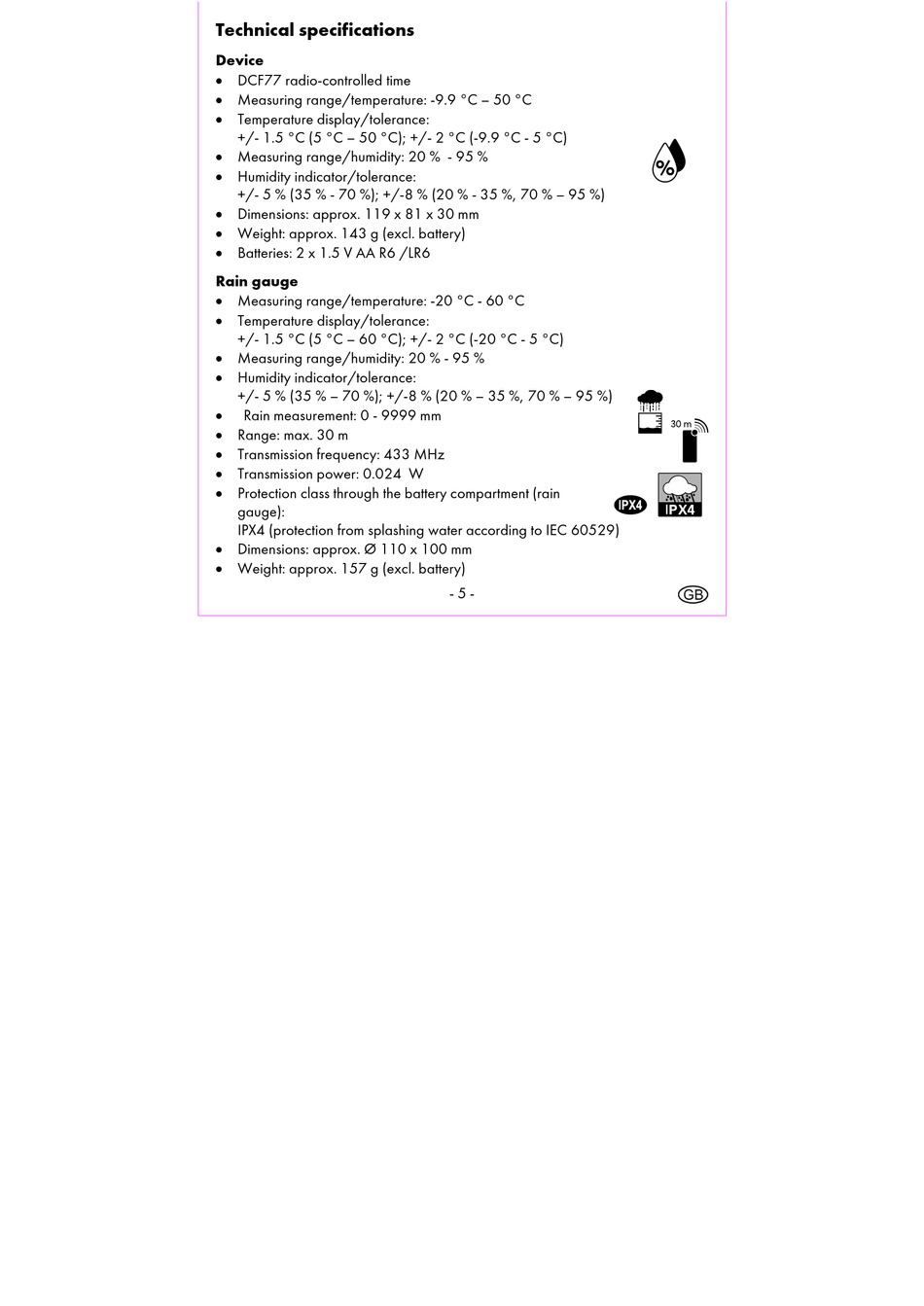

Technical specifications
Device
 DCF77 radio-controlled time
 Measuring range/temperature: -9.9 °C – 50 °C
 Temperature display/tolerance:
+/- 1.5 °C (5 °C – 50 °C); +/- 2 °C (-9.9 °C - 5 °C)
 Measuring range/humidity: 20 % - 95 %
 Humidity indicator/tolerance:
+/- 5 % (35 % - 70 %); +/-8 % (20 % - 35 %, 70 % – 95 %)
 Dimensions: approx. 119 x 81 x 30 mm
 Weight: approx. 143 g (excl. battery)
 Batteries: 2 x 1.5 V AA R6 /LR6
Rain gauge
 Measuring range/temperature: -20 °C - 60 °C
 Temperature display/tolerance:
+/- 1.5 °C (5 °C – 60 °C); +/- 2 °C (-20 °C - 5 °C)
 Measuring range/humidity: 20 % - 95 %
 Humidity indicator/tolerance:
+/- 5 % (35 % – 70 %); +/-8 % (20 % – 35 %, 70 % – 95 %)
Rain measurement: 0 - 9999 mm

 Range: max. 30 m
 Transmission frequency: 433 MHz
 Transmission power: 0.024 W
 Protection class through the battery compartment (rain
gauge):
IPX4 (protection from splashing water according to IEC 60529)
 Dimensions: approx. Ø 110 x 100 mm
 Weight: approx. 157 g (excl. battery)
- 5 -
