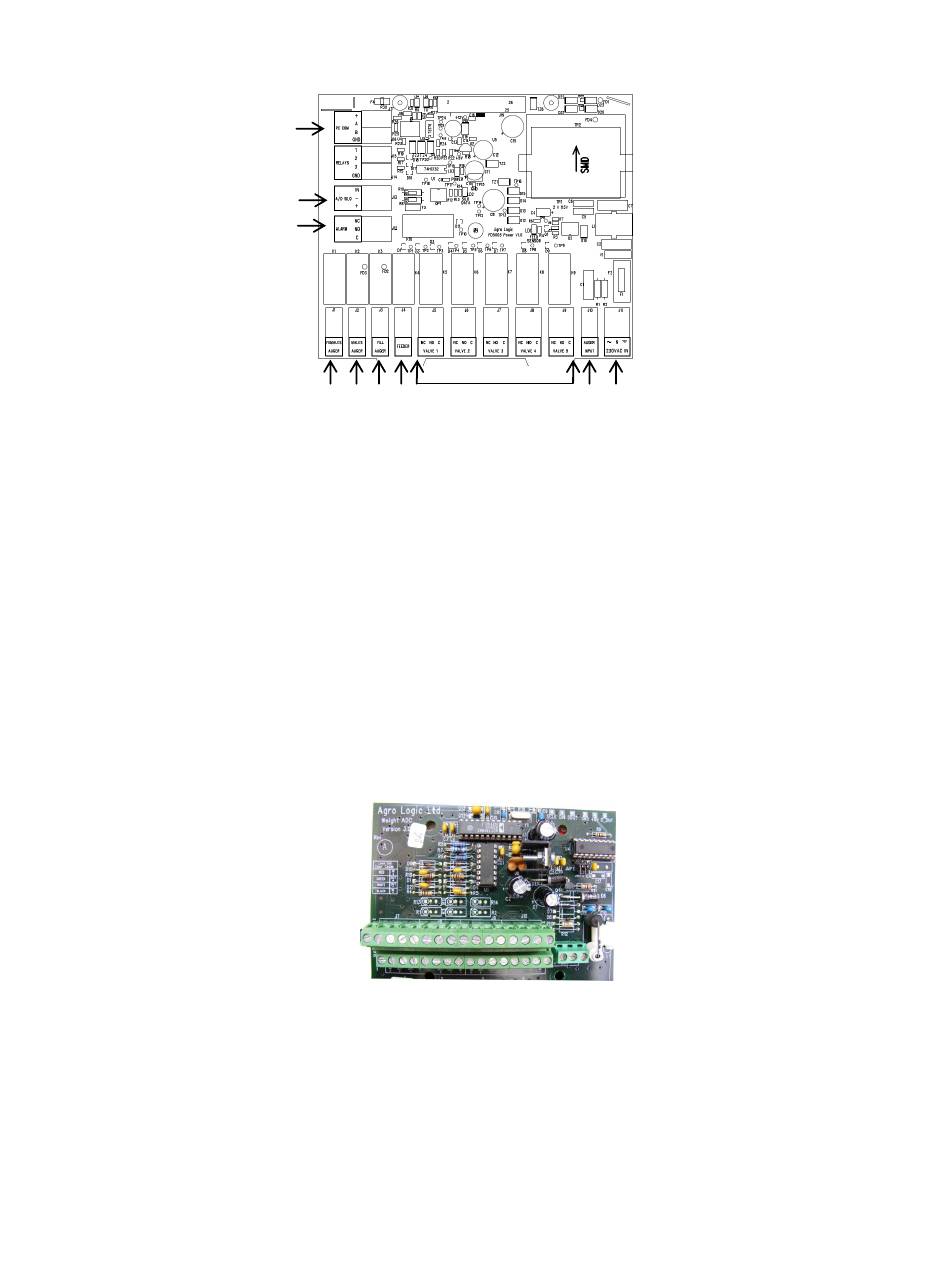

Main Board

1. Female auger output connector.
2. Male auger output connector.
3. Fill auger output connector.
4. Feeder output connector.
5. Electric feed valves 1-5 output connectors (male hoppers).
6. Auger 24VDC input.
7. 230VAC main power input.
8. PC communication output connector.
9. A/D silo card input / output connector.
10. Alarm output connector.

A/D Silo Box and Card

Roxell Daybin Controller – RDC
8
9
10
1 2 3 4
Page 4 of 193
5 6 7
