Silo hardware connection

Check that the concrete floor is level and has been built using high grade
reinforced concrete.
Stand the silo on the concrete. Be sure to take into account the angle and distance the feed
auger will be from the house.

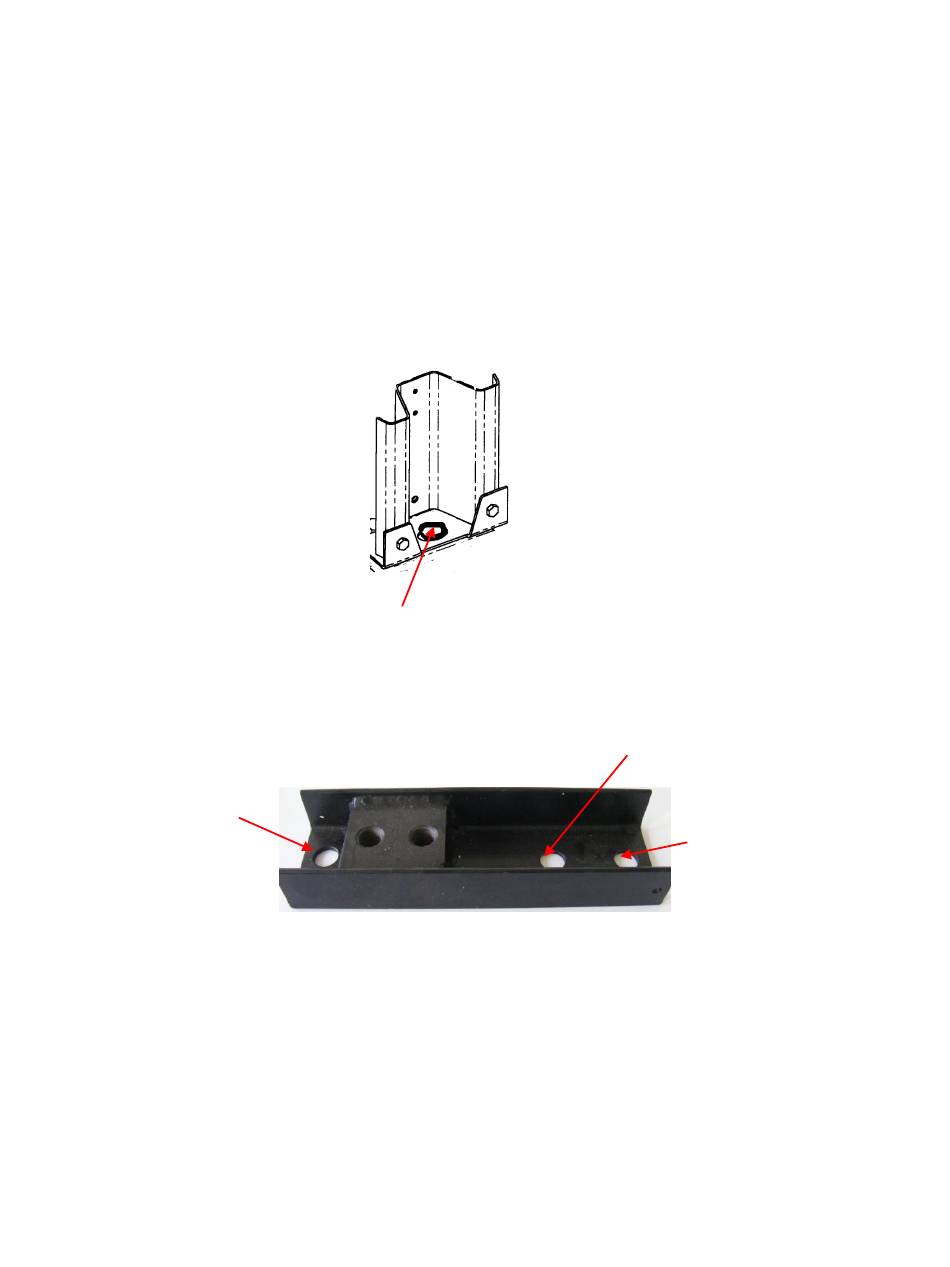

Using the holes in the silo leg plates, mark their location on the concrete floor.
Remove the silo and place the supplied Base on the concrete floor.
Align the second hole with the marking on the concrete.
The base will be connected to the concrete floor using two ¾‟ bolts.
Base unit
Secure the base by using a 3/4
inch bolt.
Roxell Daybin Controller – RDC
Page 27 of 193
Align the second base hole
above the marked hole on the
concrete.
Secure the base by using a 3/4
inch bolt.
