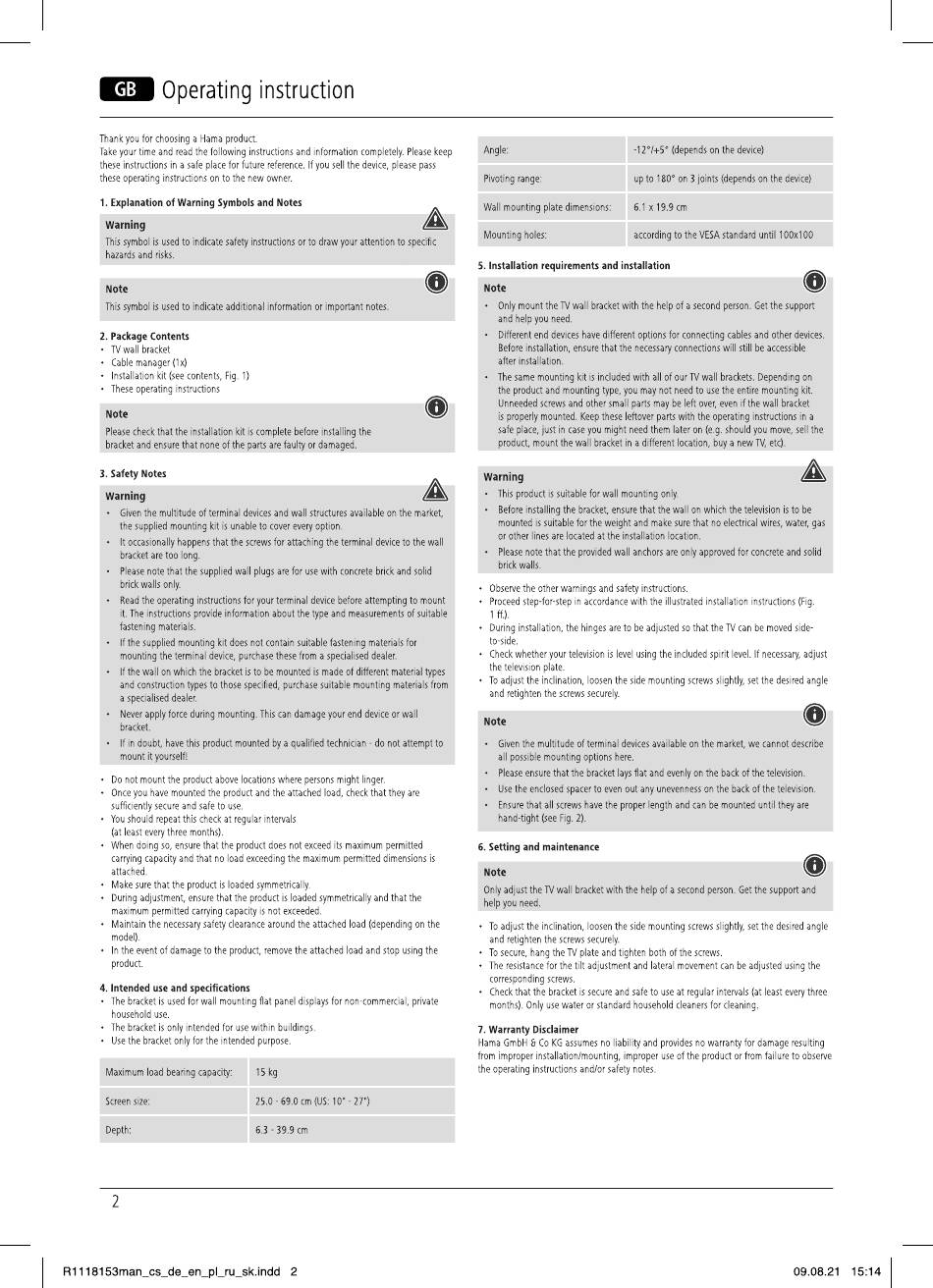

Operating instruction
Thankyou for choosinga Hamaproduct
akeyour time and readthe fol owing instructionsandinformationcompletely Pleasekeep
these instructions ina safe p ace forfuturereference I f you sel thedevice, please pass
theseoperatinginstructionson to the newowner
1. Explanation of WarningSymbols and Notes
Warning
Thissymbol i s usedto indicatesafetyinstructionsor to drawyour attentionto specific
hazards and risks
Note
This symbol is used to indicate a dditional information O rimportant notes
2. Package Contents
• TV wall bracket
• Cable rnanager (lx)
Installation k it (see contents, Fig 1)
heseoperatinginstructions
Note
Please c heck thattheinstallation k it iscomplete before i nstalling the
bracket andensure t hatnoneofthe parts arefautyordamaged
3 Safety Notes
Warning
Given the multitudeof terminaldevices andwall structures availableon the market,
the suppliedmountingkit is unableto coverevery option
It occasionally happensthatthe screwsfor attachingthe terminaldeviceto the wal
bracket aretoo long
Please n ote thatthesupplied w allplugs areforuse withconcrete b rickandsolid
brickwalls only.
Readthe operatinginstructionsfor your terminaldevicebeforeattempting to mount
it Theinstructions provide inforrnation about t hetypeandmeasurements
fastening materials
Ifthe supplied m ounting k it does notcontain suitable f astening materials for
mountingtheterminaldevice,purchase thesefroma specialised dealer
f thewall on which the bracketis to be mountedis madeof different materialtypes
andconstruction types to those specified, purchase s uitable mounting m aterials from
a specialiseddealer.
Neverapplyforce duringmounting Thiscan damageyour enddeviceorwal
bracket
If indoubt,have thisproduct m ounted b ya qualified technician - donotattempt to
mount i t yourself!
• DO notmount t heproduct above locations where persons m ight l inger
• Onceyou havemountedthe productandthe attachedload, checkthat theyare
sufficiently secureand safeto use
• You shou d repeat t hischeck at regular i ntervals
(at leasteverythree months)
• Whendoing so,ensurethat the productdoesnot exceedits maximumpermitted
carrying c apacity andthatnoloadexceeding themaximum permitted d imensions is
attached
• Makesurethat the productis loadedsymmetrically
• During adjustment, ensure t hattheproduct is loaded symmetrically
maximumpermittedcarryingcapacityisnot exceeded
• Maintainthe necessary s afetyclearance aroundthe attached Oad(depending on the
model)
• Intheevent o f damage t o theproduct, remove t heattached l oadandstopusing the
product
4. Intendeduseand specifications
• Thebracketis usedfor wall mountingflat paneldisplaysfor non commercial, p rivate
household use
• Thebracket is onlyintended f oruse withinbuidings
• Usethe bracketonlyfor the intendedpurpose
Maximum Oad bearing capacity:
Screen size:
Depth:
2
RI 1 18153man_cs_de_en_p
ru_sk indd
of suitable
andthatthe
15kg
250 69.0 cm(US:10" -27")
63-39
2
Angle: -120/+50(dependson the device)
Pivotingrange: upto 1800 on3joints(depends onthedevice)
Wallmounting p late dimensions: 61 x 199tm
Mountingholes: accordingto the VESA standarduntil 100*100
5. Installationrequirements and installation
Note
Onlymountthe TVwall bracketwith the helpof a secondperson Getthe support
andhelp youneed
Different enddevices have different options f orconnecting cables andotherdevices
Beforeinstallation,ensurethat the necessary c onnections will still beaccessible
after installation
Thesame mounting k it is included w ithall Of o urTVwallbrackets D epending on
the productand mountingtype,you maynot needto usethe entiremountingkit
Unneededscrews and other smallparts maybe leftover,evenif thewall bracket
is properly m ounted Keep these leftover p arts withtheoperating i nstructions ina
safe place, j ustincase youmightneed themlater o n (eg should youmove, sellthe
product,mountthe wall bracketin a differentlocation,buy a newTV,etc)
Warning
This product issuitable forwallmounting o nly
Before installing thebracket, ensure t hatthewallon whichthetelevision i sto be
mounted issuitable fortheweight a ndmake sure that noelectrical wires, w ater, g as
or other lines are located at the installation location
Pleasenote that the providedwall anchorsareonly approvedfor concreteand solid
brick walls
• Observe the other warningsand safetyinstructions
• Proceed stepfor-step i n accordance withtheillustrated i nstallation i nstructions (Fig
• Duringinstallation,the hingesare to be adjustedsothat the TVcan be movedside
to-Side
• Checkwhetheryourtelevisionis levelusingthe includedspirit evel If necessary, adjust
the televisionplate
• TO adjust t heinclination, loosen thesidemounting s crews s lightly, set t hedesired a ngle
and retightenthe screwssecurely
Note
Giventhe multitudeof terminaldevicesavailableon the market,we cannot describe
all possible m ounting o ptions here
Please e nsure t hatthebracket l ays flatandevenly onthebackofthetelevision
• Usethe enclosedspacerto evenout any unevenness o n the back of the television
Ensure that all screwshavethe properlength andcan be mounteduntilthey are
hand-tight (see Fig 2)
6. Settingand maintenance
Note
Onlyadjustthe TVwall bracketwith the help of a secondperson.Getthe supportand
help youneed
• To adjustthe indination, loosenthe sidemountingscrewsslightly,setthe desiredangle
and retightenthe screwssecurely
• Tosecure, hangtheTVplate andtightenbothofthe screws
• Theresistance for the tilt adjustmentand lateralmovementcan beadjustedusingthe
corresponding screws
• Check t hatthebracket i ssecure a ndsafe to use at regular intervals ( at east e very three
months).Onlyusewateror standardhouseholdcleanersfor cleaning
7. WarrantyDisclaimer
Hama GmbH 8 CoKGassumes noliability andprovides n owarranty f ordamage resulting
fromimproperinstallation/mounting,improperuseof the productorfrom failure to observe
theoperating i nstructions and/or s afety notes
