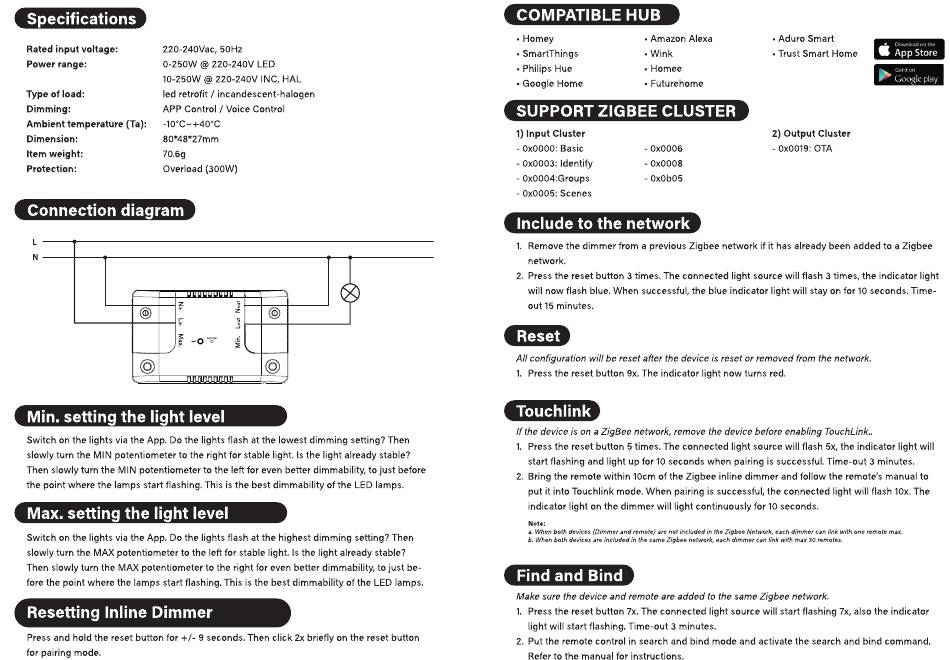

Specifications
Rated input voltage:
220-240Vac,
Power range:
0-250W
@ 220-240V
10-250W
@ 220-240V
Type of load:
led retrofit / incandescent-halogen
Dimming:
APP Control
Ambient temperature
(Ta):
-100C-+400C
Dimension:
Item weight:
70,6g
Overload (300W)
Protection:
Connection
diagram
O
Min. setting the light level
Switch on the lights via the App. Do the lights flash at the lowest dimming setting? Then
slowly turn the MIN potentiometer to the right for stable light. Is the light already stable?
Then slowly turn the MIN potentiometer to the left for even better dimmability, to just before
the point where the lamps start flashing. This is the best dimmability of the LED lamps.
Max. setting the light level
Switch on the lights via the App. Do the lights flash at the highest dimming setting? Then
slowly turn the MAX potentiometer to the left for stable light. Is the light already stable?
Then slowly turn the MAX potentiometer to the right for even better dimmability, to just be-
fore the point where the lamps start flashing. This is the best dimmability of the LED lamps.
Resetting
Inline Dimmer
Press and hold the reset button for +/- 9 seconds. Then click 2x briefly on the reset button
for pairing mode.
50Hz
LED
INC, HAL
/ Voice Control
COMPATIBLE
HUB
• Homey
• Amazon
Alexa
• SmartThings
• Wink
• Philips Hue
• Homee
• Google Home
• Futurehome
SUPPORT
ZIGBEE
CLUSTER
1) Input Cluster
- OXOOOO: Basic
- ox0006
- OX0003: Identify
- ox0008
- ox0004:Groups
- oxob05
- OX0005:
Scenes
Include
to the
network
1. Remove the dimmer from a previous Zigbee network if it has already been added to a Zigbee
network.
2 Press the reset button 3 times. The connected light source will flash 3 times, the indicator light
will now flash blue. When successful, the blue indicator light will stay on for 10 seconds. Time-
out 15 minutes.
Reset
All configuration will be reset after the device is reset or removed from the network,
1. Press the reset button 9x, The indicator light now turns red,
Touchlink
If the device is on a ZigBee network, remove the device before enabling TouchLink„
1. Press the reset button 5 times. The connected light source will flash 5x, the indicator light will
start flashing and light up for 10 seconds when pairing is successful. Time-out 3 minutes.
2. Bring the remote within IOcm of the Zigbee inline dimmer and follow the remote's manual to
put it into Touchlink mode. When pairing is successful, the connected light will flash lox. The
indicator light on the dimmer will light continuously for 10 seconds.
a.When borh devices (Dimmerand remote)are not included in rheZigbee Network, each dimmer Canfink Withone remote
b. When both devices are included in the same Zigbee
Find
and
Bind
Make sure the device and remote are added to the same Zigbee network,
1. Press the reset button 7x, The connected light source will start flashing 7x, also the indicator
light will start flashing. Time-out 3 minutes.
2, Put the remote
control
in search and bind mode and activate
Refer to the manual for instructions.
• Aduro Smart
• Trust
Smart
Home
2) Output Cluster
- OX0019:
OTA
each dimmer Can'ink With
30 remotes.
the search
and bind command.
App Store
play
