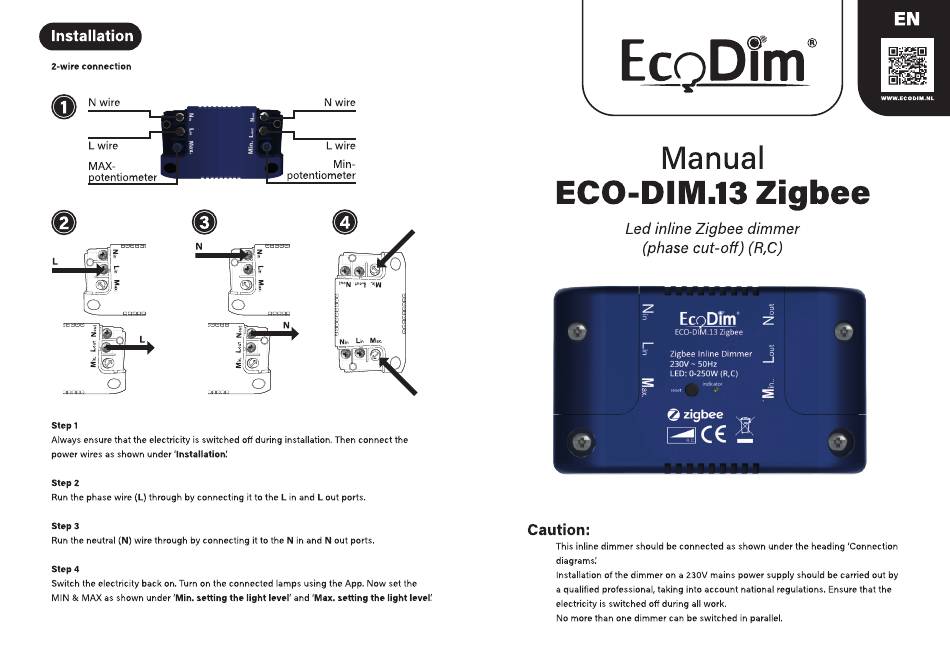

Installation
2-wire connection
N wire
L wire
MAX-
otentiometer
o
o
step 1
Always ensure that the electricity is switched off during installation, Then connect the
power wires as shown under 'Installation.'
step 2
Run the phase wire (L) through by connecting it to the L in and L out ports.
step 3
Run the neutral (N) wire through by connecting it to the N in and N out ports.
Step 4
Switch the electricity back on. Turn on the connected lamps using the App. Now set the
MIN & MAX as shown under 'Min. setting the light level' and 'Max. setting the light level.'
N wire
L wire
Min-
potentiometer
Lin
O
Manual
ECO-DIM-13
Led inline Zigbee dimmer
(phase cut-off) (R,C)
ECO-DI .13 Zigbee
Zigbee Inline Dimmer
230V - 50HZ
LED: 0-250W (R.C)
O zigbee
Caution:
This inline dimmer should be connected as shown under the heading 'Connection
diagrams.'
Installation of the dimmer on a 230V mains power supply should be carried out by
a qualified professional, taking into account national regulations. Ensure that the
electricity is switched off during all work.
No more than one dimmer can be switched in parallel.
