COMPACT

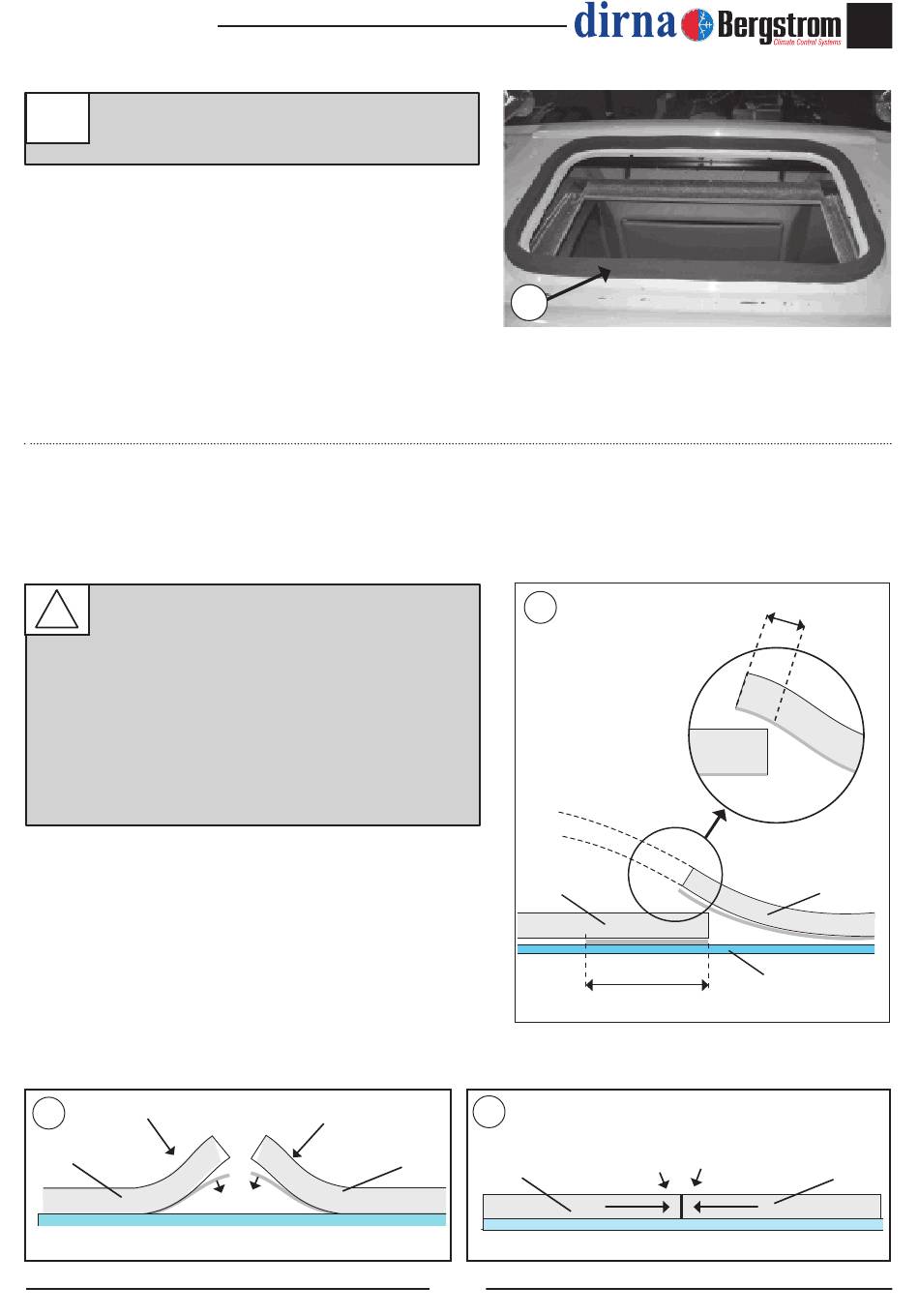

Glue EPDM gasket around hatch hole (see
3
detail for cutting end join edges).
HOW TO CUT EPDM GASKET TO AVOID
!
WATER FILTRATION INTO THE CABIN
A- Glue gasket, keeping 100 mm of protection
paper at each side.
B- Remove the two pieces of paper.
C- Glue by pressing both ends.
B
Gasket
Junta
Remove
Air conditioning for vehicles
3
A
Gasket
100 mm Approx. (protection paper)
C
Junta
17
EN
15 mm
Gasket
Cabin roof
Gasket
