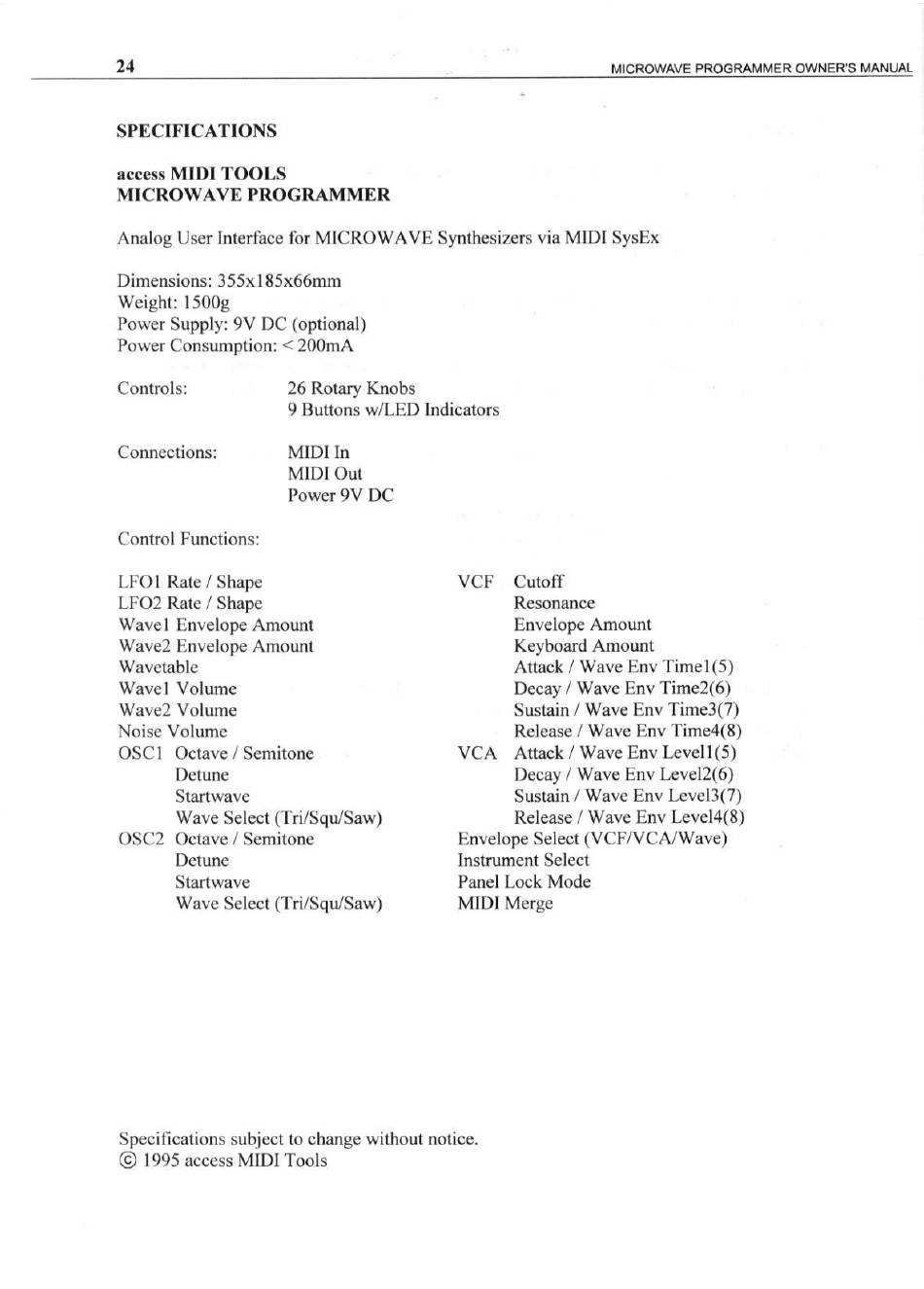

SPECIFICATIONS

access MIDl TOOLS
MICROWAVE PROGRAMMER
Analog User Interface for MICROWAVE Synthesizers via MIDl sysEx
Dimensions: 355x185x66mm
Weight: 1500g
Power Supply: 9V DC (optional)
Power Consumption: < 200mA
26 Rotary Knobs
Controls:
9 Buttons
Connections: MIDl
MIDl
Power
Control Functions:
LFOI Rate / Shape
LF02 Rate / Shape
Wavel Envelope Amount
Wave2 Envelope Amount
Wavetable
Wavel Volume
Wave2 Volume
Noise Volume
OSCI Octave / Semitone
Detune
Startwave
Wave Select (Tri/Squ/Saw)
OSC2 Octave / Semitone
Detune
Startwave
Wave Select (Tri/Squ/Saw)
Specifications subject to change without notice.
@ 1995 access MIDl Tools
w/LED Indicators
In
Out
9V DC
VCF
VCA
Envelope Select (VCF/VCA/Wave)
Instrument
Panel Lock
MIDl Merge
MICROWAVE
Cutoff
Resonance
Envelope Amount
Keyboard Amount
Attack / Wave Env Timel(5)
Decay / Wave Env Time2(6)
Sustain / Wave Env Time3(7)
Release / Wave Env Time4(8)
Attack / Wave Env Level 1(5)
Decay / Wave Env Leve12(6)
Sustain / Wave Env Leve13(7)
Release / Wave Env Leve14(8)
Select
Mode
PROGRAMMER OWNER'S MANUAL
