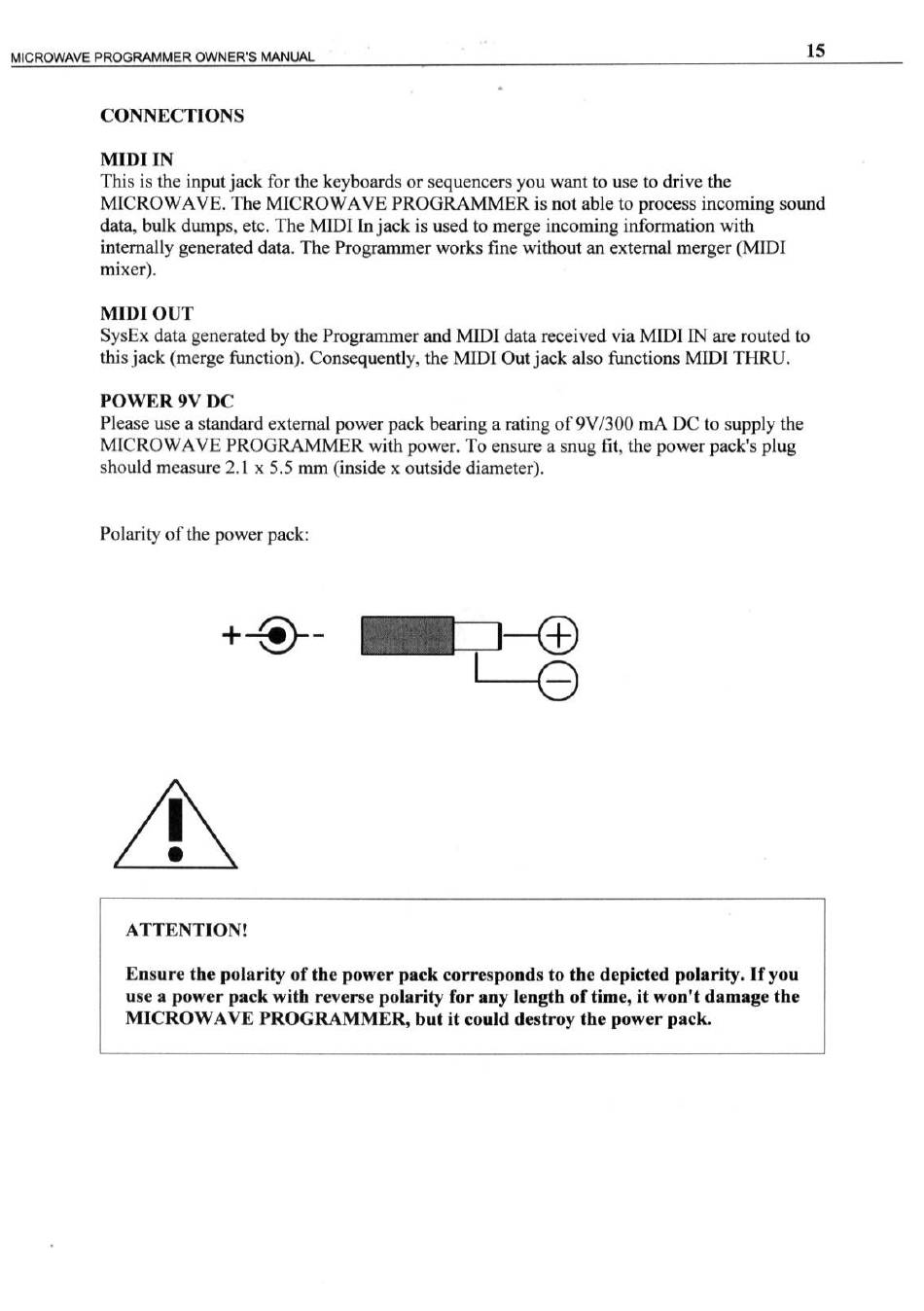

MICROWAVE PROGRAMMER

CONNECTIONS

MIDl IN
This is the input jack for the keyboards or sequencersyou want to use to drive the
MICROWAVE. The MICROWAVE PROGRAMMER is not able to process incoming sound
data, bulk dumps, etc. The MIDI In jack is used to merge incoming information with
internally generateddata. The Programmer works fine without an external merger (MIDI
mixer).
MIDl OUT
SysEx data generated by the Programmer and MIDI data received via MIDI IN are routed to
this jack (mergefunction). Consequently,the MIDI Out jack also functions MIDI THRU.
POWER 9V DC
Pleaseuse a standardexternal power pack bearing a rating of 9V/300 mA DC to supply the
MICROWAVE PROGRAMMER with power. To ensure a snug fit, the power pack's plug
should measure 2.1 x 5.5 mm (inside x outside diameter).
Polarity of the power pack:
ATTENTION!
Ensure the polarity of the power pack corresponds to the depicted polarity. If you
use a power pack with reverse polarity for any length of time, it won't damage the
MICROWAVE
OWNERS MANUAL
PROGRAMMER, but it could destroy the power pack.
15
