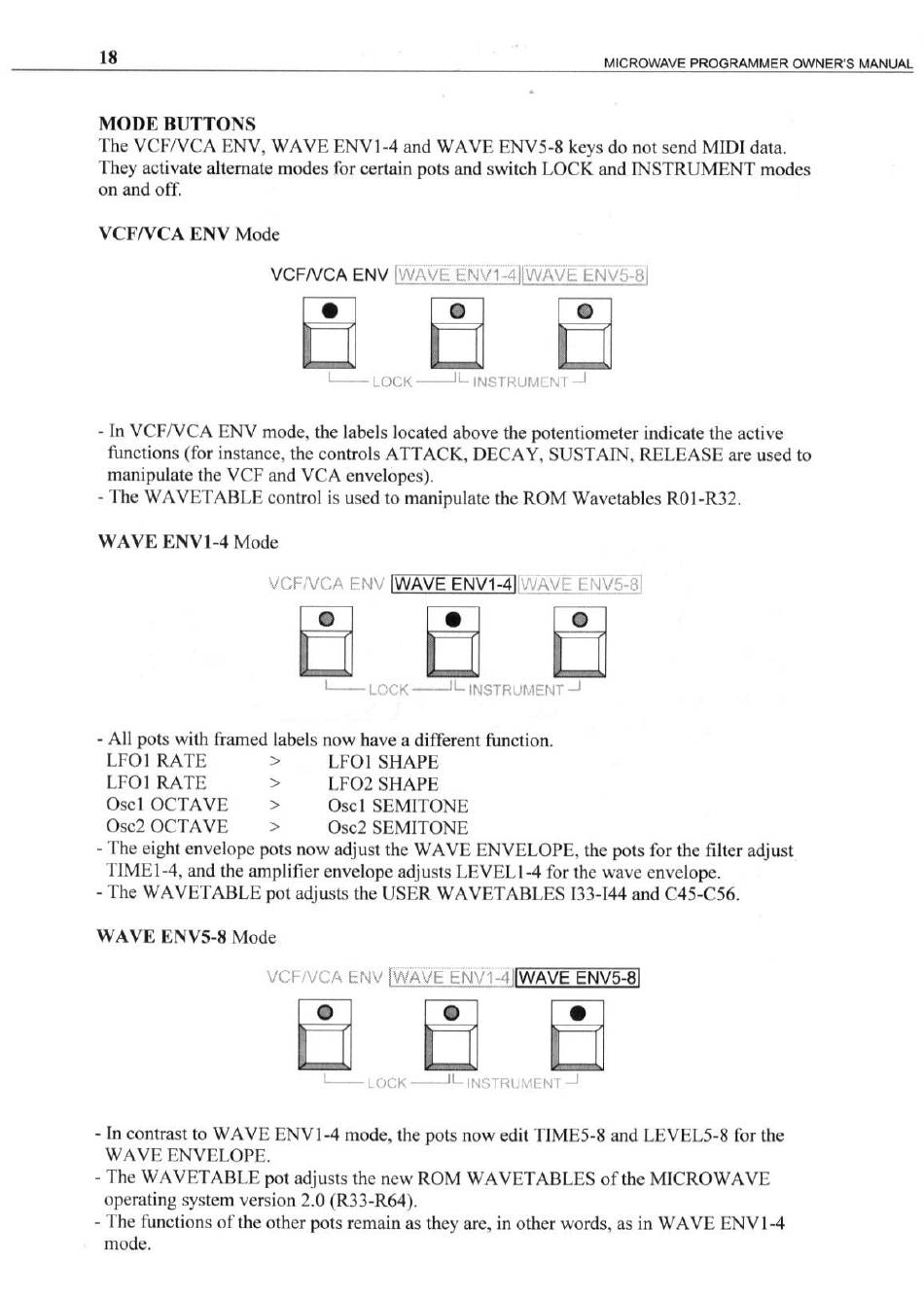

MODE BUTTONS
The VCF/VCA ENV, WAVE ENVI-4 and WAVE ENV5-8 keys do not sendMIDl data.
They activate alternate modes for certain pots and switch LOCK and INSTRUMENT modes
on and off.
VCF/VCA ENV Mode
- In VCF/VCA ENV mode, the labels located abovethe potentiometer indicate the active
functions (for instance, the controls ATTACK, DECAY, SUSTAIN, RELEASE are used to
manipulate the VCF and VCA envelopes).
- The WAVETABLE control is usedto manipulate the ROM WavetablesROI-R32.
WAVE ENVI-4 Mode
VCF/VCA
- All pots with framed labels now have a different function.
LFOI RATE
LFOI RATE
osci OCTAVE
osc2 OCTAVE
- The eightenvelopepotsnow adjustthe WAVE ENVELOPE,thepots for the filter adjust
TIME I -4, andthe amplifier envelopeadjustsLEVELI -4 for the wave envelope.
- The WAVETABLE pot adjuststhe USER WAVETABLES 133-144 and C45-C56.
WAVE ENV5-8 Mode
VCF!VCA
- In contrast to WAVE ENVI -4 mode, the pots now edit TIME5-8 and LEVEL5-8 for the
WAVE ENVELOPE.
- The WAVETABLE pot adjuststhe new ROM WAVETABLES ofthe MICROWAVE
operating systemversion 2.0 (R33-R64).
- The functions of the other pots remain asthey are,in other words, asin WAVE ENV 1-4
mode.
VCF/VCA ENV
LOCK
ENV
WAVE
O
LOCK —...—----.-.JL--
LFOI SHAPE
LF02 SHAPE
osci SEMITONE
osc2 SEMITONE
ENV WAVE
o
o
LOCK ----..—---JL-
MICROWAVE
O
O
INSTRIJtv1CNT—J
'WAVE ENV5-8
ENVI-4
O
—J
ENVI-4
—J
