Assembly Instructions
..........................................................................................................................................................
STEP 3
REQUIRED
T-Track
Channel Right
Channel Left
2 x Footplate
Foot Leveler [7]
8 x M8x45mm Blots [16]
Footplate
Channel Left
Channel Right

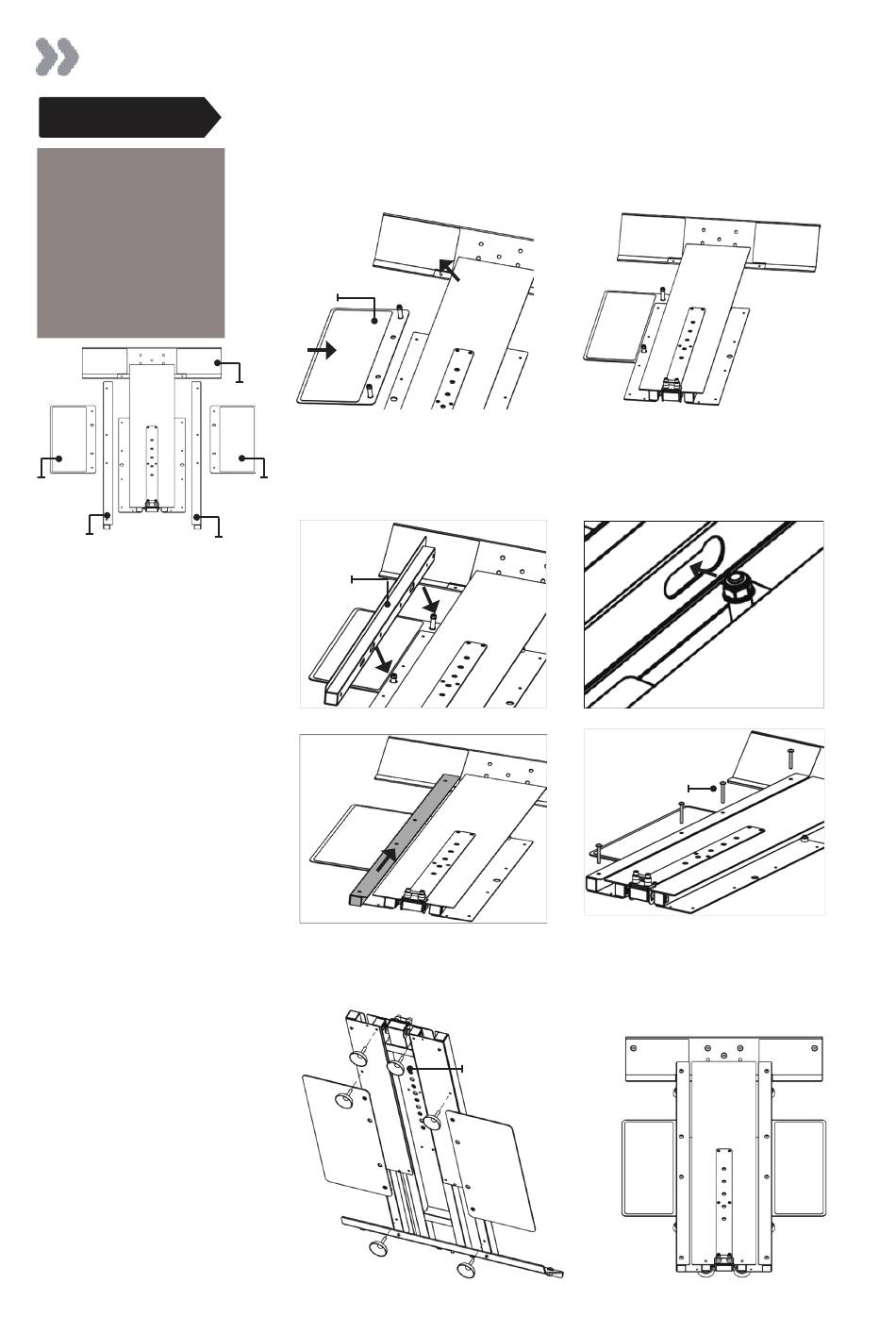

Installing the Baseplate
A) Tilt the T-Channel slightly to allow the Footplate (with pre-installed
Bolts) to slide underneath as shown.
1)
Footplate
T-Track
B) Mount the Left Channel over the top of the Footplate dome Bolts
and then slide forward. Once Channel is properly positioned, attach
to T-Track using 4x M8x45 mm Bolts[16]. Repeat this procedure to
Footplate
install Right Footplate and Channel.
1)
Left
Channel
3)
Slide Channel
forward
C) Stand Baseplate upright to install 6x Foot Leveler[7] as shown.
Once Foot Levelers are installed, the completed Baseplate can be
installed onto the Main Frame of the E850.
1)
2)
T-Track
2)
4)
8x45mmBolts
2)
Foot Levelers
7
Channel Slot
Completed Baseplate
