Assembly Instructions
..........................................................................................................................................................

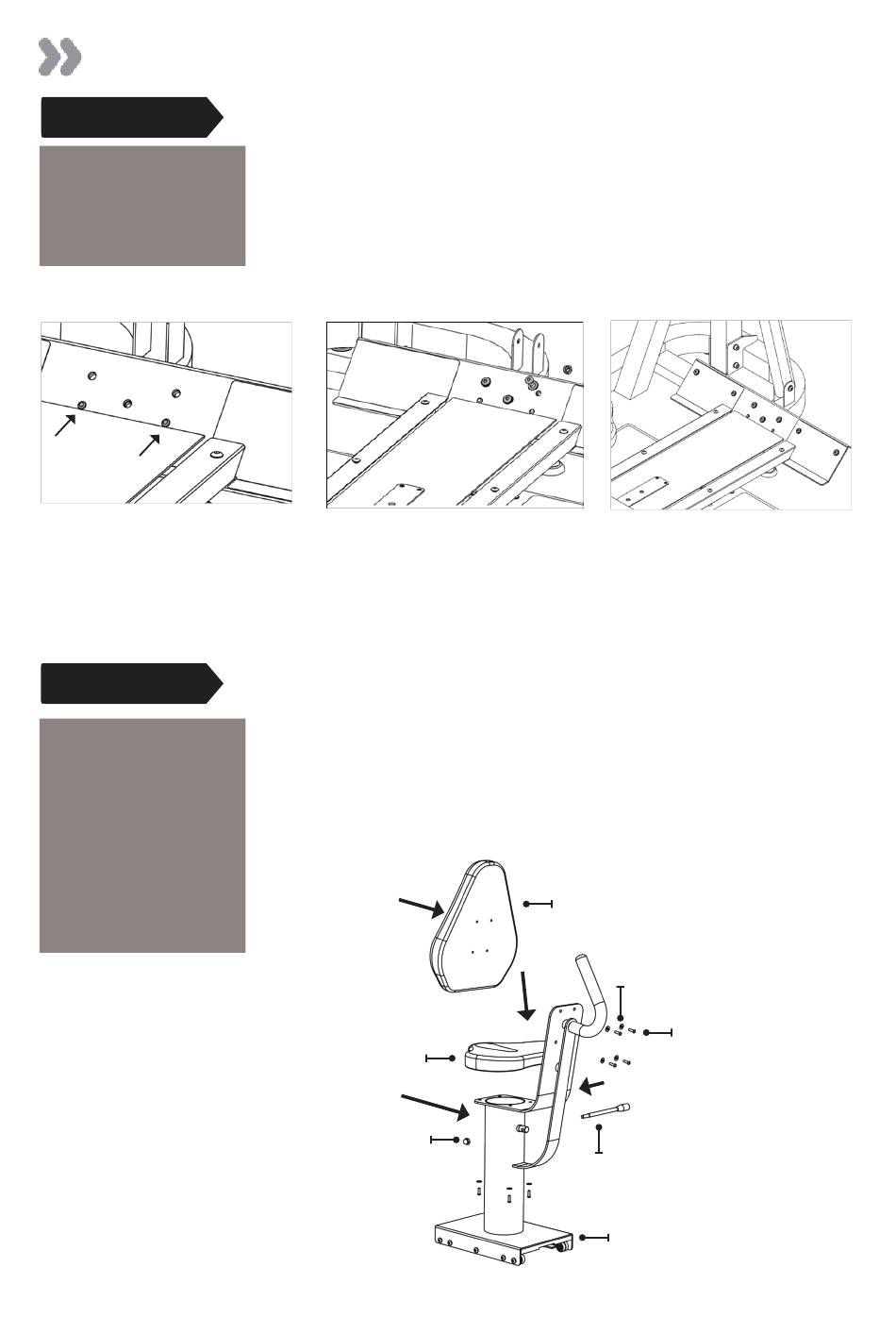

STEP 4
REQUIRED
3 x M10x20mm Bolt [17]
2 x M10 Nylock Nut [18]
3 x M10 Washer [20]
1)
Mounting bolts on the E850 main
unit.
STEP 5
REQUIRED
Seat Frame [3]
Seat Back [4]
Lower Seat [5]
Handle Bar & Dome Nut [13]
4 x M6x20mm Bolts [14]
2 x M10 Nut Dome Nut [18]
4 x M6 Washer [19]
Installing Baseplate to the Main Frame
Mount the baseplate onto the Main Frame using mounting pins as a
locator
Then, secure with 3x M10x20mm Bolt[17], 2x M10 Nylock Nut[18] and
3x M10 Washer[20]. Note : Center M10 Bolt does not require Nut.
2)
Base plate to main unit
3x M10x25mm screws, 3x M10
lock nuts and 2x M10 washers.
Seat Assembly and Installing Seat to the Main Frame
A) Thread the Handle Bar[13] through the Shaft
B) Tighten the Handle Bar[13] with the M10 Dome Nut[18].
C) Install Seat Back[4] with 4x M6x20 Bolts[14] and M6 Washer[19].
D) Install Lower Seat[5] with 4x M6x20 Bolts[14] and M6 Washer[19].
C)
Lower Seat
B)
M10 Nut Dome Head
Seat Back
D)
Handle Bar
8
3)
M6 Washer
M6 x 20mm Bolt
A)
Seat Frame
