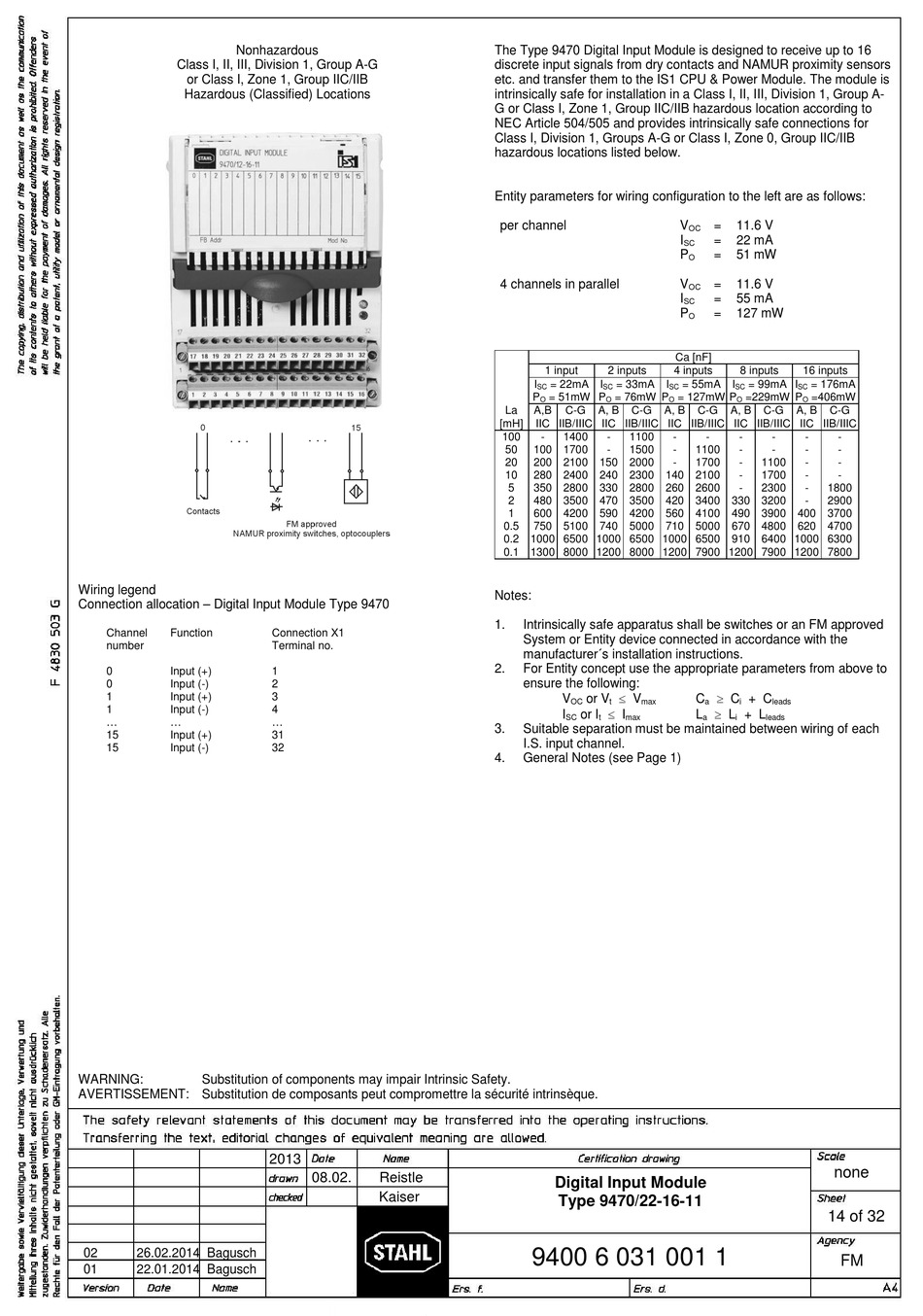

Stahl IS1 Betriebsanleitung Seite 16

Nonhazardous
Class I, II, III, Division 1, Group A-G
or Class I, Zone 1, Group IIC/IIB
Hazardous (Classified) Locations
Wiring legend
Connection allocation – Digital Input Module Type 9470
Channel Function
number
0 Input (+)
0 Input (-)
1 Input (+)
1 Input (-)
... ...
15 Input (+)
15 Input (-)
WARNING: Substitution of components may impair Intrinsic Safety.
AVERTISSEMENT: Substitution de composants peut compromettre la sécurité intrinsèque.
02 26.02.2014 Bagusch
01 22.01.2014 Bagusch
Connection X1
Terminal no.
1
2
3
4
...
31
32
2013
08.02. Reistle
Kaiser
The Type 9470 Digital Input Module is designed to receive up to 16
discrete input signals from dry contacts and NAMUR proximity sensors
etc. and transfer them to the IS1 CPU & Power Module. The module is
intrinsically safe for installation in a Class I, II, III, Division 1, Group A-
G or Class I, Zone 1, Group IIC/IIB hazardous location according to
NEC Article 504/505 and provides intrinsically safe connections for
Class I, Division 1, Groups A-G or Class I, Zone 0, Group IIC/IIB
hazardous locations listed below.
Entity parameters for wiring configuration to the left are as follows:
per channel
4 channels in parallel
1 input 2 inputs
I = 22mA I = 33mA I
SC SC SC
P = 51mW P = 76mW P
O O O
La A,B C-G A, B C-G A, B
[mH] IIC IIB/IIIC IIC IIB/IIIC IIC
100 - 1400 - 1100
50 100 1700 - 1500
20 200 2100 150 2000
10 280 2400 240 2300 140
5 350 2800 330 2800 260
2 480 3500 470 3500 420
1 600 4200 590 4200 560
0.5 750 5100 740 5000 710
0.2 1000 6500 1000 6500 1000
0.1 1300 8000 1200 8000 1200
Notes:
1. Intrinsically safe apparatus shall be switches or an FM approved
System or Entity device connected in accordance with the
manufacturer´s installation instructions.
2. For Entity concept use the appropriate parameters from above to
ensure the following:
 V
V or V
OC t max
 I
I or I
SC t max
3. Suitable separation must be maintained between wiring of each
I.S. input channel.
4. General Notes (see Page 1)
Digital Input Module
Type 9470/22-16-11
9400 6 031 001 1
V = 11.6 V
OC
I = 22 mA
SC
P = 51 mW
O
V = 11.6 V
OC
I = 55 mA
SC
P = 127 mW
O
Ca [nF]
4 inputs 8 inputs 16 inputs
= 55mA I = 99mA I = 176mA
SC SC
= 127mW P =229mW P =406mW
O O
C-G A, B C-G A, B C-G
IIB/IIIC IIC IIB/IIIC IIC IIB/IIIC
- - - - - -
- 1100 - - - -
- 1700 - 1100 - -
2100 - 1700 - -
2600 - 2300 - 1800
3400 330 3200 - 2900
4100 490 3900 400 3700
5000 670 4800 620 4700
6500 910 6400 1000 6300
7900 1200 7900 1200 7800
 C
C + C
a i leads
 L
L + L
a i leads
none
14 of 32
FM
