Digital Input Module NAMUR Ex i Inputs, 16 Channels Series 9470/22

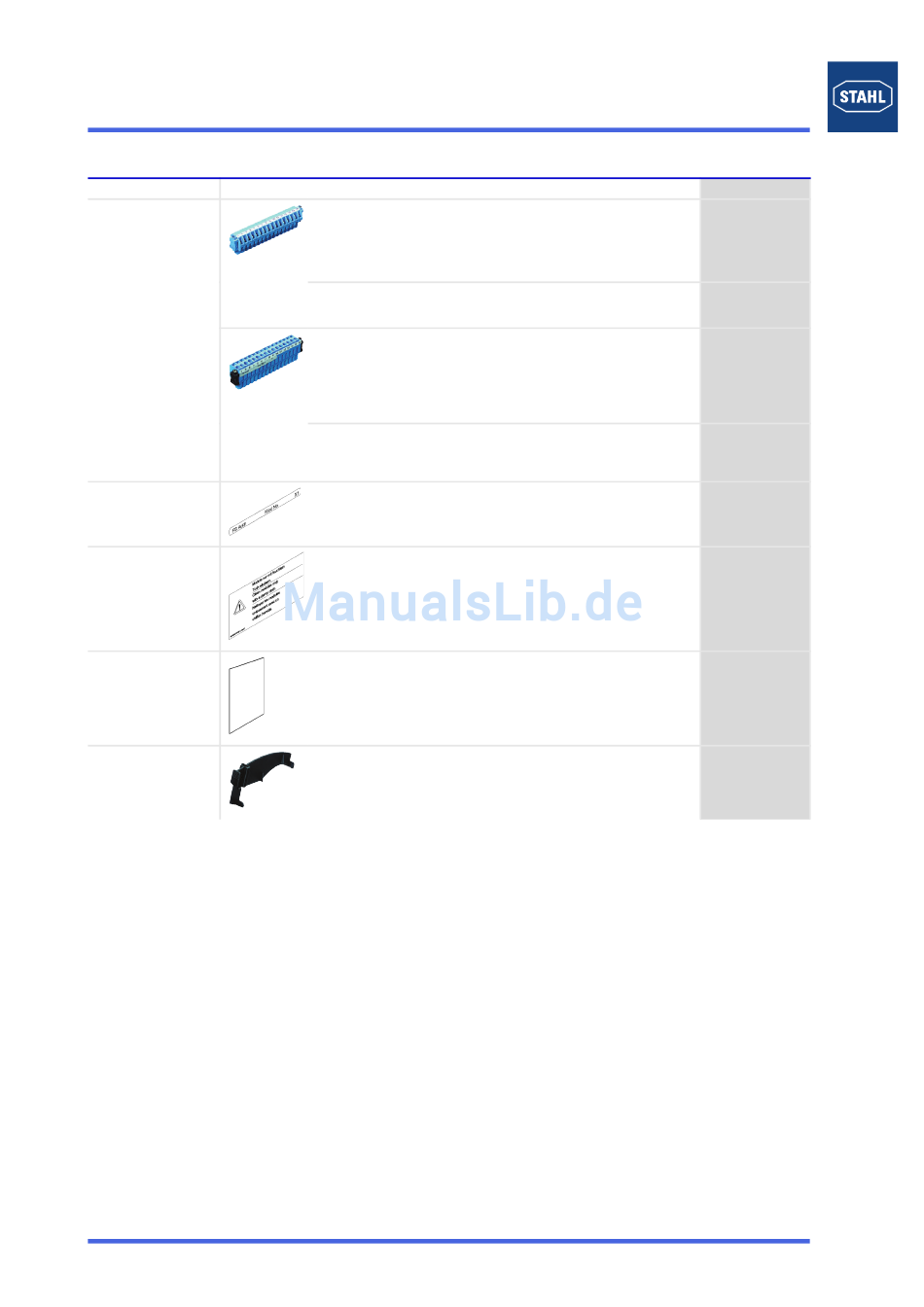

Accessories and Spare Parts

Designation Illustration
Plug-in terminal
Labelling strips
Warning sign
DIN A4 sheet
Partition
www.stahl-ex.com Operating Instructions for the IS1-System
Description
2
2.5 mm with catch, 16-pole, screw connection, blue, for connecting
the field signals to I/O modules, for intrinsically safe field circuits
Designation: 1 ... 16
Attention: An additional terminal is necessary for I/O module
Series 9470 and 9480.
02079E00
Designation: 17 ... 32
2.5 mm 2 with catch, 16-pole, screw connection, blue, for connecting
the field signals to I/O modules, for intrinsically safe field circuits
Labelling: 17 ... 32
2.5 mm 2 with catch, 16-pole, spring connection, blue, for connecting
the field signals to I/O modules, for intrinsically safe field circuits
including test jacks
Designation: 1 ... 16
Attention: An additional terminal is necessary for I/O module
02077E00
Series 9470 and 9480.
Designation: 17 ... 32
2.5 mm 2 with catch, 16-pole, spring connection, blue, for connecting
the field signals to I/O modules, for intrinsically safe field circuits
including test jacks
Labelling: 17 ... 32
„FB No ... Mod No ..." for plug-in terminals, sheet with 26 labels
05869E00
„Only clean modules with damp cloths"
05872E00
For I/O module labels; 6 labels each sheet; print out with IS Wizard
software; packaging unit = 20 sheets
09900E00
For assembly between intrinsically safe and non-intrinsically safe
connectors of the I/O modules, in order to adhere to the required
50 mm distance
02078E00
IS1 I/O-Modules
162494 / 9470601310
Art. no.
162702
162718
162695
162716
162788
162796
162832
162740
