1 Introduction
Sandberg USB Multi Hard Disk Link (referred to
as "the adapter") is a perfect solution for creating
an extremely fast connection of hard disks to a
USB port. The adapter supports both 2.5" and
3.5" IDE and SATA type hard disks. You can even
connect an IDE and a SATA hard disk at the same
time which gives you two extra hard disks on
your computer. Alternatively you can also
connect 5.25" CD and DVD drives. You will avoid
cable clutter as all the connectors are placed
directly on the adapter. User-friendly backup
software for Windows is included.

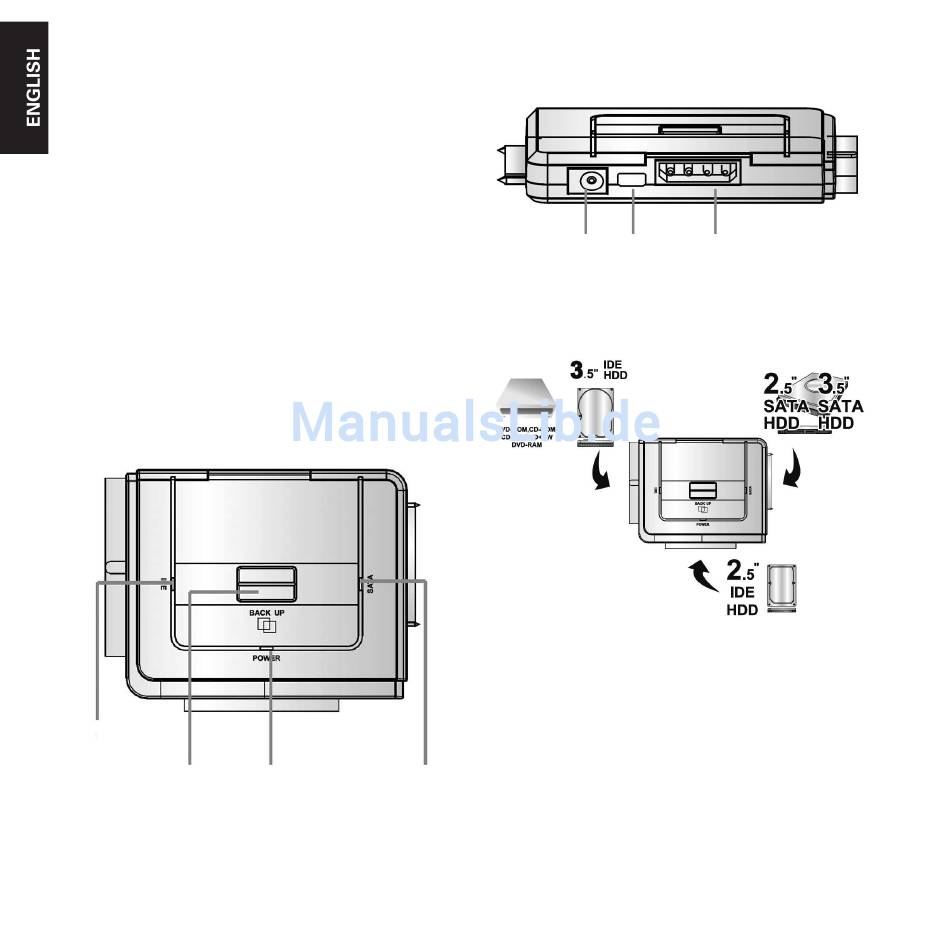

2 Overview
2.1 The top of the adapter
Lights up when
an IDE hard disk
is connected
Backup
button
Lights up when
Lights up
a SATA hard disk
when
is connected
power is
connected
Figure 1
2.2 Connections on the sides of the adapter
Power USB
connector connector
Figure 2
Figure 3
3 Connection
3.1 Hard disk connector
3.1.1 SATA hard disk
Connect a SATA drive to the SATA connectors
as shown in fig. 3.
2
Power connector
for 3.5" IDE hard disk
