Sungrow AW-AM510-I Kurzanleitung Zur Installation Seite 16

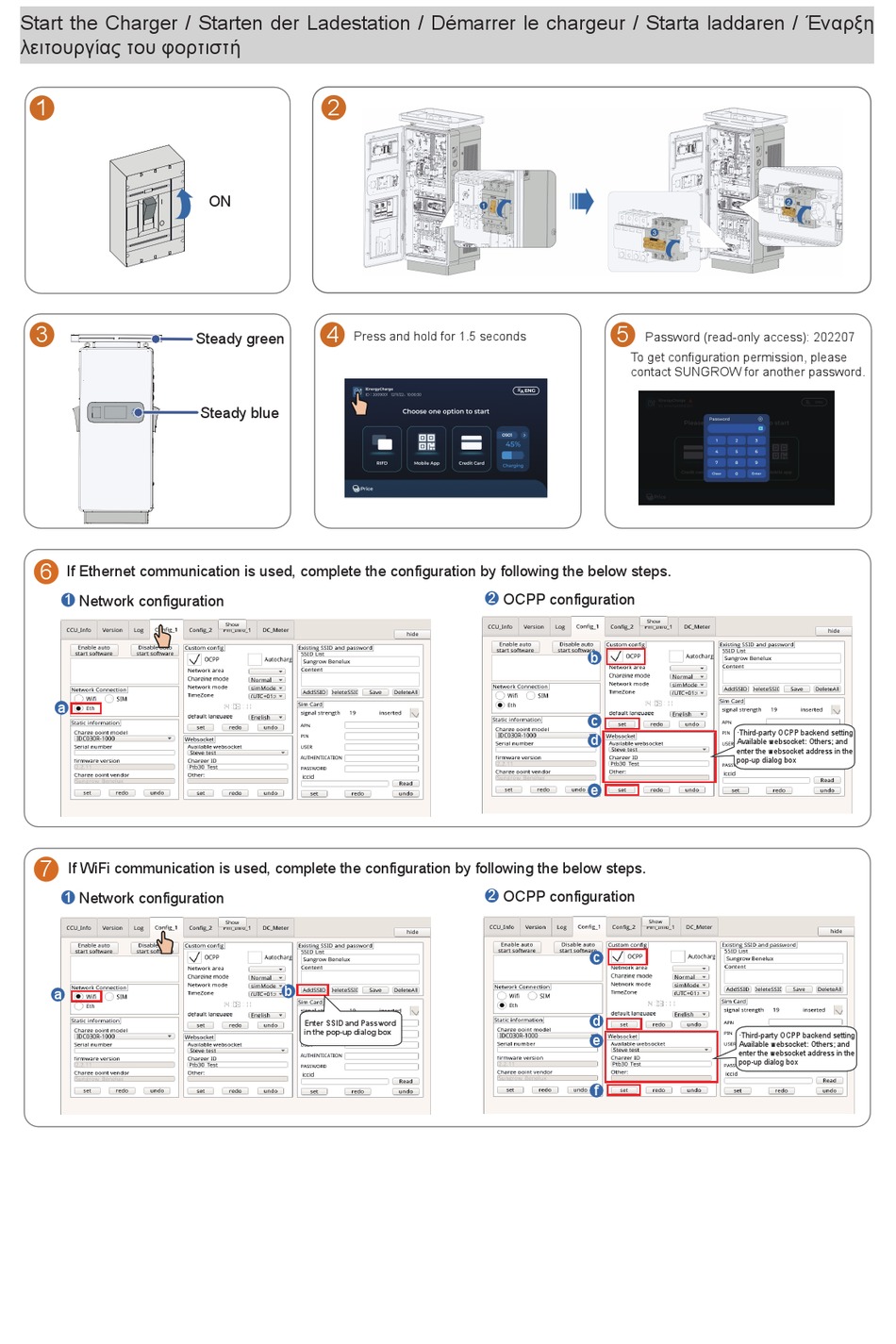

Start the Charger / Starten der Ladestation / Démarrer le chargeur / Starta laddaren / Έναρξη
λειτουργίας του φορτιστή
1
J
P
3
6
If Ethernet communication is used, complete the configuration by following the below steps.
1
Network configuration
a
7
If WiFi communication is used, complete the configuration by following the below steps.
1
Network configuration
a
2
ON
4
Press and hold for 1.5 seconds
Steady green
Steady blue
b
Enter SSID and Password
in the pop-up dialog box
5
Password (read-only access): 202207
To get configuration permission, please
contact SUNGROW for another password.
2
OCPP configuration
b
c
d
e
2
OCPP configuration
c
d
e
f
·Third-party OCPP backend setting
Available websocket: Others; and
enter the websocket address in the
pop-up dialog box
·Third-party OCPP backend setting
Available websocket: Others; and
enter the websocket address in the
pop-up dialog box
