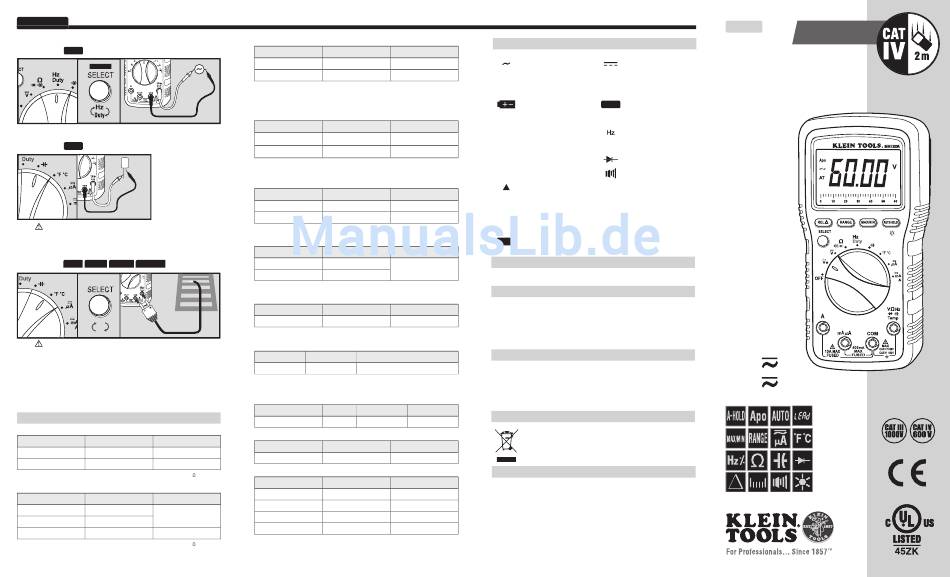

6.
Frequency (Hz) / Duty Cycle <500kHz
Features:
HOLD
PRESS
Capacitance: < 6000µF
7.
Features:
HOLD
Safely discharge capacitor before measurement.
• Reading may take up to 60 seconds for large capacitors.
8.
Temperature:
Features:
REL
HOLD
A- HOLD
MAX/MIN
PRESS
°F
°C
DO NOT apply voltage to thermocouple.
• -50° to 1000°C (-58° to 1832°F)
Testing Fuses:
• When selecting µA or mA/A functions the meter will indicate
"LEAd" if the test leads are not properly connected to the meter.
• Note: This message remaining on the screen after properly
connecting the test leads is an indication that the fuse is open.
ELECTRICAL SPECIFICATIONS
DC Voltage Measurement
Range
Resolution
Accuracy
600mV to 600V
0.1mV to 0.1V
± (0.5% + 4 digits)
1000V
1V
± (0.8% + 10 digits)
Overload Protection:
1000V
Input Impedance (Nominal): 10M , <100pF
AC Voltage Measurement
Range
Resolution
Accuracy
600mV
0.1mV
± (0.75% + 5 digits)
6V to 600V
1mV to 0.1V
1000V
1V
± (1.0% + 8 digits)
Overload Protection:
1000V RMS
Input Impedance (Nominal): 10M , <100pF
Frequency Response:
40 to 400 Hz
Response:
Averaging
DC Current Measurement
Range
Resolution
Accuracy
600µA to 400mA
0.1µA to 0.1mA
± (1.0% + 5 digits)
6A to 10A
1mA to 10mA
± (1.5% + 5 digits)
Overload Protection:
• µAmA:
F440mA/1000V fuse
• A Input:
F11A / 1000V fuse
AC Current Measurement
Range
Resolution
Accuracy
600µA to 400mA
0.1µA to 0.1mA
± (1.5% + 5 digits)
6A to 10A
1mA to 10mA
± (2.0% + 5 digits)
Overload Protection: µAmA:
F440mA/1000V fuse /
A Input:
F11A / 1000V fuse
Frequency:
40 to 400Hz
Response:
Averaging
Resistance Measurement
Range
Resolution
Accuracy
600Ω to 6MΩ
0.1Ω to 0.001MΩ
± (1.0% + 5 digits)
60MΩ
0.01MΩ
± (1.5% + 10 digits)
Overload Protection:
600V RMS
Capacitance Measurement
Range
Resolution
Accuracy
60nF
0.01nF
± (3.5% + 6 digits)
600nF to 6000µF
0.1nF to 1µF
Overload Protection:
600V RMS
Frequency Measurement
Range
Resolution
Accuracy
99.99Hz to 499.9kHz
0.01Hz to 0.1kHz
± (0.1% + 3 digits)
Overload Protection:
600V RMS
Sensitivity:
>2.5V RMS
Duty Cycle Measurement
Range
Resolution
Accuracy
1.0 to 99.0%
0.1%
± (0.2% per kHz + 0.1% + 5 digits)
Overload Protection:
600V RMS
Sensitivity:
>2.5V RMS
Frequency Range:
<10kHz
Diode Test
Overload Protection
Range
Test Current
Open Circuit Voltage
< 1.8V DC (typ.)
600V RMS
6.0V
Appx. 0.25mA
Continuity Test
Overload Protection
Open Circuit Voltage
Threshold (Appx.)
600V RMS
< 0.44V
<40Ω
Temperature Measurement
Range
Resolution
Accuracy
-50 to 600°C
0.1°C
± (1.0% + 3.0°C)
600 to 1000°C
1°C
± (1.0% + 3.0°C)
-58 to 600°F
0.1°F
± (1.0% + 5.4°F)
600 to 1832°F
1°F
± (1.0% + 5.4°F)
Overload Protection:
600V RMS
Thermocouple Accuracy:
Not specified
Specifications subject to change.
SYMBOLS USED ON LCD
AC Measurement
DC Measurement
-
AT
Negative DC Value
Auto Range Active
O.L.
Apo
Overload: Range Exceeded
Auto Power-Off Active
Low Battery
Hold Active
HOLD
MIN
MAX
Minimum Reading
Maximum Reading
%
Duty Cycle Mode
Frequency Mode
V
A
Voltage Measurement
Current in Amps
Ω
Resistance in Ohms
Diode Test
F
Capacitance in Farads
Continuity Test
n
Relative / Zero Mode
Nano 10
-9
µ
m
Micro 10
-6
Milli 10
-3
k
M
Kilo 10
Mega 10
3
6
°F
°C
Degrees Fahrenheit
Degrees Celsius
A-HOLD
Auto-Hold Active
WARRANTY
www.kleintools.com/warranty
CLEANING
Clean the instrument by using a damp cloth. Do not use abrasive cleaners
or solvents.
Take care to keep the sensor lens clean at all times. Clean the lens using a soft
cloth or cotton swab with water or rubbing alcohol only, and allow the lens to
dry before use.
STORAGE
Remove the batteries when instrument is not in use for a prolonged period of
time. Do not expose to high temperatures or humidity. After a period of storage
in extreme conditions exceeding the limits mentioned in the Specifications
section, allow the instrument to return to normal operating conditions before
using it.
DISPOSAL / RECYCLE
Do not place equipment and its accessories in the trash. Items
must be properly disposed of in accordance with local regulations.
CUSTOMER SERVICE
KLEIN TOOLS, INC.
450 Bond Street
Lincolnshire, IL 60069
1-877-775-5346
customerservice@kleintools.com
www.kleintools.com
139893 Rev. 11/14 B
139893 Rev. 11/14 B
MM1300A
ENGLISH

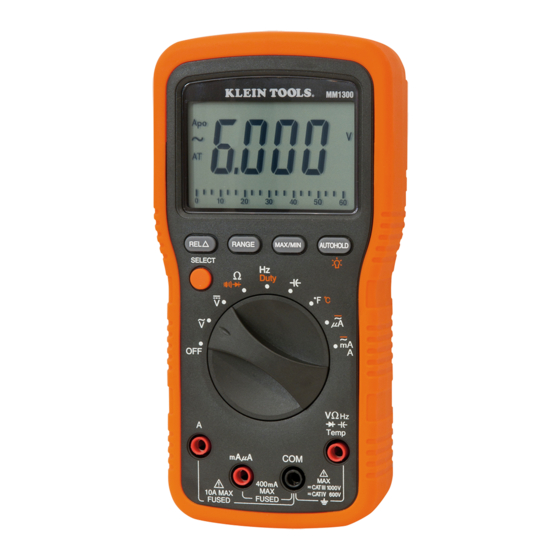

INSTRUCTION MANUAL
Electrician's / HVAC Multimeter
• AUTO / MANUAL
RANGE
• AUTO HOLD
• MAX / MIN
• BAR GRAPH
• BACKLIGHT
• LEAD HOLDER
• 3-5/6 DIGIT
6000 COUNT LCD
1000V
10A
