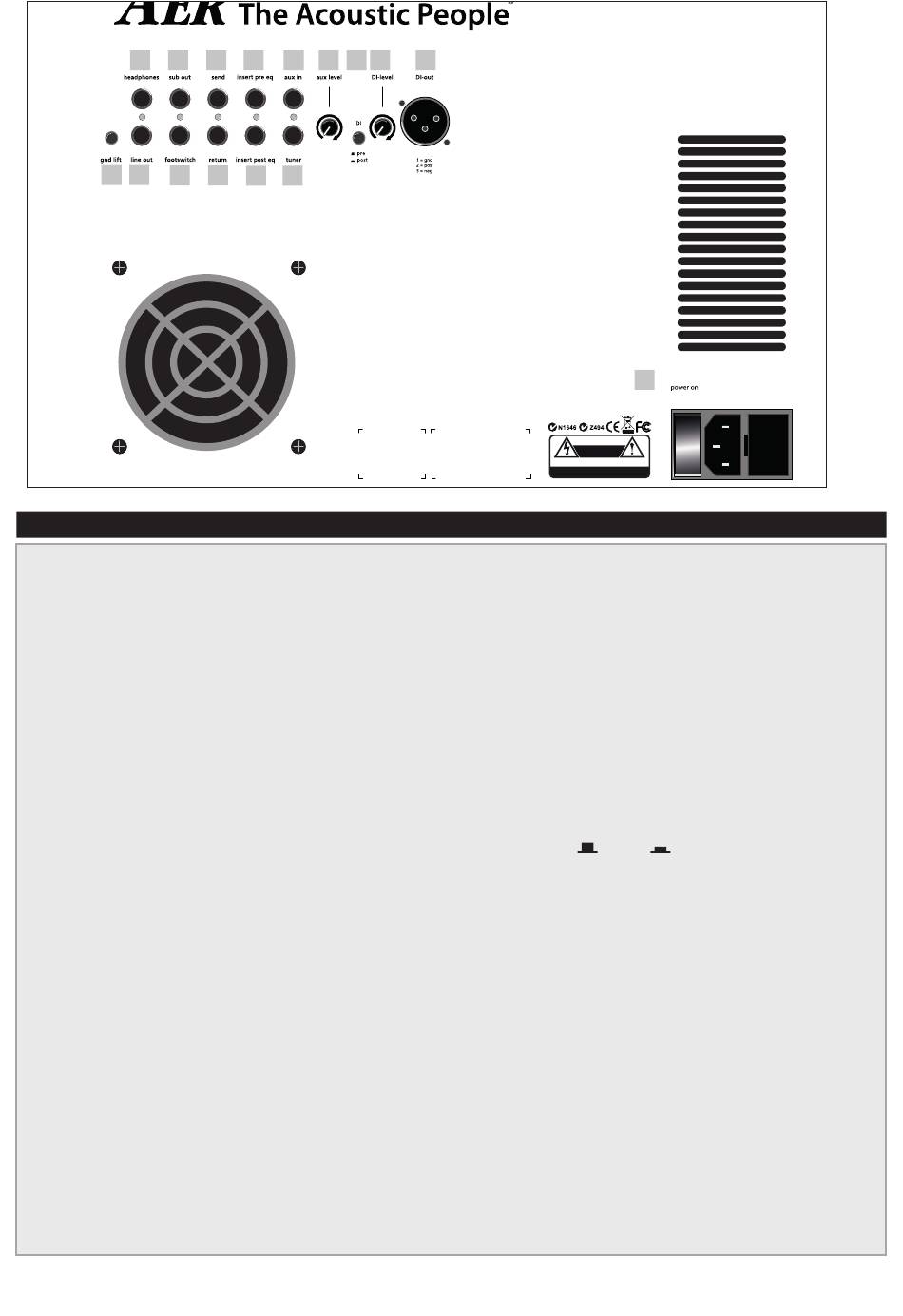

3.2 Rear Side
1)
ground lift
Switch that disconnects signal ground from
protective earth. Generally, it should stay in the
off position (not pushed in).
2)
headphones
Output jack socket ¼" (6.35 mm) for head-
phones. The loudspeaker of the amplifier is
switched off when this socket is used.
3)
line out
Preamplifier output post master and tone
controls, with effects
4)
sub out
Sub-Ausgang, 6,3 mm Mono-Klinkenbuchse
5)
footswitch
Connector for a dual footswitch
for muting the amp.
switching the internal and external effect on/
off.Stereo jack socket, assignment:
Tip = switch for internal effect
Ring = switch for external effect (send / return)
6)
send
Output for an external, parallel effect loop in
conjunction with return.
7)
return
Input of the external, parallel effect loop
(see also send). Can also be used alone as
additional input.
6
8
10
12 13 14
7
9
11
15
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
AT T E N T I O N
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
8/9) insert pre / post eq
Insert pre/post eq are two more effect loop paths to
loop additional external effects (filter, compressor etc.)
into the signal path, either pre or post equalization.
10) aux in
Auxiliary input, Stereo jack 6,35 mm socket
Additional input for general sources with line
level, e.g. CD player
11) tuner
Output, pre master, for a tuner.
13) DI switch
DI-switch
14) DI level
DI-level control
15) DI-out
Symmetrical (XLR) DI-Out
16) power on
Power on/off switch, combined
with mains inlet (IEC C14 type) and
compartment for mains fuse
(see technical data).
16
= pre,
= post effects
13
