LZB33-L-AR0008-51

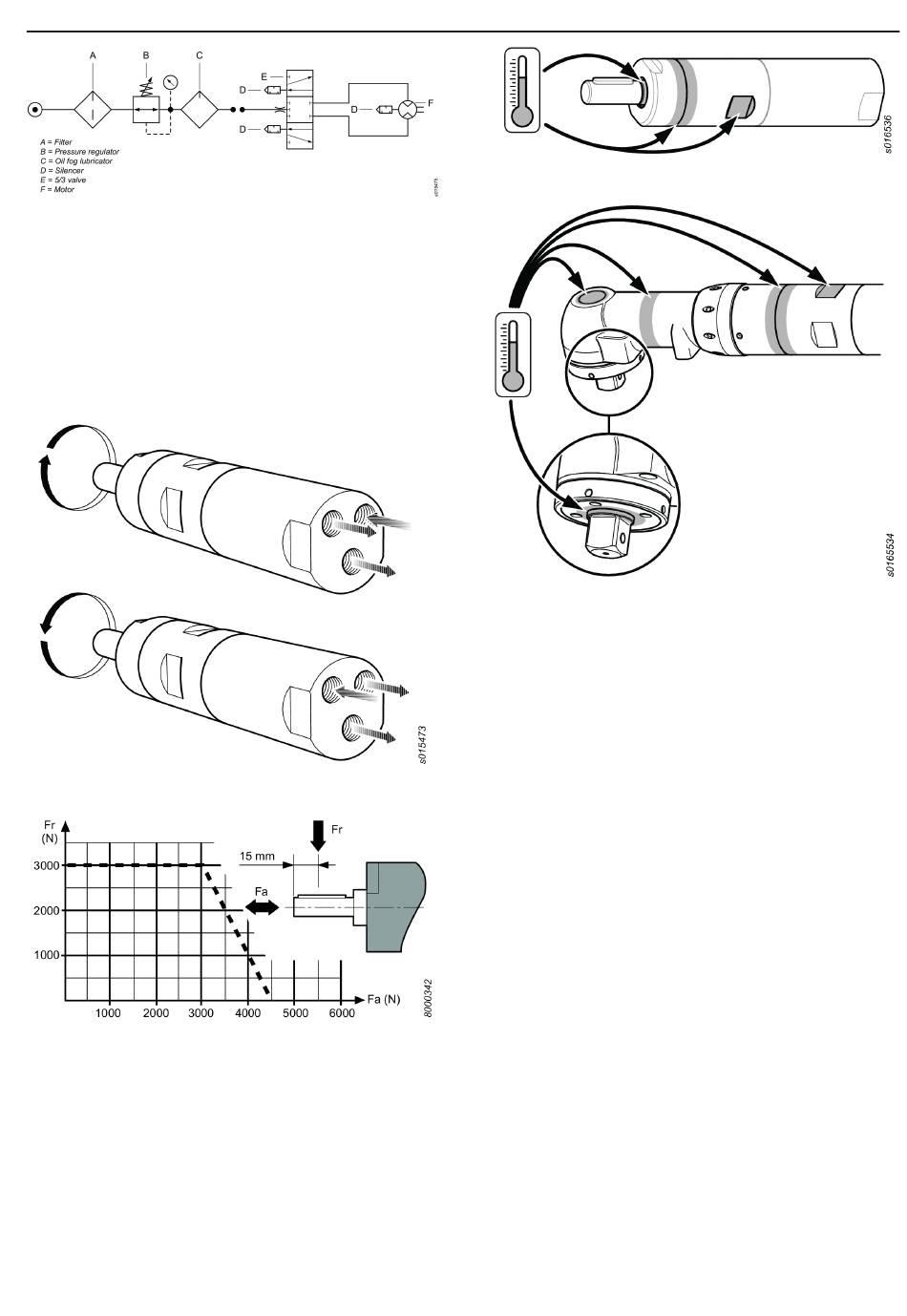

Connecting the air supply
When the compressed air supply is connected to the inlet, the
direction of rotation will be as shown in the figure below. If
the exhaust air is to be piped away, a hose should be con-
nected to the exhaust outlet.
The compressed air supply should be connected to the corre-
sponding inlet for desired rotation direction, see figure below.
The inlet that is not in use, functions as an additional outlet
and must not be plugged.
Shaft load diagram
Hot Spots
The following hotspots on the motor (as seen in the figure)
can reach high temperatures during operation:
• Seal ring at the output shaft
• Joint between front part and gear ring
• Key grip
© Atlas Copco Industrial Technique AB - 9834 4367 00
Illustration 1: Straight models
Illustration 2: Angled models
The highest temperatures occur when the motor is running at
full pressure without load. With increasing torque, the air mo-
tor reduces the rotational speed and the temperature.
Warning
Make sure you are familiar with the operating instructions be-
fore you use this motor.
This motor, its attachments and accessories must only be used
for the purpose for which they were designed.
For product liability and safety reasons any modification to
the motor or its accessories, which may have an influence on
the product liability, must be agreed upon by the technical au-
thority of the manufacturer.
To prevent personal injury and long term risks:
• If the motor is ATEX-certified, filter/silencers must be in-
stalled at the motor outlet ports.
Silencers are recommended also for other applications to
reduce noise exposure.
• Disconnect the motor from the air line before any adjust-
ment operation.
• Mind your hands, hair and clothing – always keep
well away from rotating parts.
Maintenance
• Maintenance and repairs of this ATEX product must be
carried out exclusively by authorised personnel, after
which a no-load test and temperature measurements of
hotspots (as seen in the figure) must be carried out and
recorded in a report.
Safety Information
5
