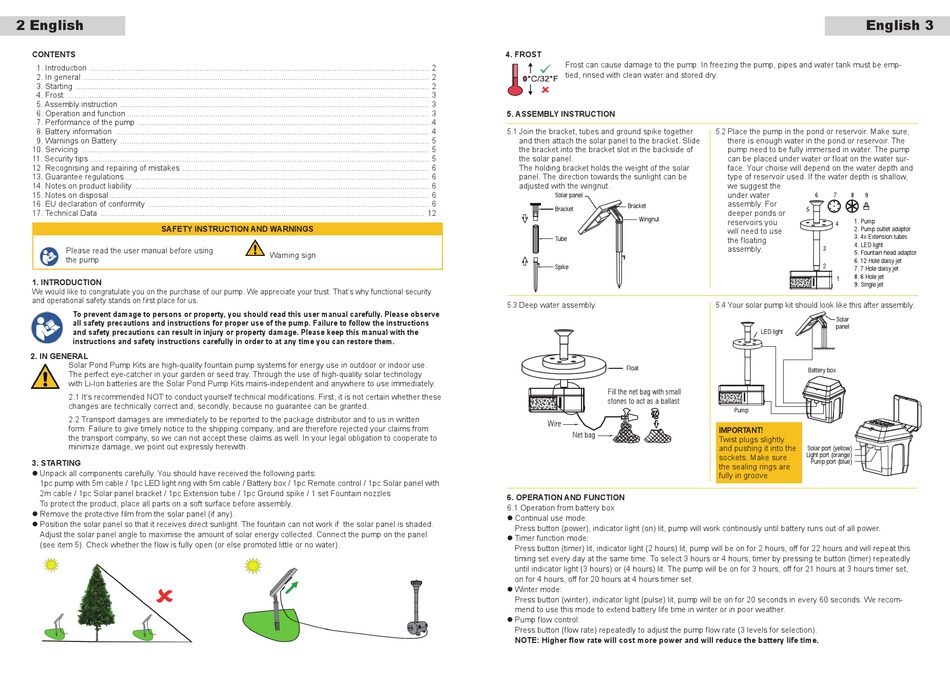

2 English
conTenTS
1. Introduction .......................................................................................................................................................... 2
2. In general ............................................................................................................................................................. 2
3. Starting ................................................................................................................................................................ 2
4. Frost .................................................................................................................................................................... 3
5. Assembly instruction ............................................................................................................................................ 3
6. Operation and function ......................................................................................................................................... 3
7. Performance of the pump .................................................................................................................................... 4
8. Battery information .............................................................................................................................................. 4
9. Warnings on Battery ............................................................................................................................................ 5
10. Servicing ............................................................................................................................................................. 5
11. Security tips .......................................................................................................................................................... 5
12. Recognising and repairing of mistakes ................................................................................................................ 6
13. Guarantee regulations .......................................................................................................................................... 6
14. Notes on product liability ..................................................................................................................................... 6
15. Notes on disposal ................................................................................................................................................. 6
16. EU declaration of conformity ............................................................................................................................... 6
17. Technical Data ................................................................................................................................................... 12
SaFeTY inSTrucTion and WarninGS
Please read the user manual before using
the pump
1. inTroducTion
We would like to congratulate you on the purchase of our pump. We appreciate your trust. That's why functional security
and operational safety stands on fi rst place for us.
To prevent damage to persons or property, you should read this user manual carefully. Please observe
all safety precautions and instructions for proper use of the pump. Failure to follow the instructions
and safety precautions can result in injury or property damage. Please keep this manual with the
instructions and safety instructions carefully in order to at any time you can restore them.
2. in General
Solar Pond Pump Kits are high-quality fountain pump systems for energy use in outdoor or indoor use.
The perfect eye-catcher in your garden or seed tray. Through the use of high-quality solar technology
with Li-Ion batteries are the Solar Pond Pump Kits mains-independent and anywhere to use immediately.
2.1 It's recommended NOT to conduct yourself technical modifi cations. First, it is not certain whether these
changes are technically correct and, secondly, because no guarantee can be granted.
2.2 Transport damages are immediately to be reported to the package distributor and to us in written
form. Failure to give timely notice to the shipping company, and are therefore rejected your claims from
the transport company, so we can not accept these claims as well. In your legal obligation to cooperate to
minimize damage, we point out expressly herewith.
3. STarTinG
l Unpack all components carefully. You should have received the following parts:
1pc pump with 5m cable / 1pc LED light ring with 5m cable / Battery box / 1pc Remote control / 1pc Solar panel with
2m cable / 1pc Solar panel bracket / 1pc Extension tube / 1pc Ground spike / 1 set Fountain nozzles
To protect the product, place all parts on a soft surface before assembly.
l Remove the protective fi lm from the solar panel (if any).
l Position the solar panel so that it receives direct sunlight. The fountain can not work if the solar panel is shaded.
Adjust the solar panel angle to maximise the amount of solar energy collected. Connect the pump on the panel
(see item 5). Check whether the fl ow is fully open (or else promoted little or no water).
Warning sign
4. FroST
Frost can cause damage to the pump. In freezing the pump, pipes and water tank must be emp-
tied, rinsed with clean water and stored dry.
5. aSSemBlY inSTrucTion
5.1 Join the bracket, tubes and ground spike together
and then attach the solar panel to the bracket. Slide
the bracket into the bracket slot in the backside of
the solar panel.
The holding bracket holds the weight of the solar
panel. The direction towards the sunlight can be
adjusted with the wingnut.
Solar panel
Bracket
Bracket
Wingnut
Tube
Spike
5.3 Deep water assembly
Float
Fill the net bag with small
stones to act as a ballast
Wire
Net bag
6. oPeraTion and FuncTion
6.1 Operation from battery box
l Continual use mode:
Press button (power), indicator light (on) lit, pump will work continously until battery runs out of all power.
l Timer function mode:
Press button (timer) lit, indicator light (2 hours) lit, pump will be on for 2 hours, off for 22 hours and will repeat this
timing set every day at the same time. To select 3 hours or 4 hours, timer by pressing te button (timer) repeatedly
until indicator light (3 hours) or (4 hours) lit. The pump will be on for 3 hours, off for 21 hours at 3 hours timer set,
on for 4 hours, off for 20 hours at 4 hours timer set.
l Winter mode:
Press button (winter), indicator light (pulse) lit, pump will be on for 20 seconds in every 60 seconds. We recom-
mend to use this mode to extend battery life time in winter or in poor weather.
l Pump fl ow control:
Press button (fl ow rate) repeatedly to adjust the pump fl ow rate (3 levels for selection).
nOTe: higher fl ow rate will cost more power and will reduce the battery life time.
English 3
5.2 Place the pump in the pond or reservoir. Make sure,
there is enough water in the pond or reservoir. The
pump need to be fully immersed in water. The pump
can be placed under water or fl oat on the water sur-
face. Your choise will depend on the water depth and
type of reservoir used. If the water depth is shallow,
we suggest the
under water
6
7
8
9
assembly. For
5
deeper ponds or
1. Pump
reservoirs you
4
2. Pump outlet adaptor
will need to use
3. 4x Extension tubes
the fl oating
4. LED light
assembly.
3
5. Fountain head adaptor
6. 12 Hole daisy jet
2
7. 7 Hole daisy jet
8. 6 Hole jet
1
9. Single jet
5.4 Your solar pump kit should look like this after assembly.
Solar
panel
LED light
Battery box
Pump
imPorTanT!
Twist plugs slightly
and pushing it into the
Solar port (yellow)
Light port (orange)
sockets. Make sure
Pump port (blue)
the sealing rings are
fully in groove
