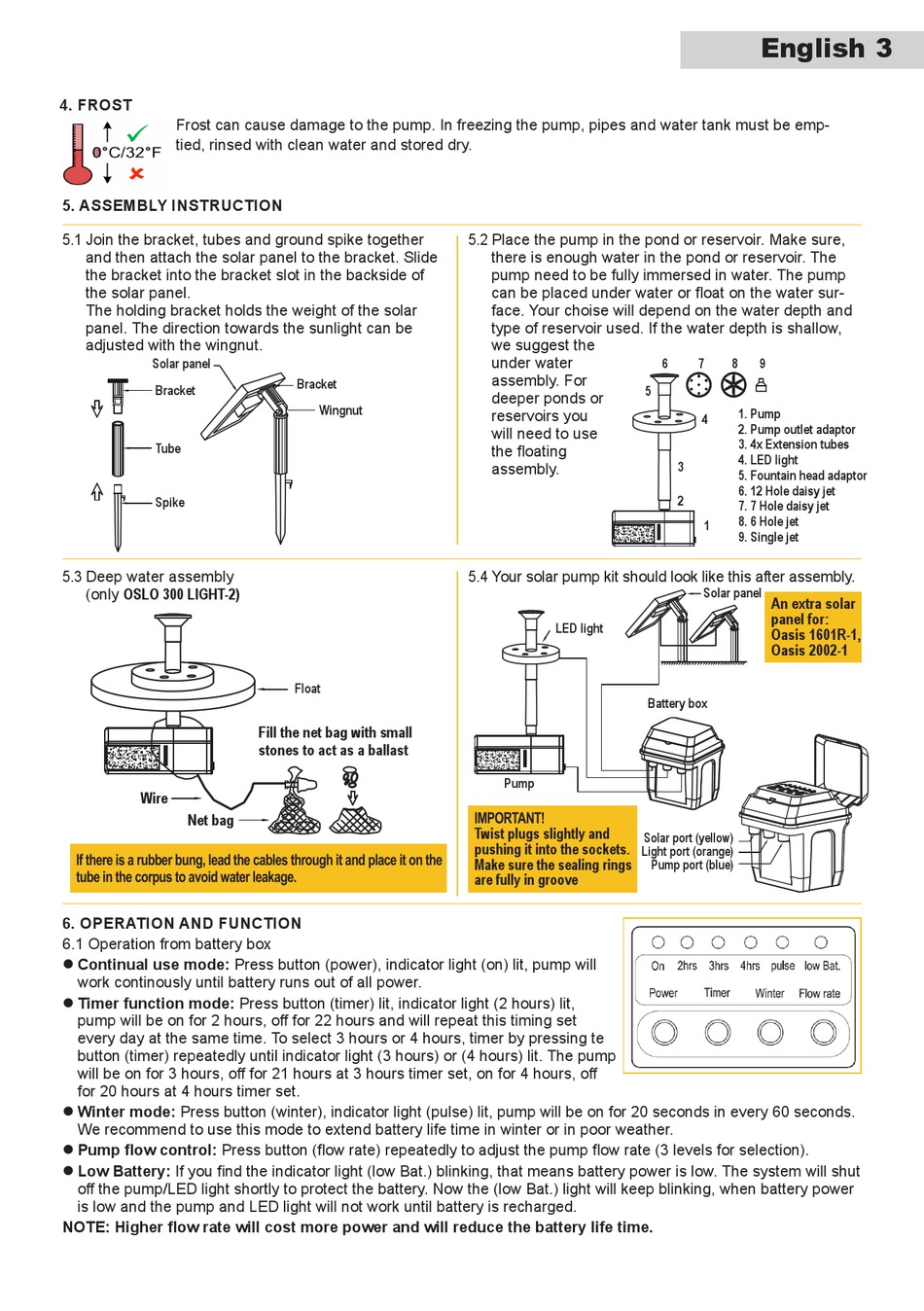

4. FROST

Frost can cause damage to the pump. In freezing the pump, pipes and water tank must be emp-
tied, rinsed with clean water and stored dry.

5. ASSEMBLY INSTRUCTION

5.1 Join the bracket, tubes and ground spike together
and then attach the solar panel to the bracket. Slide
the bracket into the bracket slot in the backside of
the solar panel.
The holding bracket holds the weight of the solar
panel. The direction towards the sunlight can be
adjusted with the wingnut.
Solar panel
Bracket
Tube
Spike
5.3 Deep water assembly
(only OSLO 300 LIGHT-2)
Wire
Net bag
If there is a rubber bung, lead the cables through it and place it on the
tube in the corpus to avoid water leakage.

6. OPERATION AND FUNCTION

6.1 Operation from battery box
l Continual use mode: Press button (power), indicator light (on) lit, pump will
work continously until battery runs out of all power.
l Timer function mode: Press button (timer) lit, indicator light (2 hours) lit,
pump will be on for 2 hours, off for 22 hours and will repeat this timing set
every day at the same time. To select 3 hours or 4 hours, timer by pressing te
button (timer) repeatedly until indicator light (3 hours) or (4 hours) lit. The pump
will be on for 3 hours, off for 21 hours at 3 hours timer set, on for 4 hours, off
for 20 hours at 4 hours timer set.
l Winter mode: Press button (winter), indicator light (pulse) lit, pump will be on for 20 seconds in every 60 seconds.
We recommend to use this mode to extend battery life time in winter or in poor weather.
l Pump flow control: Press button (flow rate) repeatedly to adjust the pump flow rate (3 levels for selection).
l Low Battery: If you find the indicator light (low Bat.) blinking, that means battery power is low. The system will shut
off the pump/LED light shortly to protect the battery. Now the (low Bat.) light will keep blinking, when battery power
is low and the pump and LED light will not work until battery is recharged.
NOTE: Higher flow rate will cost more power and will reduce the battery life time.
Bracket
Wingnut
Float
Fill the net bag with small
stones to act as a ballast
5.2 Place the pump in the pond or reservoir. Make sure,
there is enough water in the pond or reservoir. The
pump need to be fully immersed in water. The pump
can be placed under water or float on the water sur-
face. Your choise will depend on the water depth and
type of reservoir used. If the water depth is shallow,
we suggest the
under water
assembly. For
deeper ponds or
reservoirs you
will need to use
the floating
assembly.
5.4 Your solar pump kit should look like this after assembly.
LED light
Pump
IMPORTANT!
Twist plugs slightly and
pushing it into the sockets.
Light port (orange)
Make sure the sealing rings
are fully in groove
English 3
6 7 8 9
5
1. Pump
4
2. Pump outlet adaptor
3. 4x Extension tubes
4. LED light
3
5. Fountain head adaptor
6. 12 Hole daisy jet
2
7. 7 Hole daisy jet
8. 6 Hole jet
1
9. Single jet
Solar panel
An extra solar
panel for:
Oasis 1601R-1,
Oasis 2002-1
Battery box
Solar port (yellow)
Pump port (blue)
