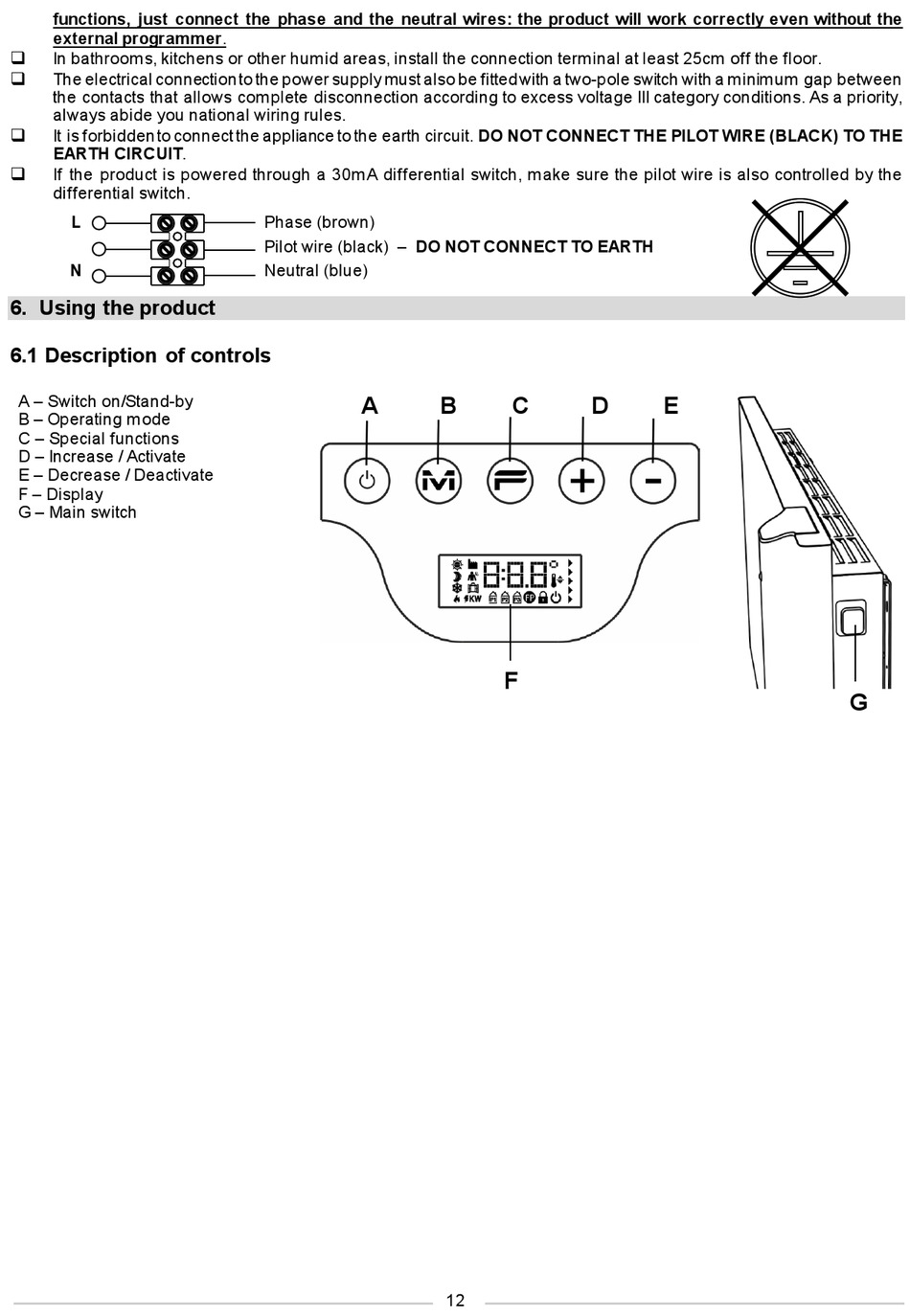

functions, just connect the phase and the neutral wires: the product will work correctly even without the
external programmer.
In bathrooms, kitchens or other humid areas, install the connection terminal at least 25cm off the floor.
The electrical connection to the power supply must also be fitted with a two-pole switch with a minimum gap between
the contacts that allows complete disconnection according to excess voltage III category conditions. As a priority,
always abide you national wiring rules.
It is forbidden to connect the appliance to the earth circuit. DO NOT CONNECT THE PILOT WIRE (BLACK) TO THE
EARTH CIRCUIT.
If the product is powered through a 30mA differential switch, make sure the pilot wire is also controlled by the
differential switch.
L
N
6. Using the product
6.1 Description of controls
A – Switch on/Stand-by
B – Operating mode
C – Special functions
D – Increase / Activate
E – Decrease / Deactivate
F – Display
G – Main switch
Phase (brown)
Pilot wire (black) – DO NOT CONNECT TO EARTH
Neutral (blue)
A
B
C
D
F
12
E
G
