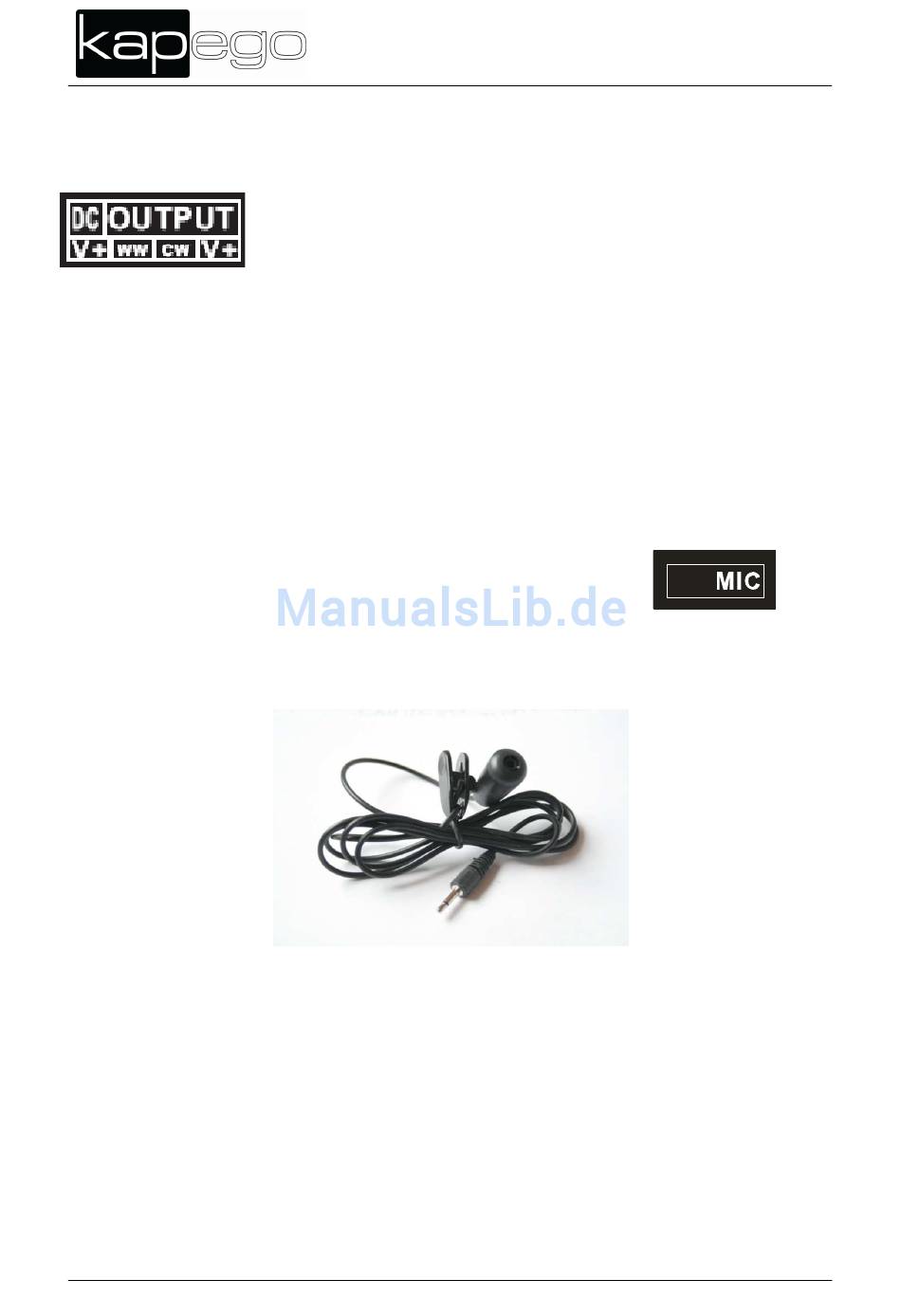

2.2.2. Connecting the WW/CW item

With this controller you can use fixtures with common anode only!
Anschluss eines Stripes mit WW/CW Bestückung:
- Connect the wire of WW of your fixture with the output marked with DC OUTPUT WW at the
controller.
- Connect the wire of CW of your fixture with the output marked with DC OUTPUT WW at the
controller.
- Connect the wire of the common anode of your fixture with the output marked with DC
OUTPUT V+ at the controller..

2.2.3. Connecting the mic

The mic should be installed without anything covered, that i can record all the audio signals and use
them. That for there is a mic included in the package with connecting cable.
- Connect the jack of the mic cable with the output marked with MIC
- Now if you choose the audio programs at the controller the microphone can react according to
the sensitivity set.
