2.2. Connecting the controller
2.2.1. Power Connection
To connect the controller to the mains you have to use a PSU with 12V or 24V, depending on which
led fixture you want to use. You can connect maximum of 15A, but the PSU should be always
equipped with some headroom..

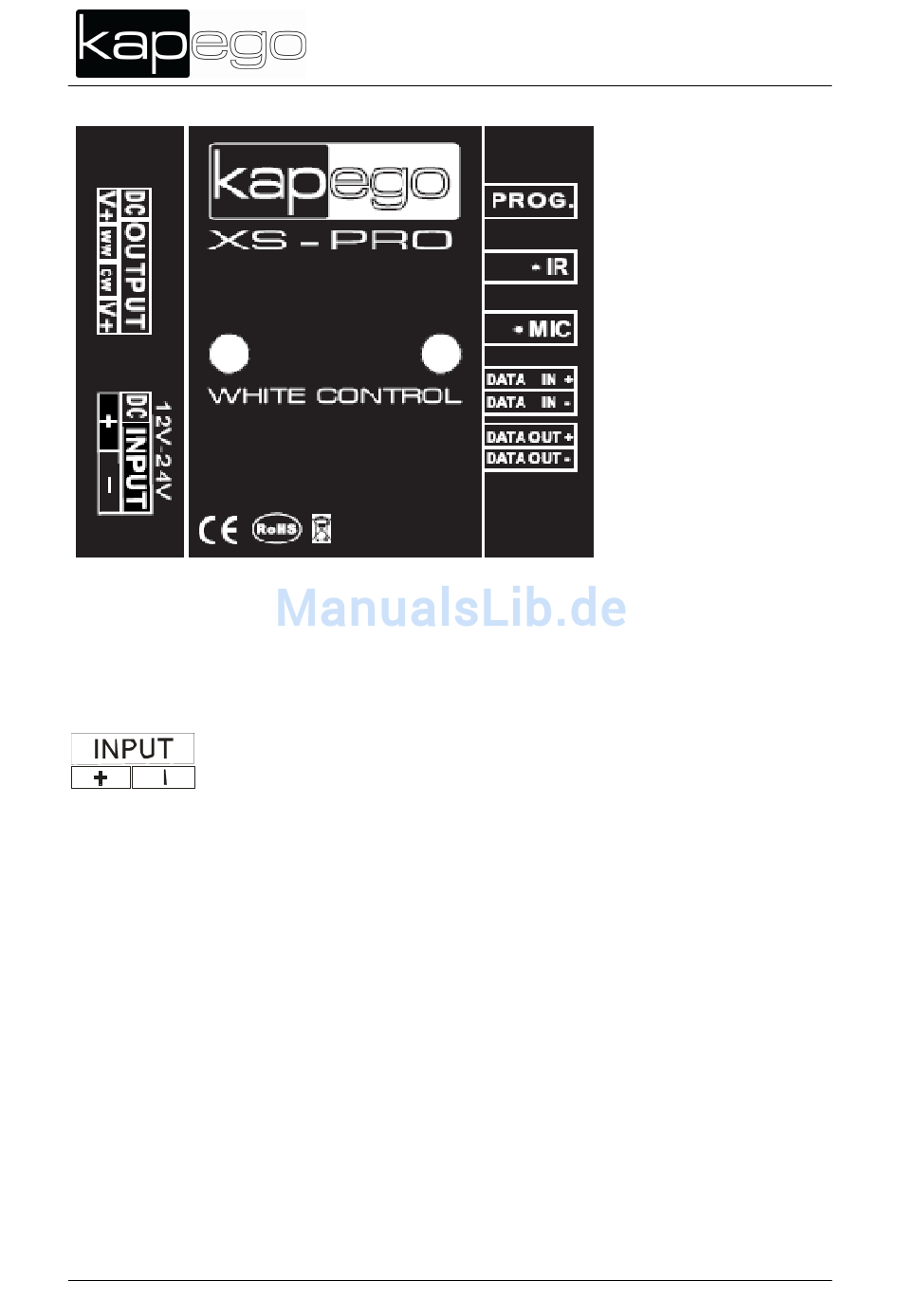

DC IN: 12V-24V
-
Connect the PSU according to the description of the manufacturer
-
Now connect the + Pole of the PSU with the + mains Insert of the RGB control.
-
Now connect the - Pole of the PSU with the - mains Insert of the RGB control.
-
Make sure to install according to the laws in your country.
-
Make sure to use always the right voltage for the right fixture connected! If not their can be
damages on every connected item!!
