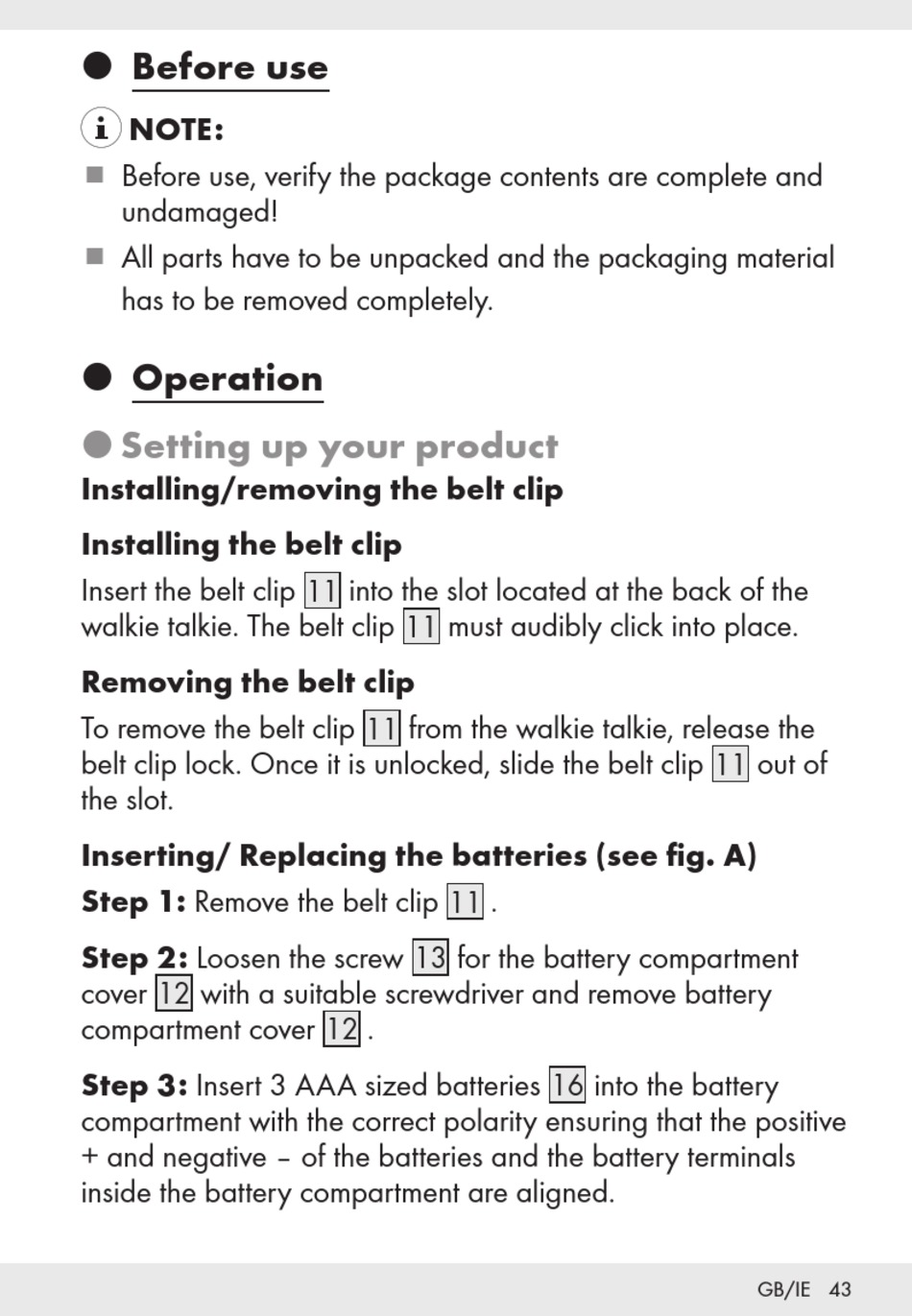

Silvercrest SKPMR A1 Kurzanleitung Seite 43

P Before use
NOTE:
Before use, verify the package contents are complete and
undamaged!
All parts have to be unpacked and the packaging material
has to be removed completely.
P Operation
P Setting up your product
Installing/removing the belt clip
Installing the belt clip
Insert the belt clip 11 into the slot located at the back of the
walkie talkie. The belt clip 11 must audibly click into place.
Removing the belt clip
To remove the belt clip 11 from the walkie talkie, release the
belt clip lock. Once it is unlocked, slide the belt clip 11 out of
the slot.
Inserting/ Replacing the batteries (see fig. A)
Step 1: Remove the belt clip 11 .
Step 2: Loosen the screw 13 for the battery compartment
cover 12 with a suitable screwdriver and remove battery
compartment cover 12 .
Step 3: Insert 3 AAA sized batteries 16 into the battery
compartment with the correct polarity ensuring that the positive
+ and negative – of the batteries and the battery terminals
inside the battery compartment are aligned.
GB/IE 43
