Theory Of Operation; Probe Head And Cable Assembly; Figure 4-1: P6245 Simplified Schematic Diagram - Tektronix P6245 Benutzerhandbuch

Theory of Operation

There are no user replaceable parts within the probe or the
compensation box; however, this theory of operation is provided to
assist you in isolating failures to either the probe or the host
oscilloscope. Refer to Figure 4–1 for the probe's simplified
schematic.
Probe Head
Probe Tip
Offset to probe

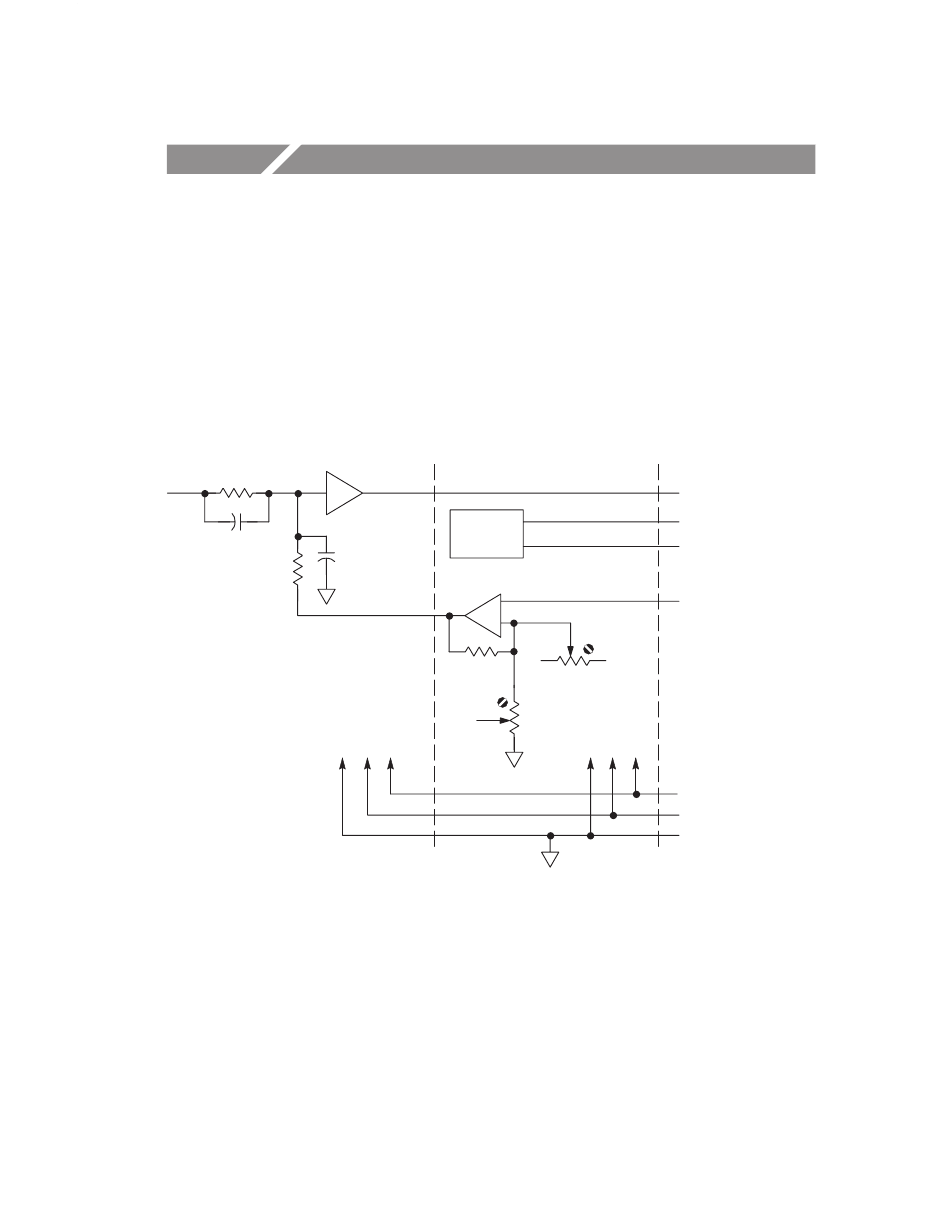

Figure 4–1: P6245 Simplified Schematic Diagram

Probe Head and Cable Assembly

The probe head assembly contains an active amplifier circuit that
buffers and amplifies the input signal. The amplifier receives power
and an offset level from the compensation box assembly via the
cable assembly.
P6245 Instruction Manual
Compensation Box
Probe-Tip
Ampifier EEPROM
Offset Ampifier
+5
Offset
Gain
Probe
Cable
Oscilloscope
Signal Out
Probe ID Out
Clock In
±1 V Offset
Offset
Zero
–5
+5 V
–5 V
Ground
TEKPROBE
Interface
4–1
