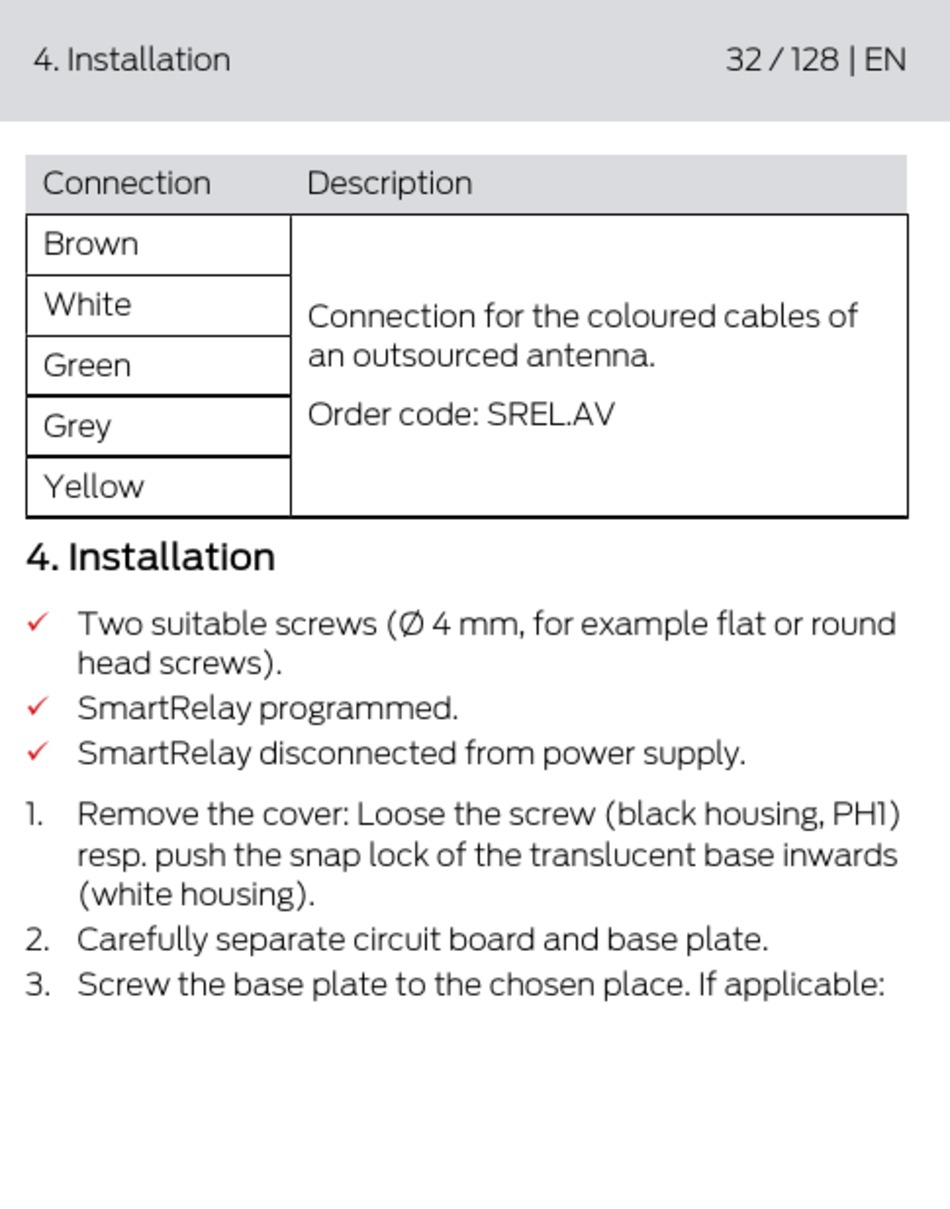

4. Installation
Connection
Brown
White
Green
Grey
Yellow
4. Installation
Two suitable screws (Ø 4 mm, for example flat or round
ü
head screws).
SmartRelay programmed.
ü
SmartRelay disconnected from power supply.
ü
1.
Remove the cover: Loose the screw (black housing, PH1)
resp. push the snap lock of the translucent base inwards
(white housing).
2. Carefully separate circuit board and base plate.
3. Screw the base plate to the chosen place. If applicable:
Description
Connection for the coloured cables of
an outsourced antenna.
Order code: SREL.AV
32 / 128 | EN
