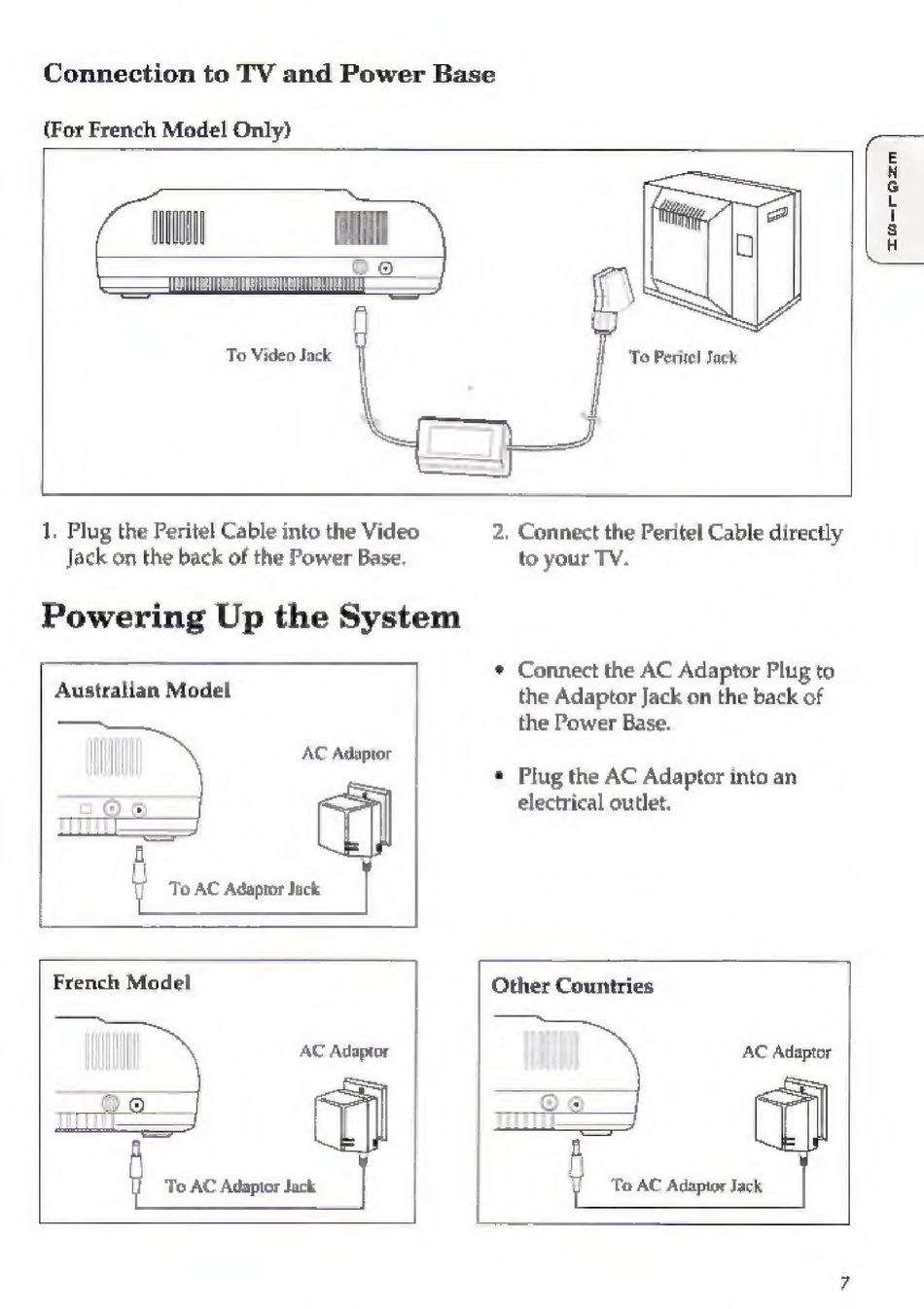

Connection to TV and Power Base
(For French Model Only)
ШШ LU
TE
To Video Jack
zo-
To Peritel Jack
1. Plug the Peritel Cable into the Video
Jack on the back of the Power Base.
Powering Up the System
Australian Model
AC Adaptor
2. Connect the Peritel Cable directly
to your TV.
.
Connect the AC Adaptor Plug to
the Adaptor Jack on the back of
the Power Base.
Plug the AC Adaptor into an
electrical outlet.
French Model
AC Adaptor
) To AC Adaptor Jack
Other Countries
AC Adaptor
To AC Adaptor Jack
