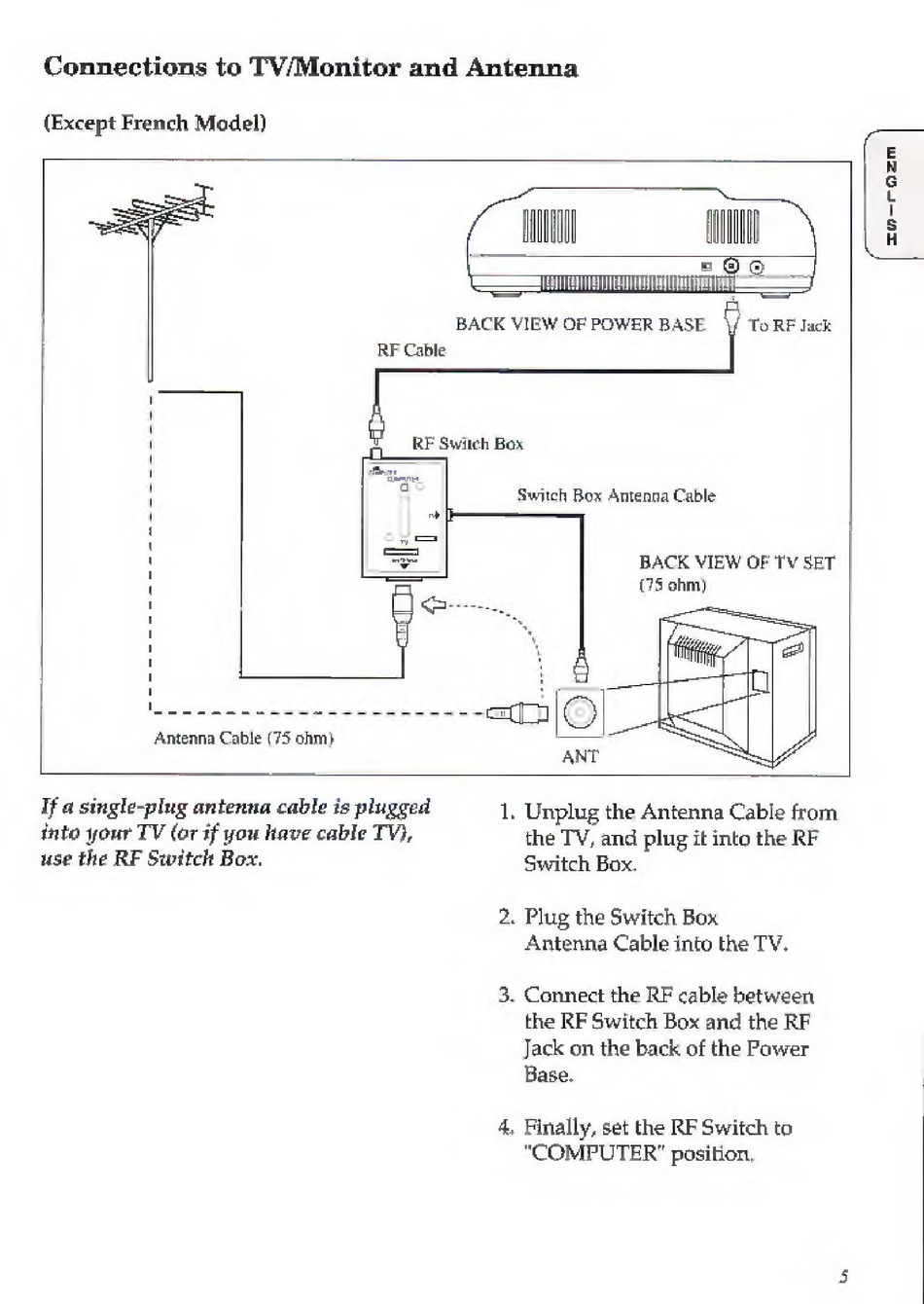

Connections to TV/Monitor and Antenna
(Except French Model)
Antenna Cable (75 ohm)
RF Cable
5
BACK VIEW OF POWER BASE |
RF Switch Box
UU HI
zo-r
KC
| To RF Jack
Switch Box Antenna Cable
BACK VIEW OF TV SET
(75 ohm)
If a single-plug antenna cable is plugged
into your TV (or if you have cable TV),
use the RF Switch Box.
>
"
. Unplug the
Antenna Cable from
the TV, and plug it into the RF
Switch Box.
Plug the Switch Box
Antenna Cable into the TV.
Connect the RF cable between
the RF Switch Box and the RF
Jack on the back of the Power
Base.
4. Finally, set the RF Switch to
"COMPUTER" position.
