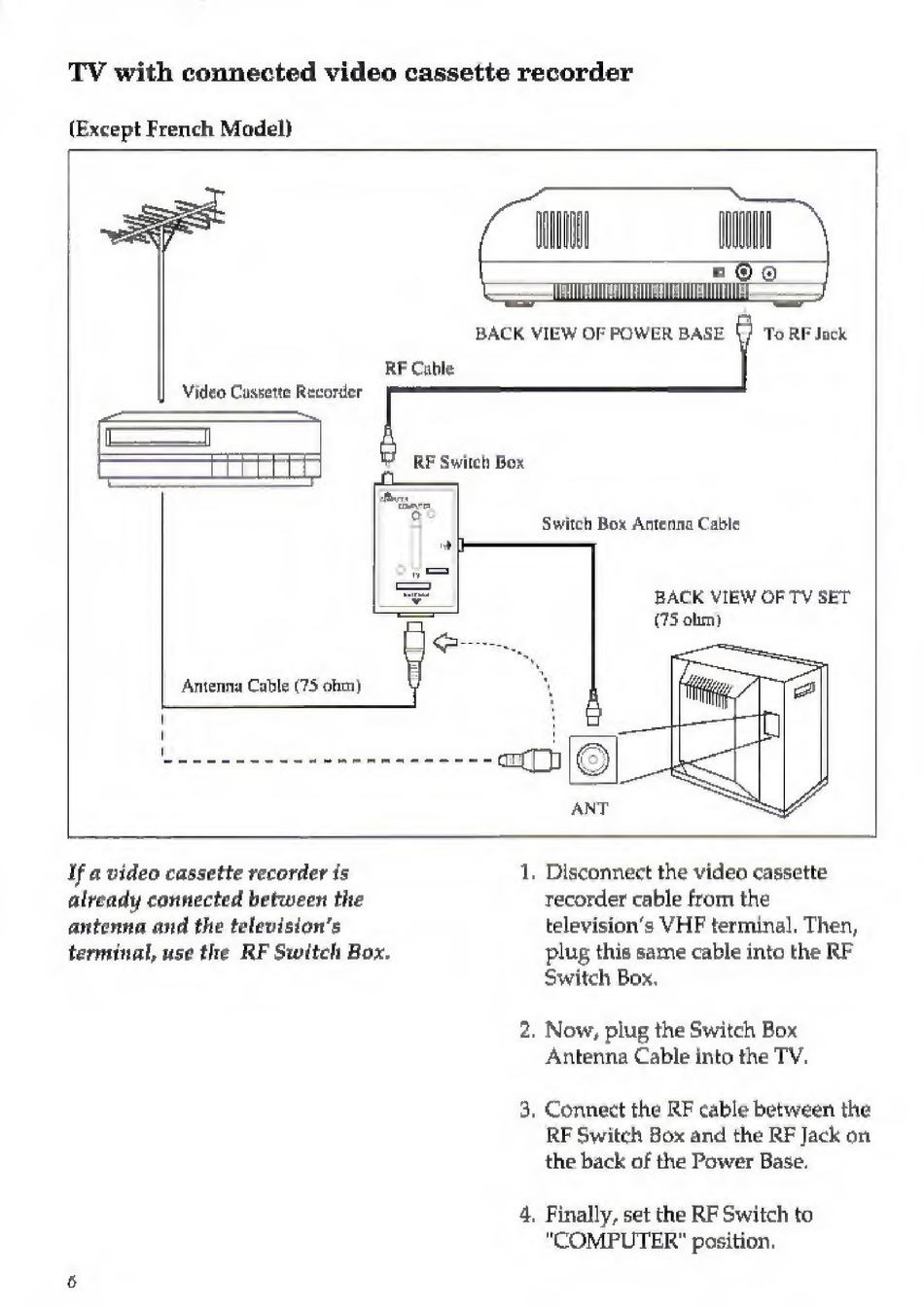

TV with connected video cassette recorder
(Except French Model)
ae
Video Cassette Recorder
BACK VIEW OF POWER BASE
RF Cable
RF Switch Box
Antenna Cable (75 ohm)
YL Lu]
"OO
To RF Jack
Switch Box Antenna Cable
BACK VIEW OF TV SET
If a video cassette recorder is
already connected between the
antenna and the television's
terminal, use the RF Switch Box.
ю
ы
=
. Disconnect the video cassette
recorder cable from the
television's VHF terminal. Then,
plug this same cable into the RF
Switch Box.
. Now, plug the Switch Вох
Antenna Cable into the TV.
. Connect the RF cable between the
RF Switch Box and the RF Jack on
the back of the Power Base.
‚ Finally, set the RF Switch to
"COMPUTER" position.
