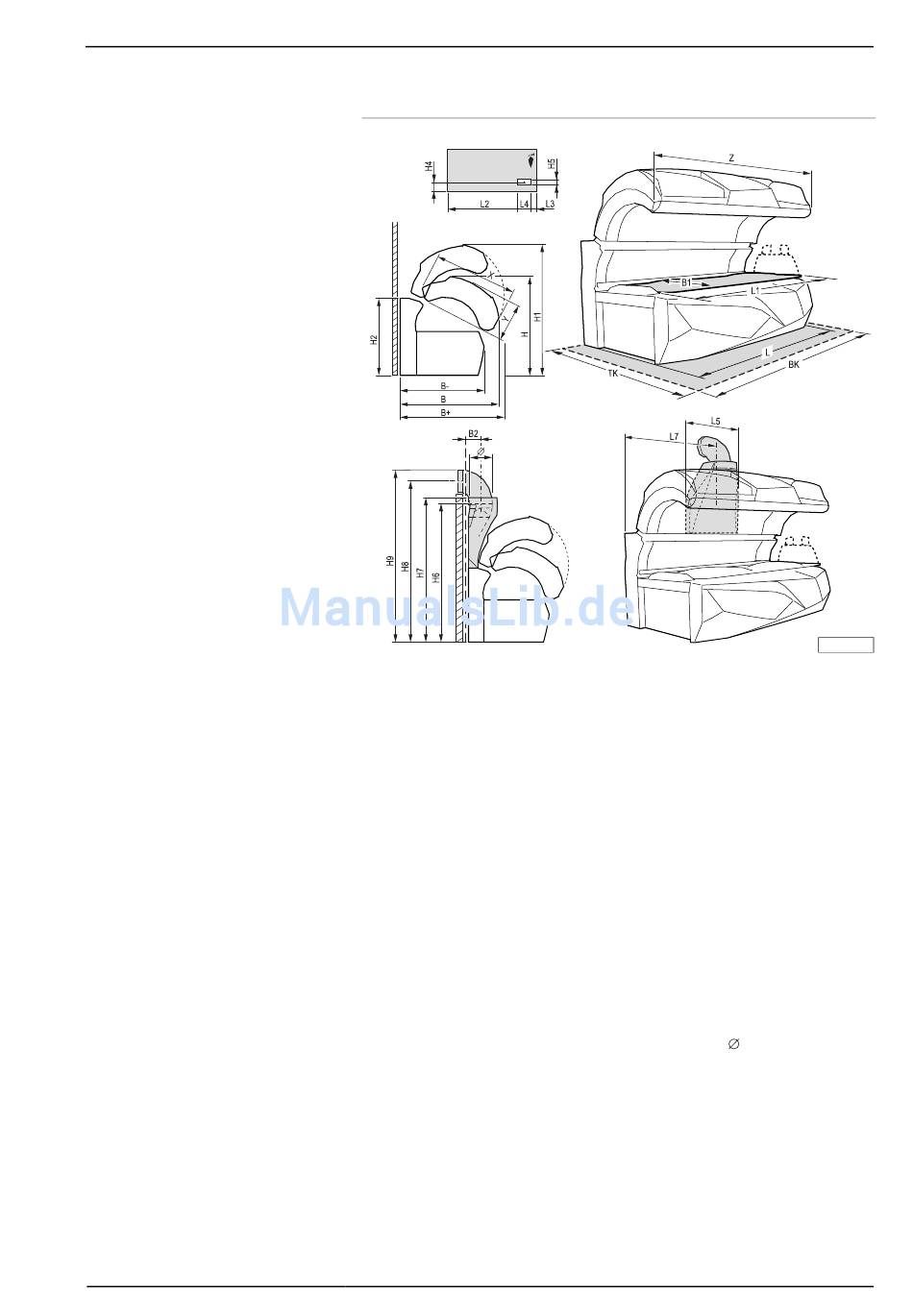

Abmessungen

B + = 1378 mm
B = 1328 mm
B - = 1309 mm
B 1 = 800 mm
B 2 = 188 mm
L + = 2350 mm
L = 2260 mm
L 1 = 2000 mm
L 2 = 1730 mm
L 3 = 238 mm
L 4 = 265 mm
L 5 = 867 mm
L 6 (L7) = 1116 mm
TK = 2300 mm
Technische Daten
17401 / 0
H = 1410 mm
H 1 = 1745 mm
H 2 = 1078 mm
H 4 = 400 mm
H 5 = 114 mm
H 6 = 1887 mm
H 7 = 1974 mm
H 8 = 2197 mm
X 1101 mm
Y 572 mm
Z 2260 mm
300 mm
BK = 2400 mm
