R5 – Installing the machine
Adjusting the air pressure with the com-
pressed air regulator
Setting the air pressure is only necessary if the air pres-
sure shown by the pressure gauge does not lie
between 6 bar (90 psi) and 8 bar (120 psi).

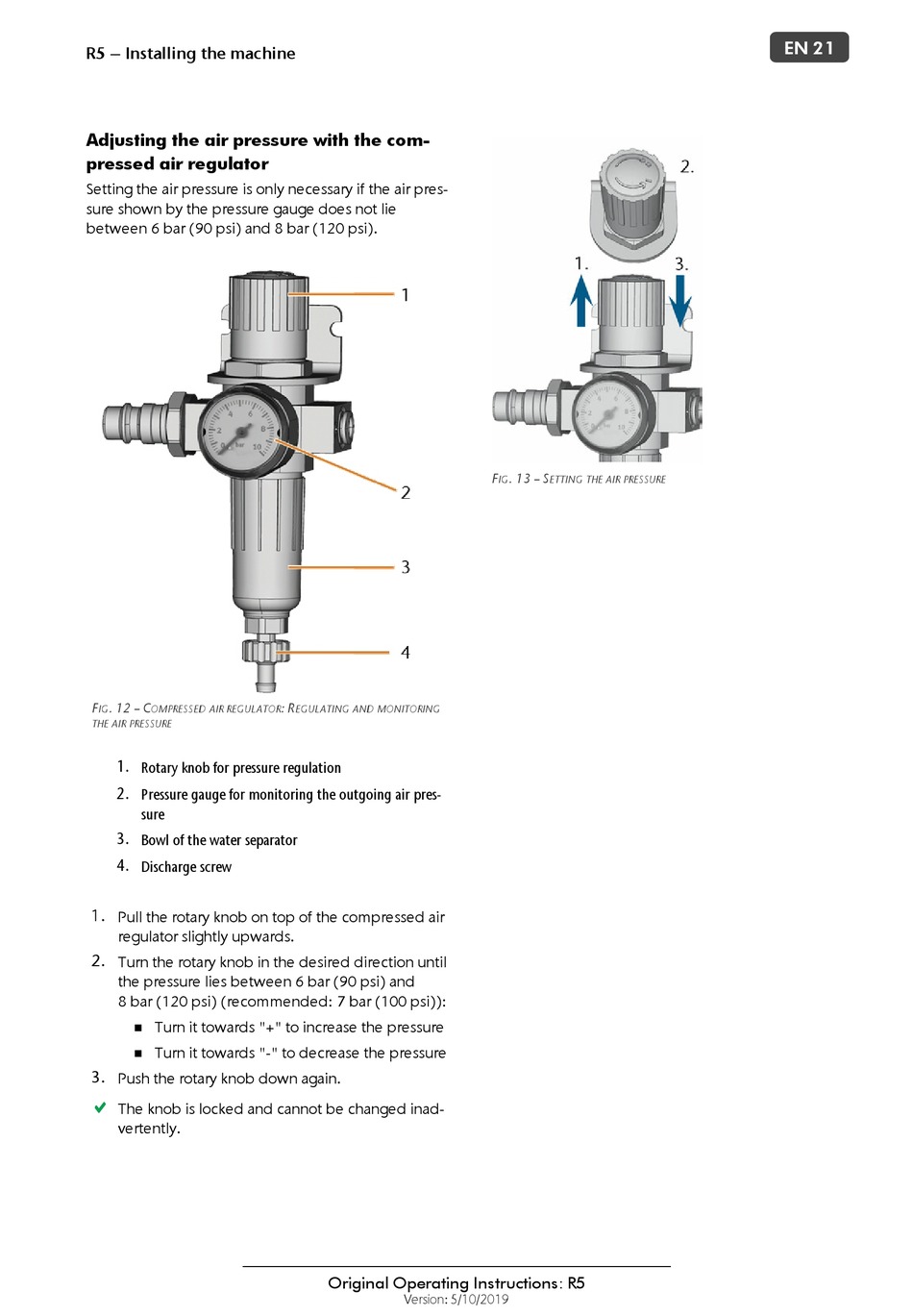

F . 12 – C
IG OMPRESSED AIR REGULATOR
THE AIR PRESSURE
1.
Rotary knob for pressure regulation
2.
Pressure gauge for monitoring the outgoing air pres-
sure
3.
Bowl of the water separator
4.
Discharge screw
1.
Pull the rotary knob on top of the compressed air
regulator slightly upwards.
2.
Turn the rotary knob in the desired direction until
the pressure lies between 6 bar (90 psi) and
8 bar (120 psi) (recommended: 7 bar (100 psi)):
Turn it towards "+" to increase the pressure
n
Turn it towards "-" to decrease the pressure
n
3.
Push the rotary knob down again.
The knob is locked and cannot be changed inad-
vertently.
: R
EGULATING AND MONITORING
Original Operating Instructions: R5
Version: 5/10/2019
