EXTERNAL ANTENNA
The External Antenna with coaxial cable is used to improve reception capacity
of the CONTROLLER in cases where the latter must be mounted in positions
not ideal for the operation of applications based on radio transmissions. It
is connected to the CONTROLLER via an SMA screw connector. The material
needed for fixing is provided in the kit.

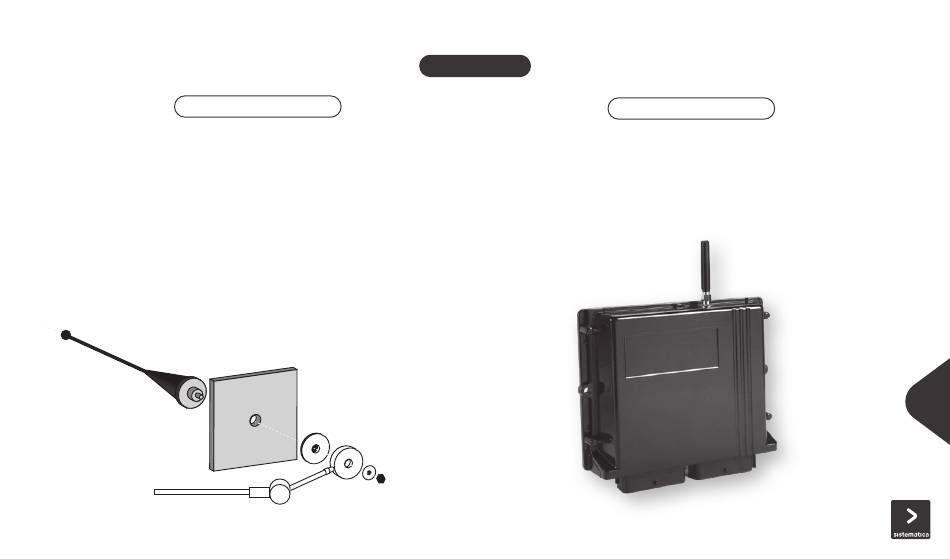

For a correct installation of the External Antenna:
1. Insert the antenna thread on the mounting surface.
2. Insert the insulating rubber on the antenna thread.
3. Insert the cable with the toothed part facing the rubber just inserted on
the antenna thread.
4. Insert the washer and close everything by tightening the nut.
5. Cover everything with the protection on the cable.
ANTENNA
OPTIONS
ASSEMBLY
SURFACE
RUBBER
CABLE
WASHER
NUT
PROTECTION
STUB ANTENNA
The receiver is supplied with an external antenna (STUB) and relative gasket. It
must be mounted on the SMA connector on the CONTROLLER.
For a correct installation procedure:
1. Insert the gasket on the SMA connector thread.
2. Screw the antenna onto the thread of the SMA connector as far as it will
go.
